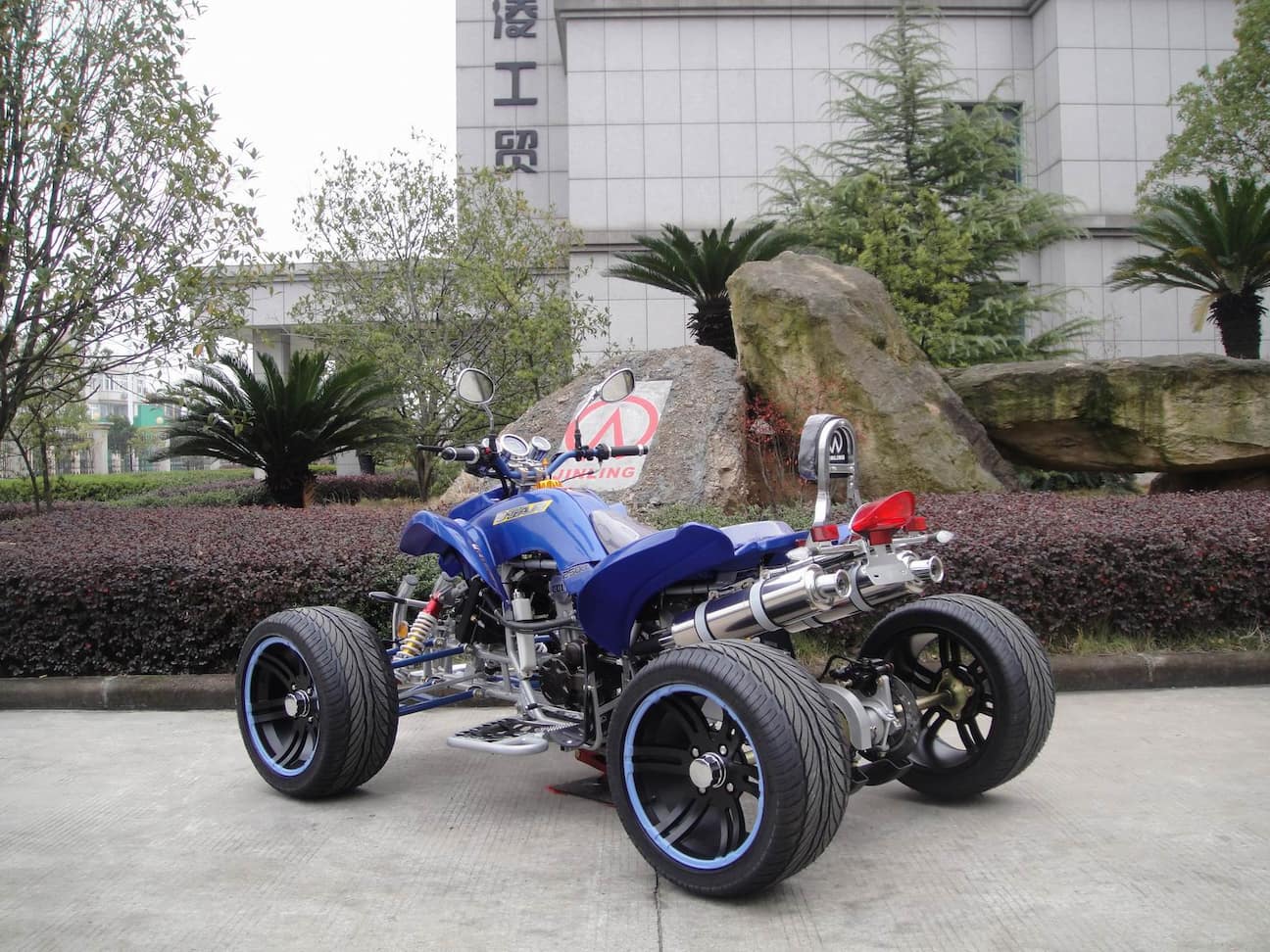

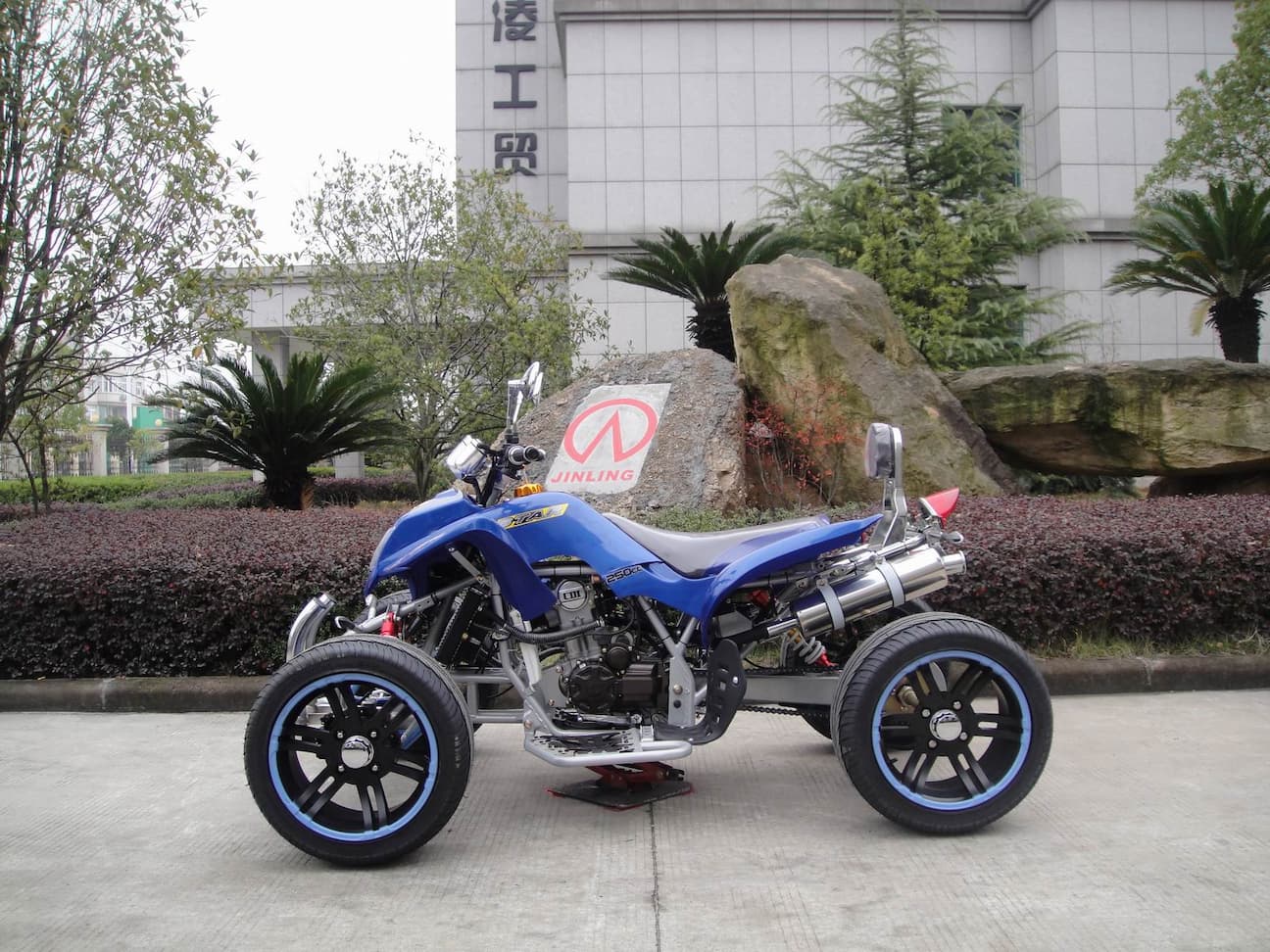

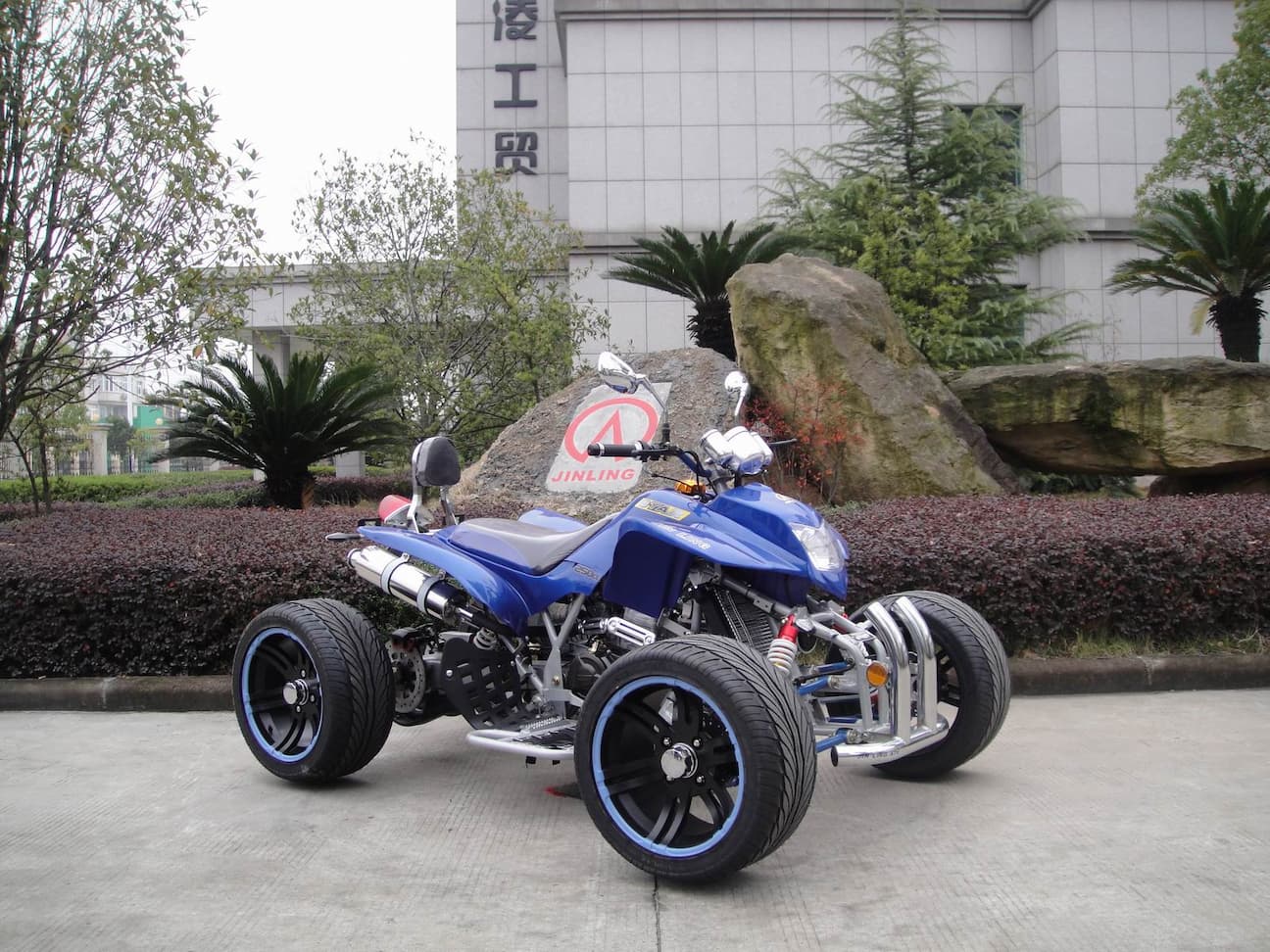

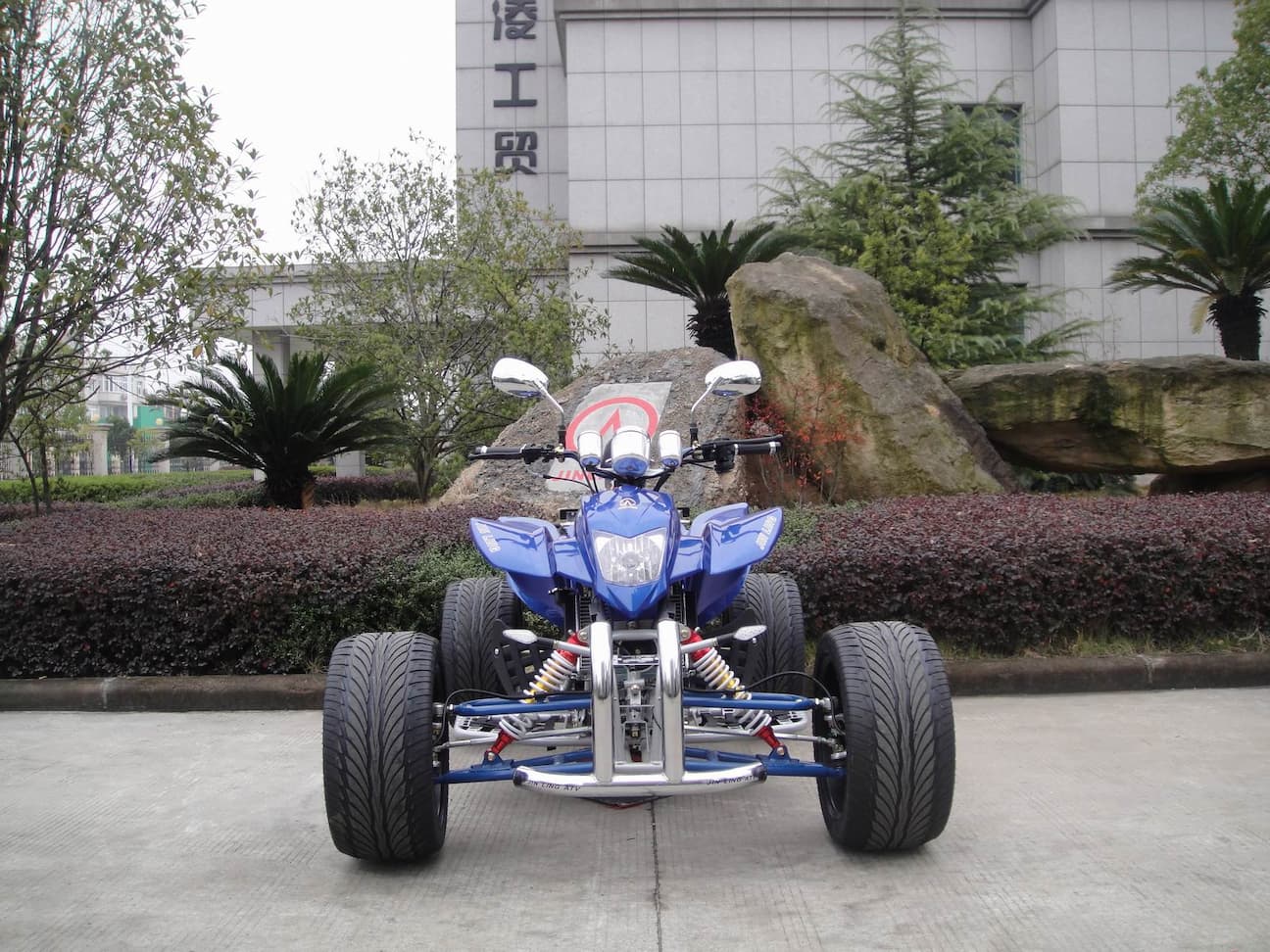

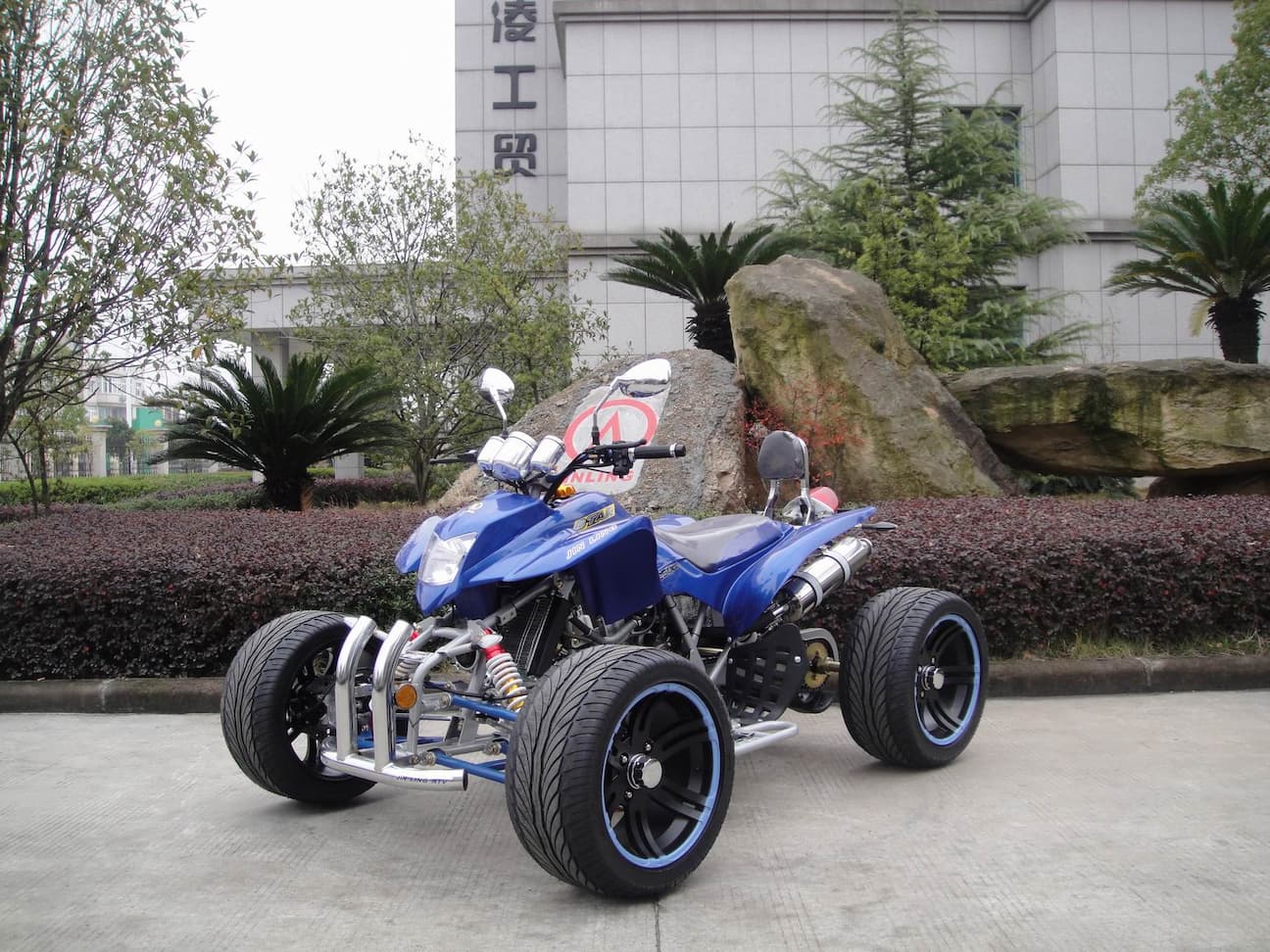

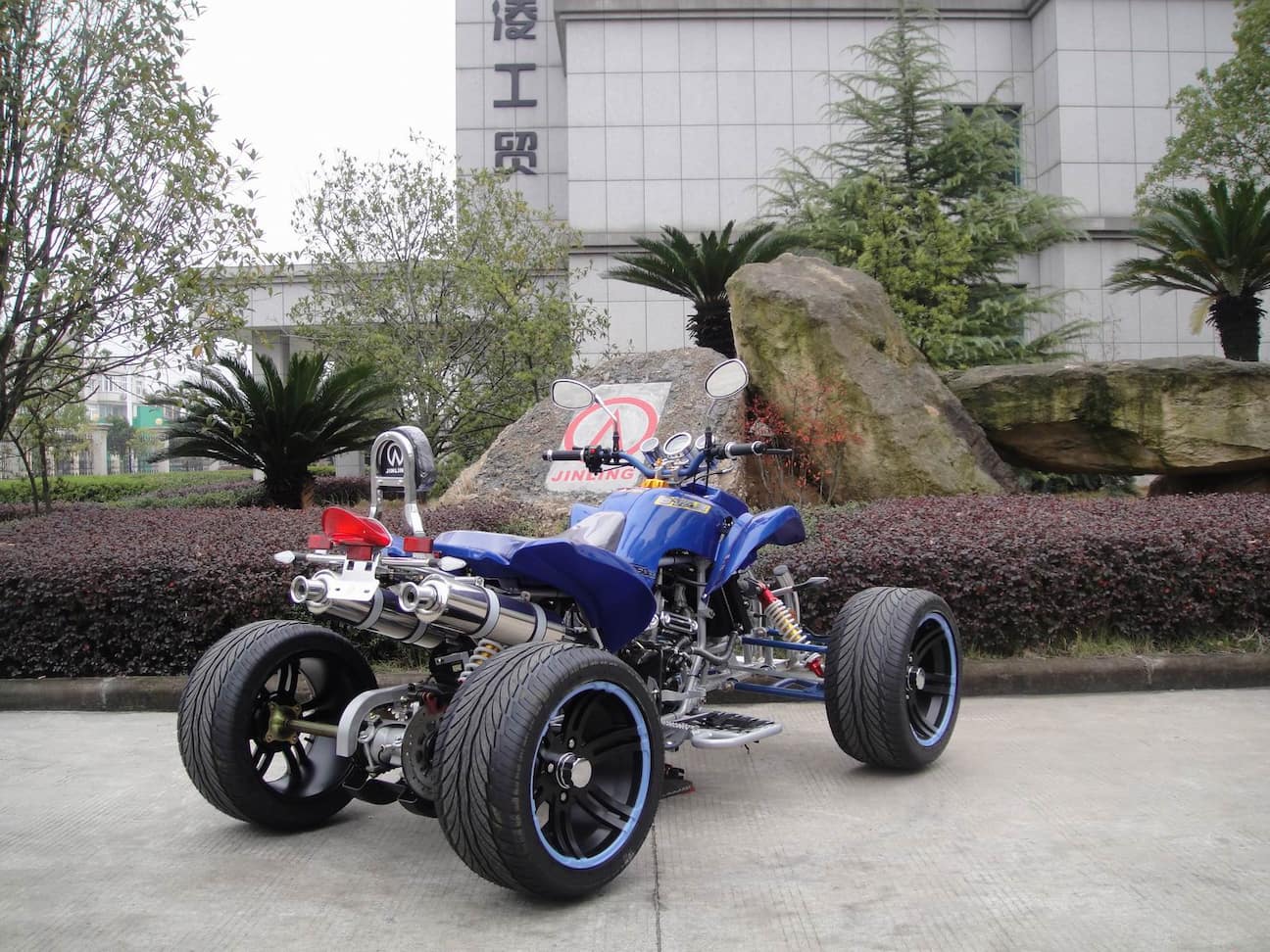

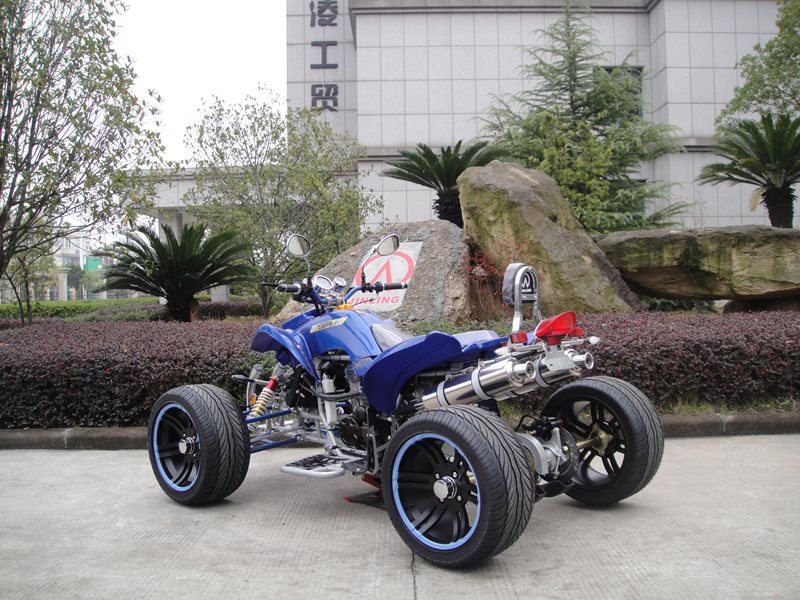

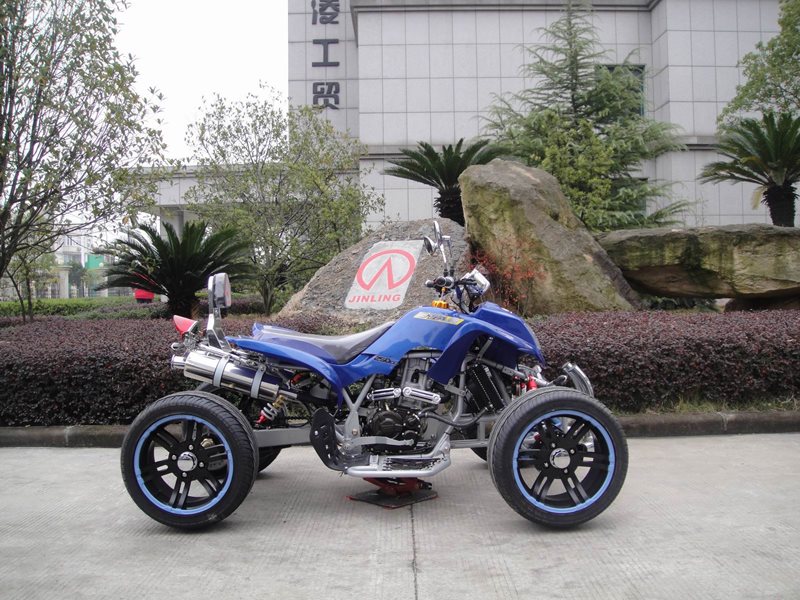

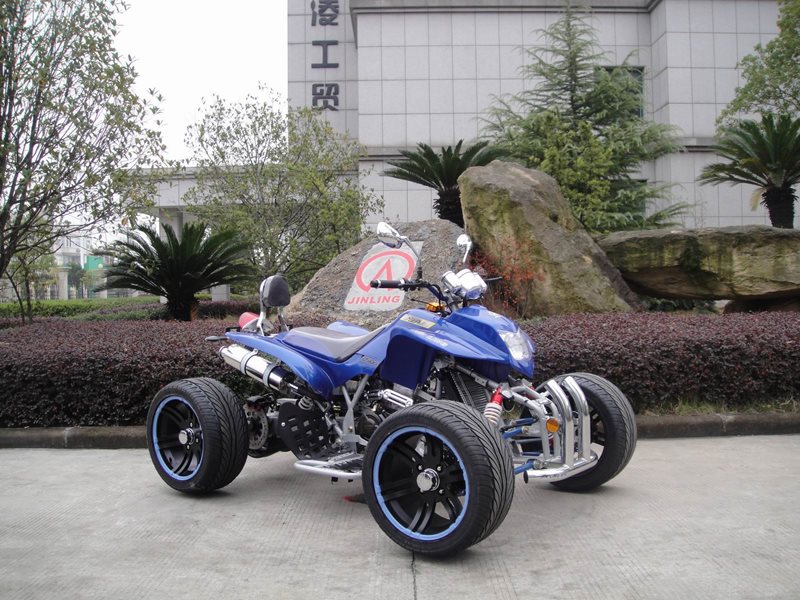

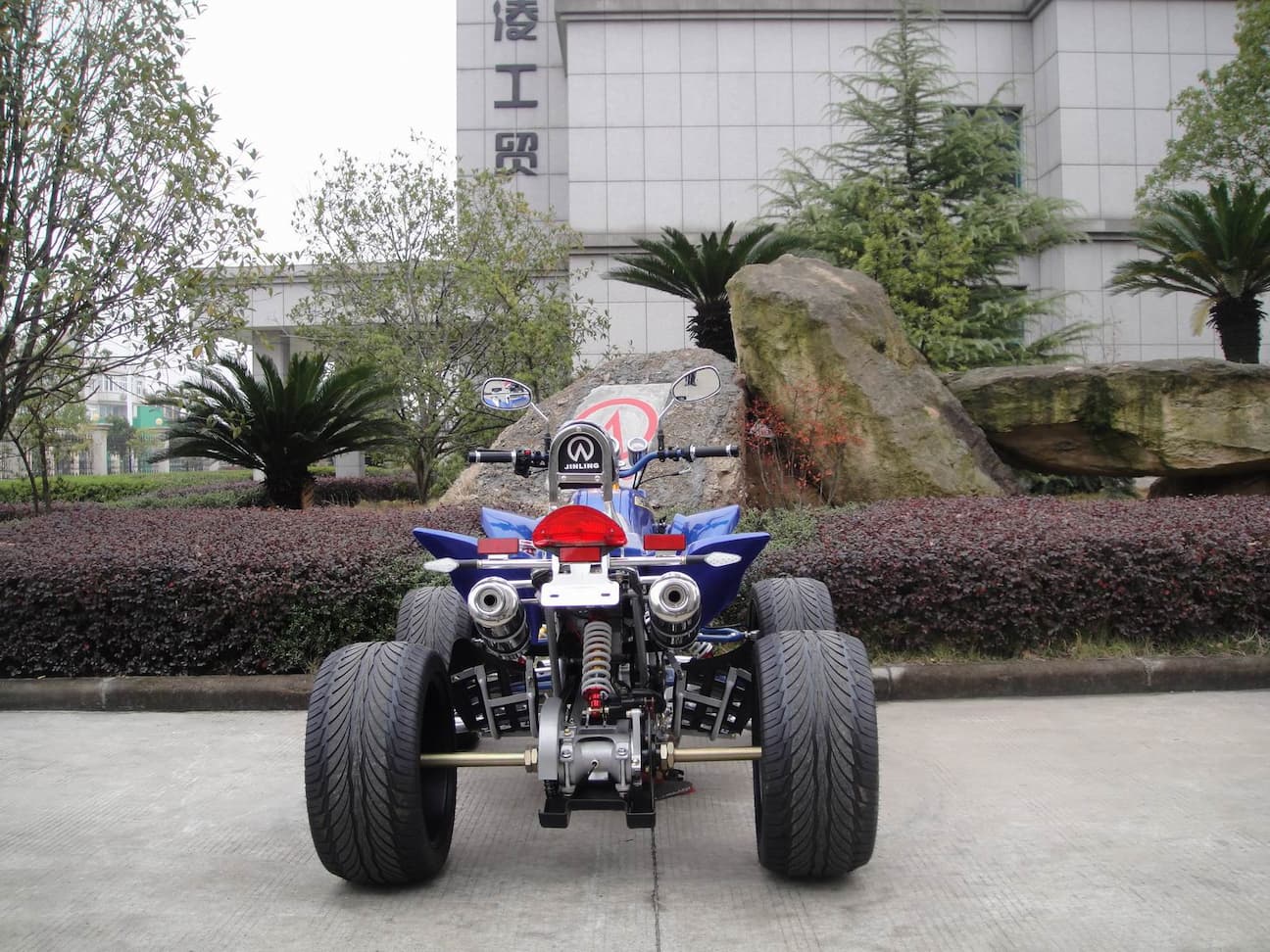

14 Inch Alloy Wheel 250cc Wider Arm Racing ATV QUAD
Essential details
Place of Origin:                    Zhejiang, China
Brand Name:                       JINLING
Model Number:                   JLA-21B-14-250 (L)
Gears:                                   Manual Clutch,4 fowarder gear,1 reverse gear
Wheel Size:                          235/30-14 tire Alloy rim
Fuel tank capacity :             8L
Braking System:                Front disc/ Rear disc
Starting system:                Electric start
Cooled System:                Water Cooled

Max Speed(km/h):             >80







IDENTIFICATION
Model No.: JLA-21B-14-250 (L)
Warranty: one year for engine, 6months for other parts
Model No. in EEC certifcate JLA-21B-250-A-04
ENGINE
Cylinder: Single
Cooled System: Water
Engine Stroke:4 Stroke
Bore*Stroke(mm): 70x64.8mm
Displacement(ml): 249.4(250cc)
Max.power(kw/rpm): 12kw/7500rpm
Max.torque(n.m/rpm): 18.5N.m/6000rpm
Ignition Type: CDI
TRANSMISSION
Transmission Type: Manual Clutch,4 fowarder gear,1 reverse gear
Primary Drive(Rear Wheel): Chain 4x2
Reverse: Yes
Max Speed(km/h): >75
WHEEL
Front wheel: 235/30-14 tire Alloy rim
Rear wheel: 235/30-14 tire Alloy rim
SUSPENSION
Front Suspension: Double Wider A-Swing Arm
Rear Suspension: Swing Arm
BRAKE SYSTEM
Front brake: Disc
Rear brake: Disc
Braking distance: 8m(30km/h)
TECHINCAL SPECIFICATIONS
Product Dimensions(mm): 1900x1305x980mm
Ground Clearance(mm): 800
Wheelbase(mm):1380
Mini Turning Radius(mm): 2800mm
gross weight(kgs): 208
net weight(kgs): 187
Fuel Capacity(L): 8
Fuel consumption: 4.5L/100KM
SEAT
Seat Height(mm): 600
Number of Seats: 2
COLOR
Standard Color: Red/Yellow/Blue/Green/Black/White
Optional Color: Green camo, Yellow camo, Snow Camo, Metallic, Carbon

LOADING
Packing Size(mm): 1700*1120*750 (Steel frame inside, carton outside)
Quantity: 20FT:18PCS, 40HQ:42PCS

Product Details



Our Advantages

Yongkang Jinling Industry & Trade Co.,Ltd. is a professional manufacturer of various ATVs, pocket bikes, dirt bikes, electric&gas scooters,balanace scooters and mini scooters, with rich OEM/ODM experience. Well-equipped testing facilities and strong technical force also lead to such a complete and scientific quality management system. Our professional design team keeps researching and developing new products to provide the best products in this industry, ensuring our products can meet the ever-changing economic and social needs.

We have been exporting e-bikes to USA, European, South America, etc. All of our customers appreciate our quality and service.

Choose Yongkang Jinling, we can give you more

  • # Standardization Production
    Standardization production (in compliance with ISO production and management, in accordance with 6S total management). The service time of product is long, ranking the top in the same trade.
  • # Strong Team
    Our factory has strong production team,research and development team,foreign trade team and after-sale team.Strong research and development ability, good seizing ability of market trend, valued brand image.
  • # Excellent Service
    We ensure to provide high quality products for your satisfaction, Our unmatched service standardsare seen in both our products and our support team

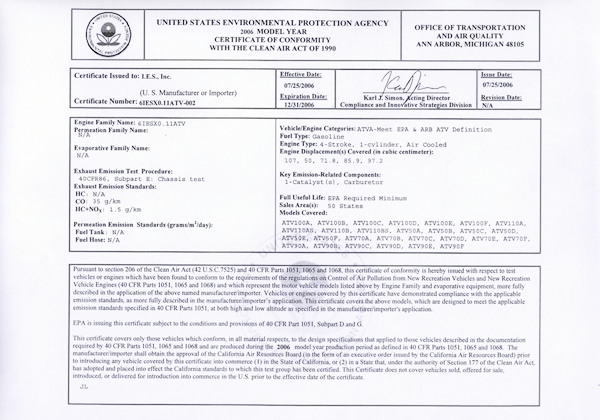

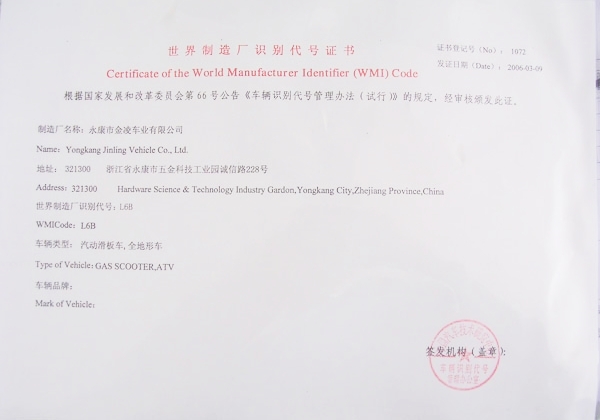

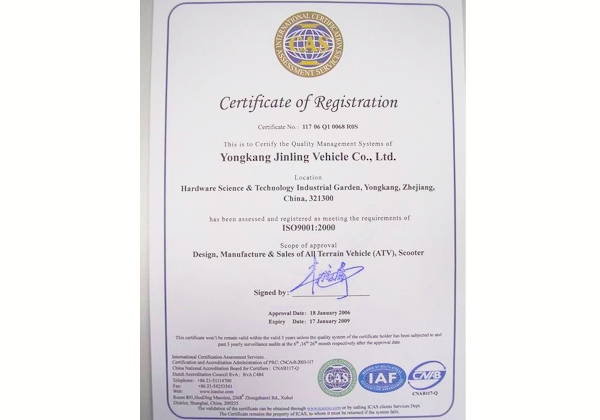

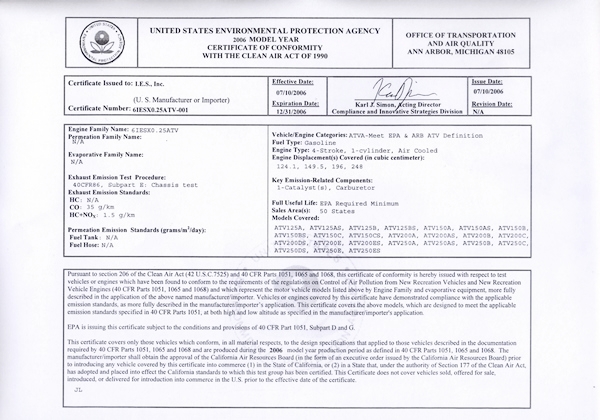

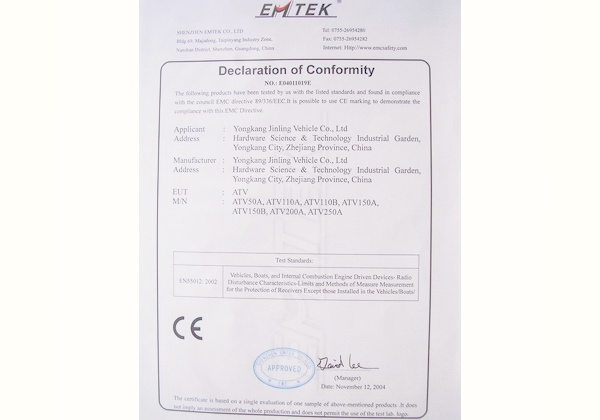

Certificate



FAQ

1. What is the minimum order quantity?

The minimum order quantity is 1x20FT.



2. Can I order a sample?

Yes,You will pay 200 USD as sample fee to cover the extra costs.



3. How about quality warranty ?

our factory can offer 6 months for the plastic covers and 12 months for the engine and the vehicle frame.



4. What is your manufacture capacity?

Our factory manufacture capacity 30x40”HQ per month.150-200pcs one day.



5. What is the production and delivery time?

The production and delivery time is 20-30 days.



6. Can I become your factory products brand agent?

We would like to build agent.For this agent we have the sales quantity per year.the sales quantity must be more than 1000 pieces per year.
