Identification

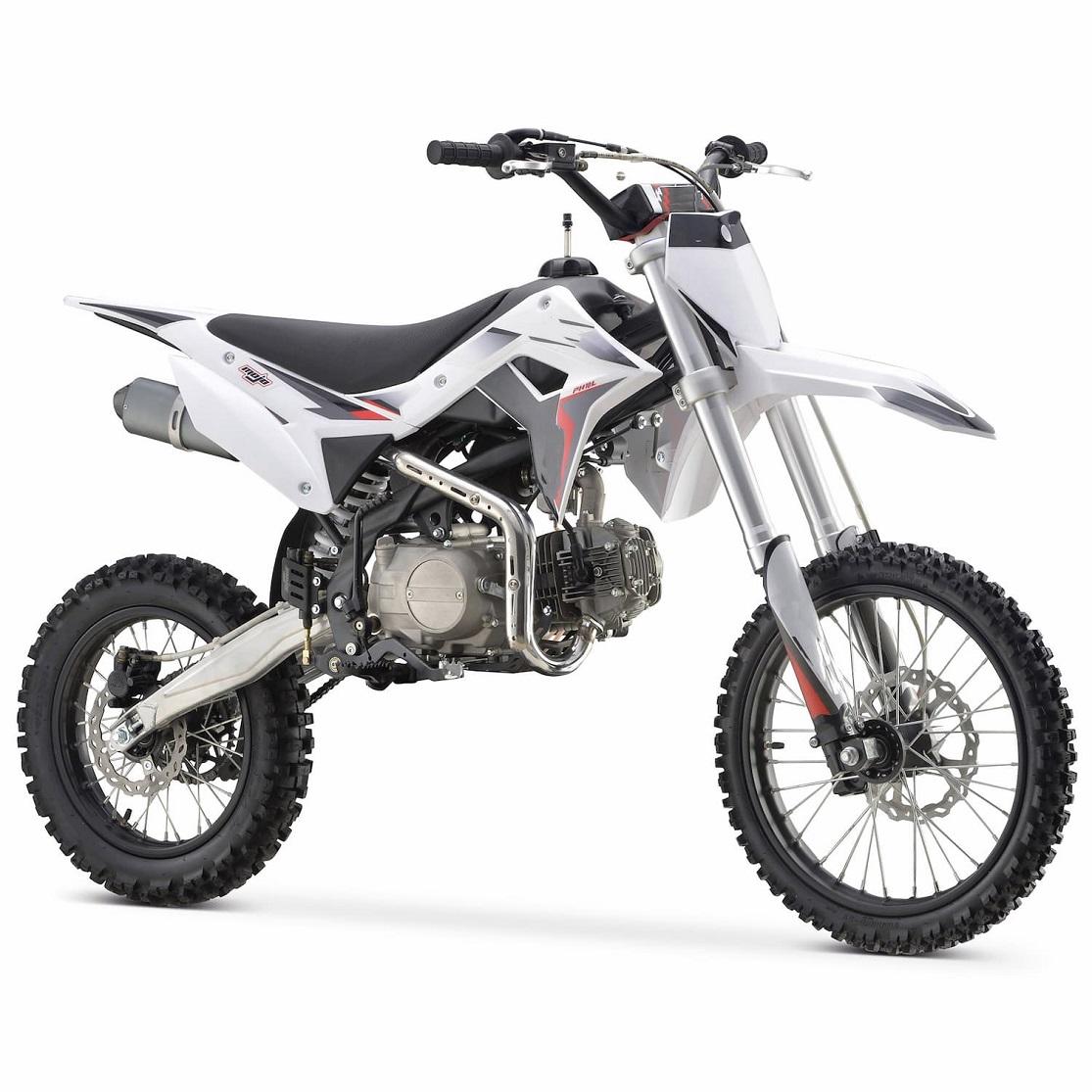

Model No.: PH10L
Warranty: one year for engine, 6months for other parts

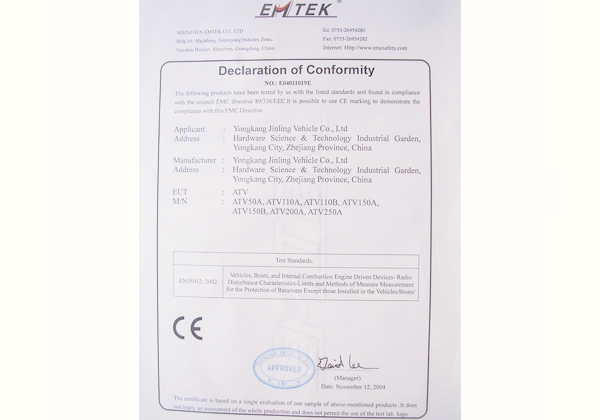

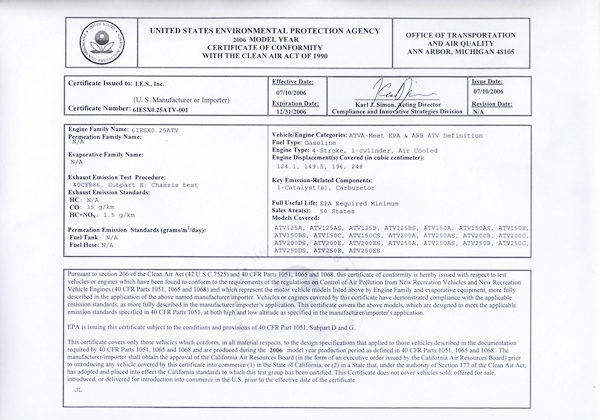

Approval: CE
Seat Height (MM): 790
Clearance (MM): 320
Wheel Base (MM): 1260
Top Speed: 80 KM/H
Recharge Mileage: 150 KM
Size(MM): 1830×800×1130
Packing Size(MM): 1420×430×640
20GP(pcs): 60
40HQ(pcs): 171

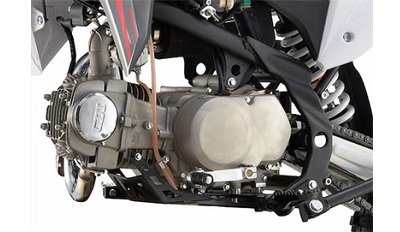

Engine

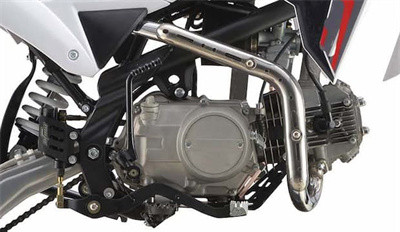

Engine Type: 125CC，kick start ，air cooled, 4-stroke
Bore X Stroke(mm): 52.4*57.9mm
Expression Rate: 8.8:1
Max Power: 6.5KW/7000r/min
Max Torque: 9.0N.m/5000r/min
Transmission: 4 speed
Ignition: CDI
Carburetor: PZ26
Chain/Sprocket: 420-15/420-41
Chassis
Fuel Capacity: 5.2L

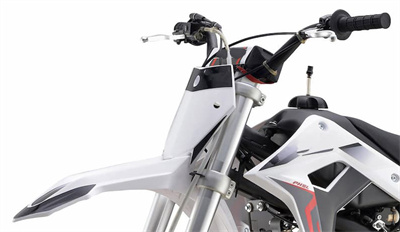

Handle Bar: steel, fat type Ф28.5
Triple Clamp: Forged alloy, 6061
Frame: cast steel and formed steel pipe

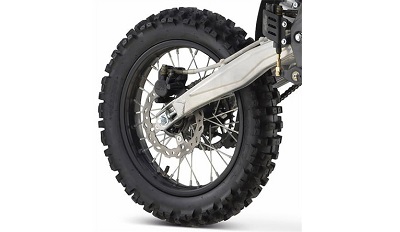

Swing Arm: formed steel, knife shape, 14inches
Suspension: Front fork :45/48-770mm
Rear shock:325mm , inner air box
Disc Brake: disc brake，disc size, front: 220mm,rear:190mm
Wheel: Steel rim, front:1.6-17/rear:1.85-14
Tire: Tire size: front:70/100-17 /Rear 90/100-14
Dimensions
Max Loading: 75kg
Seat Height: 830mm
Wheel Base: 1260mm
Clearance: 320mm
Dimession: 1830*800*1130mm
Net Weight: 80±1KG
Package Size: 1620X385X760mm
Gross Weight: 93±2KG

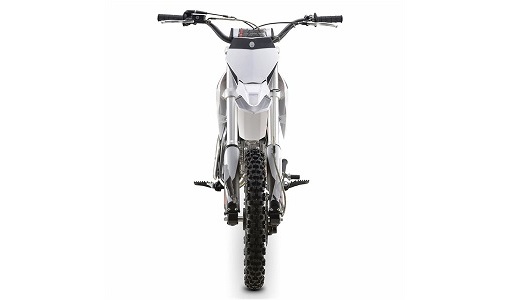

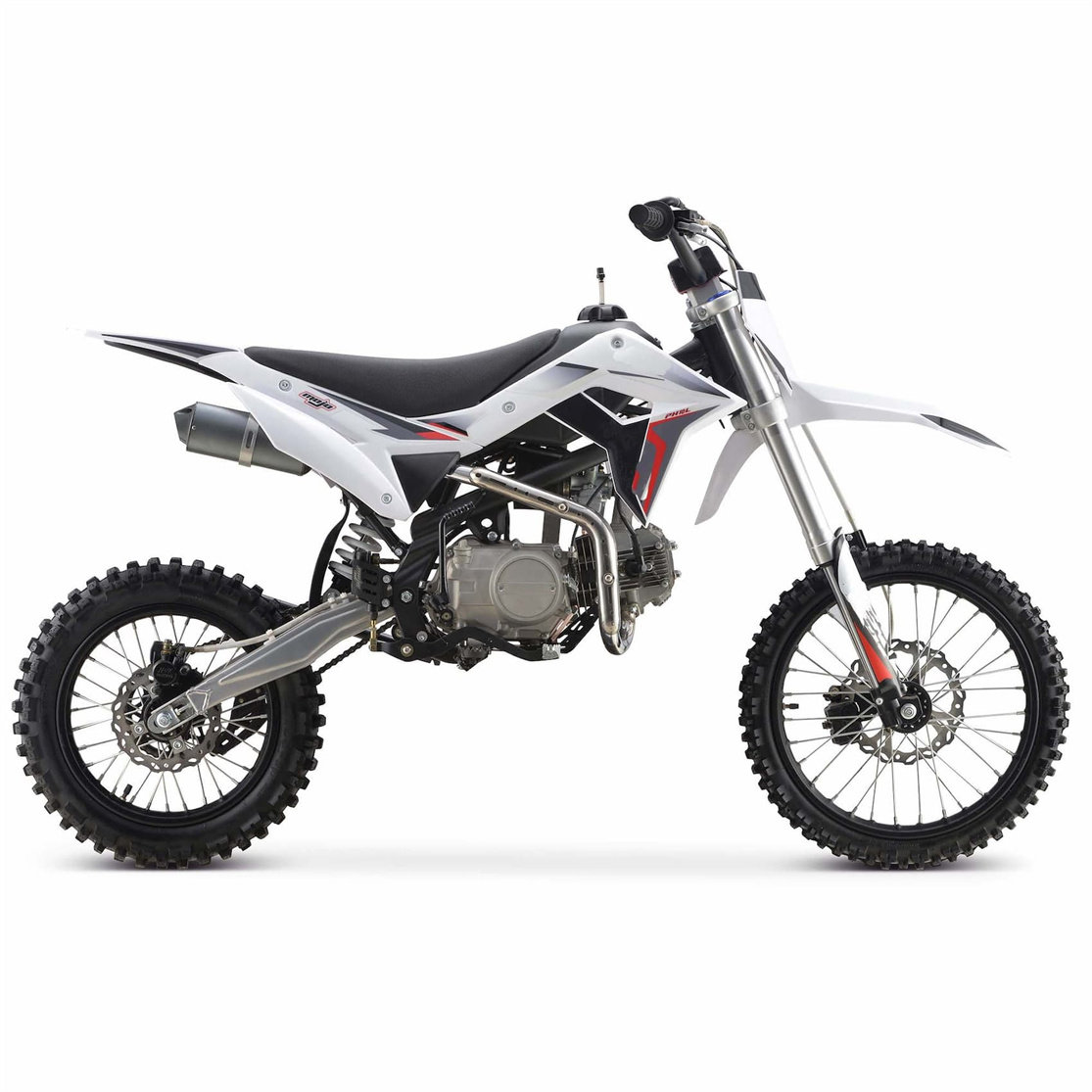

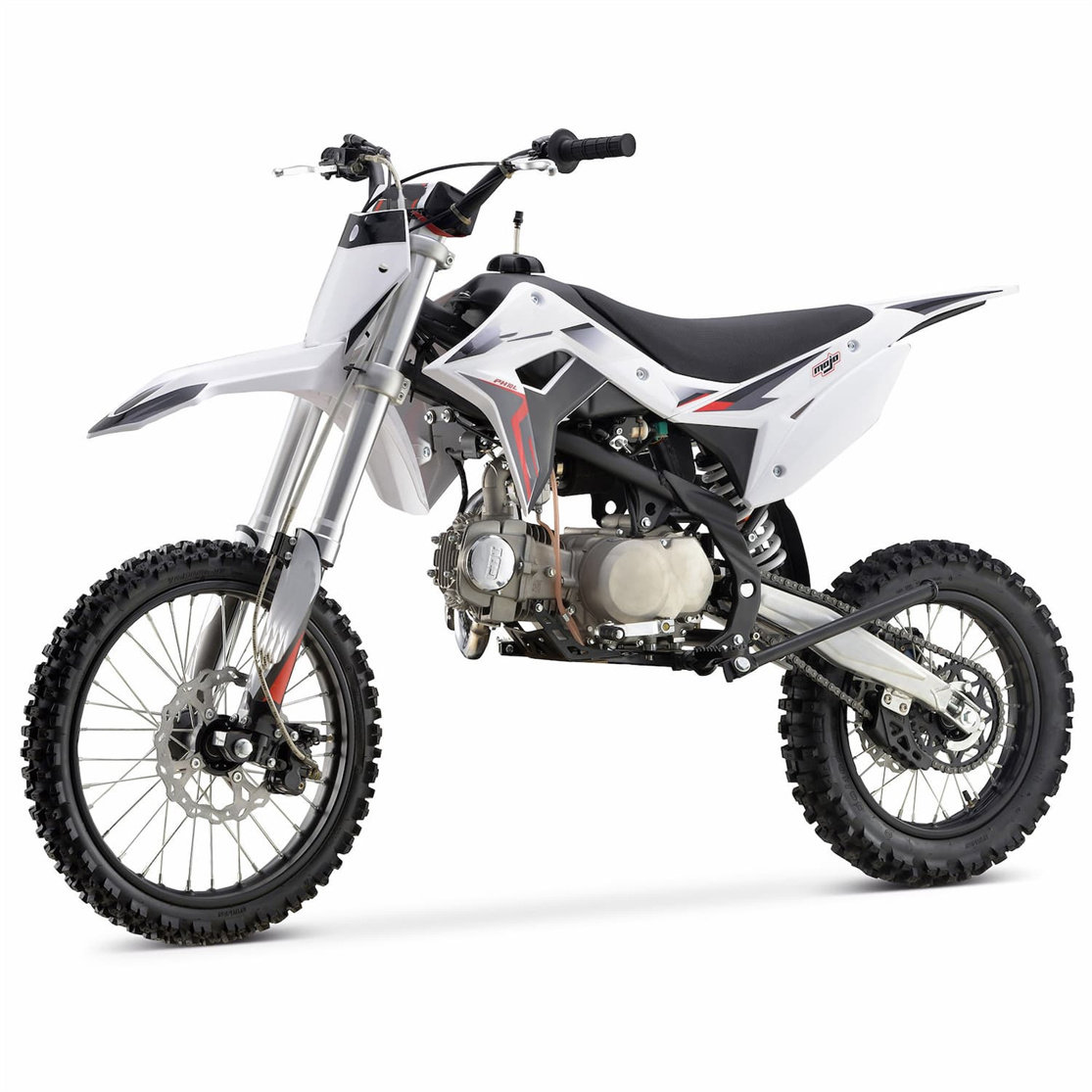

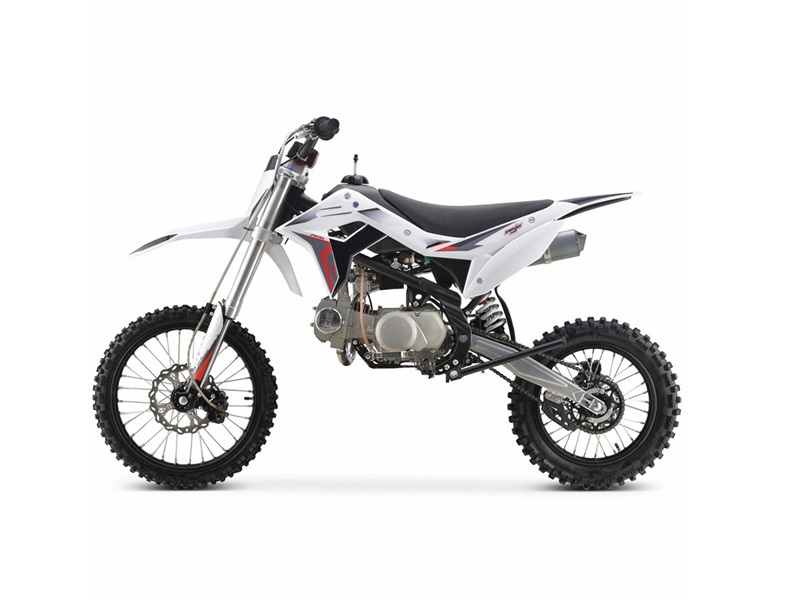

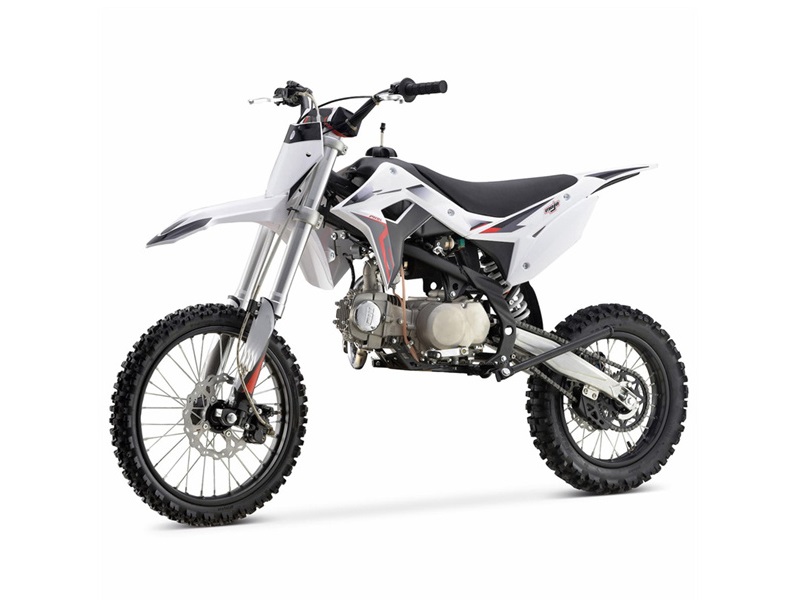

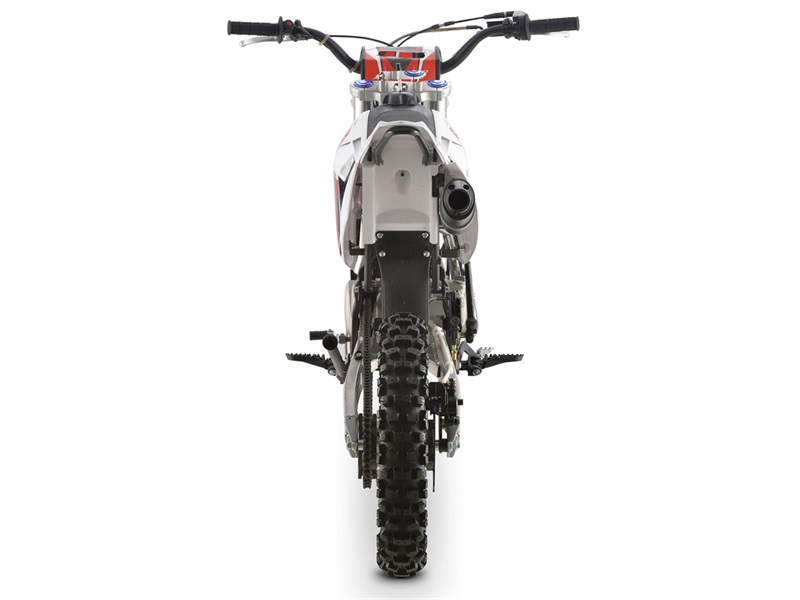

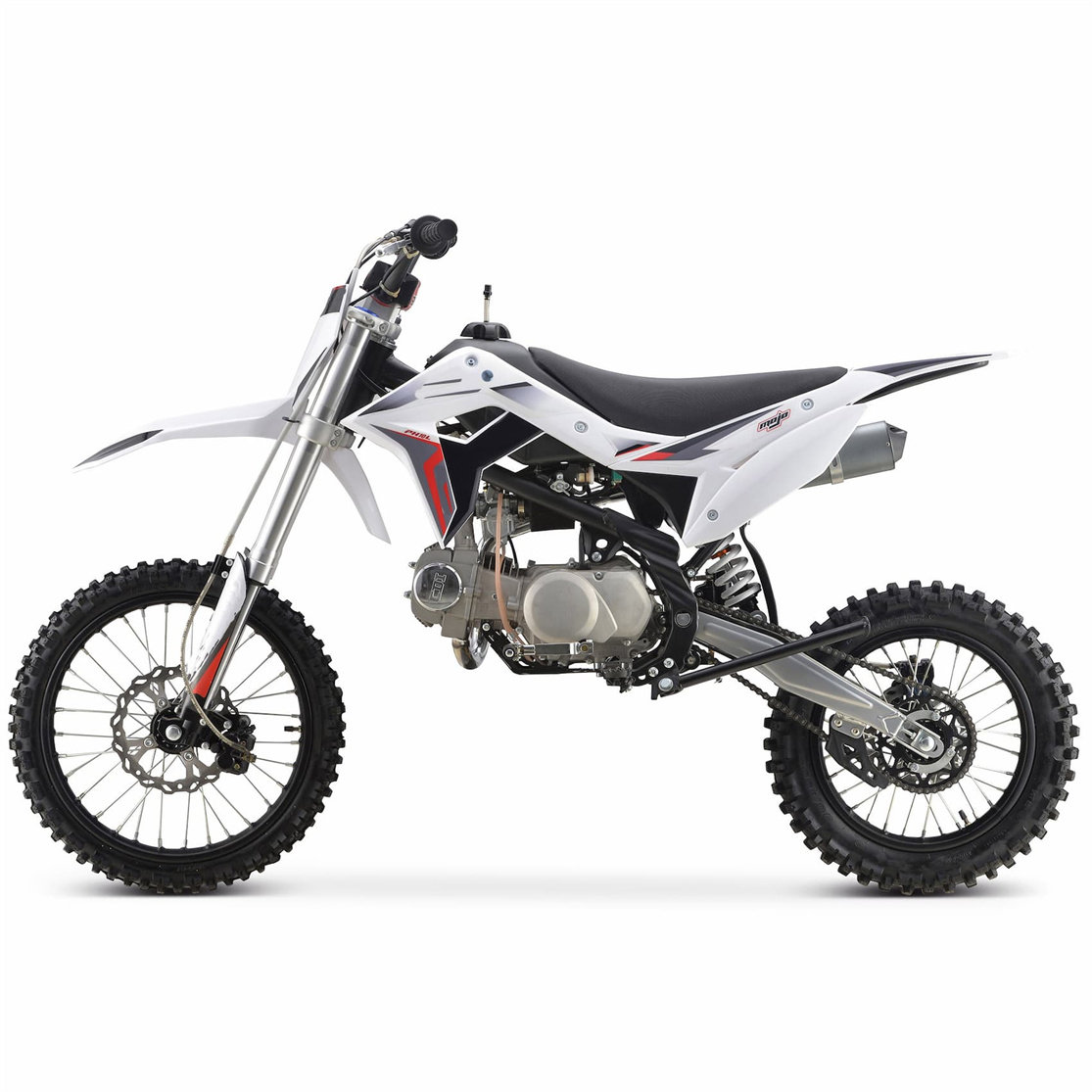

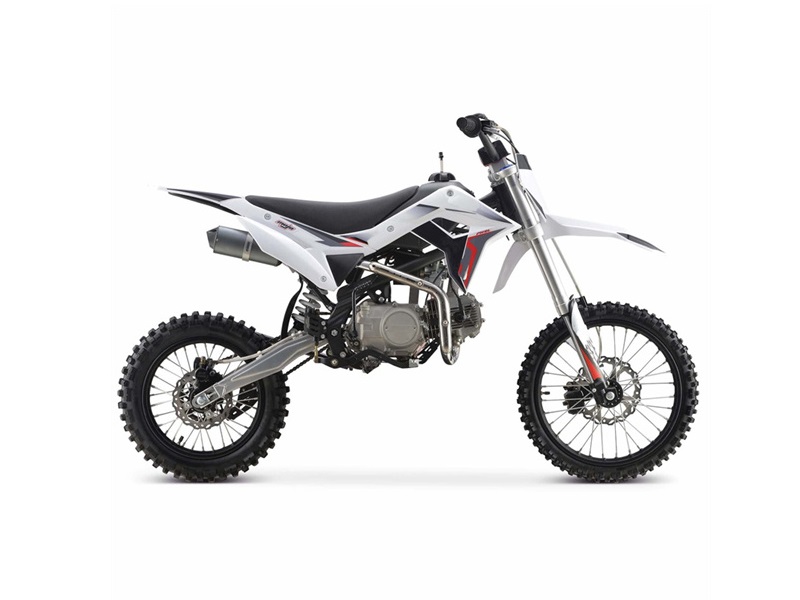

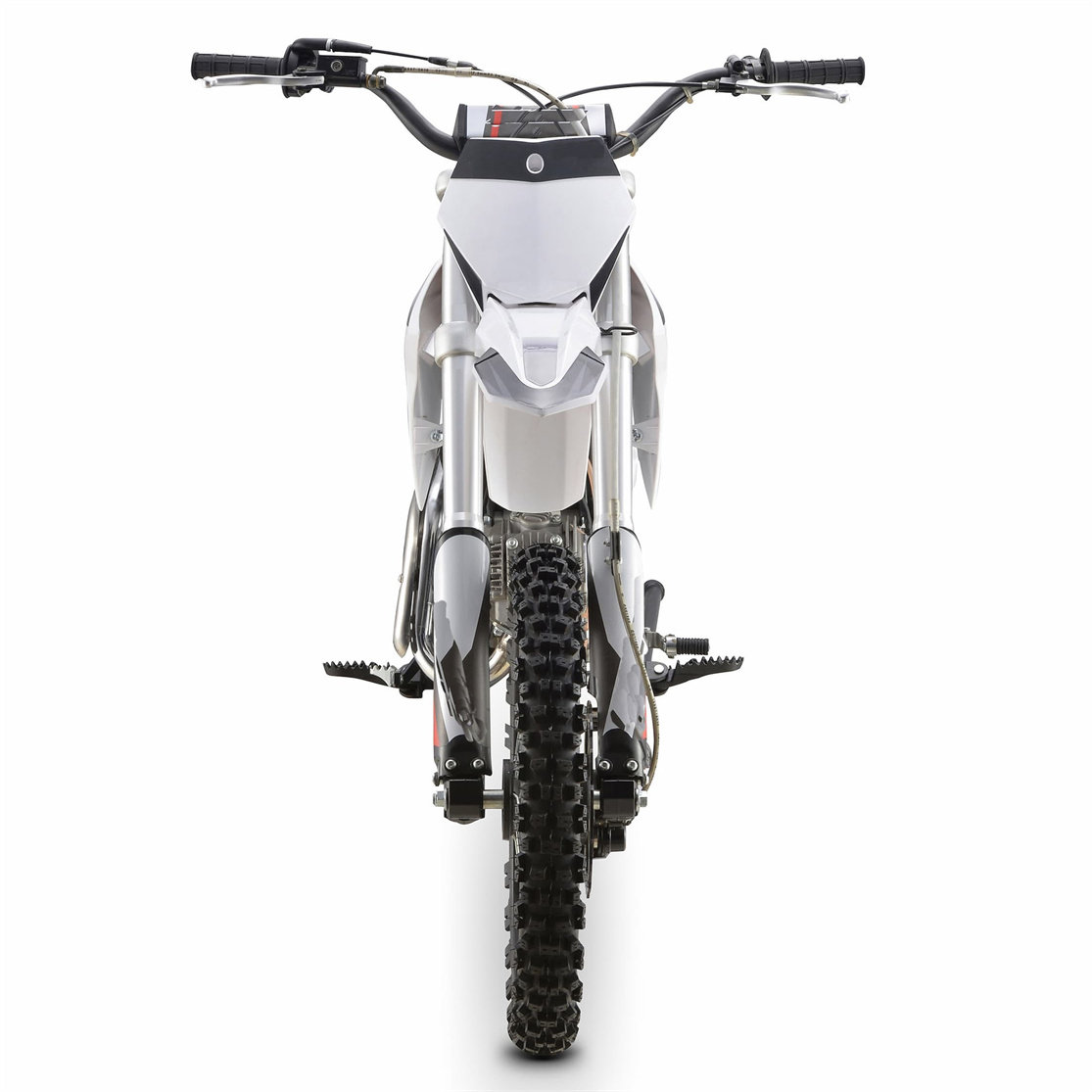

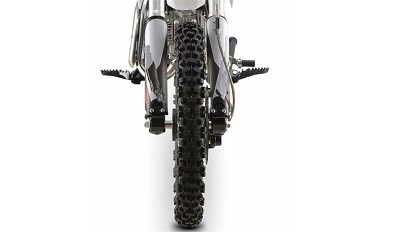

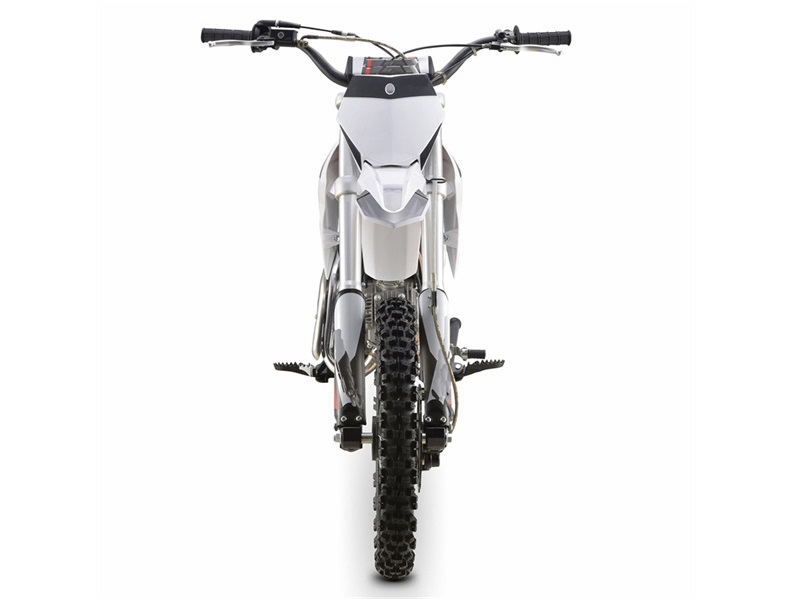

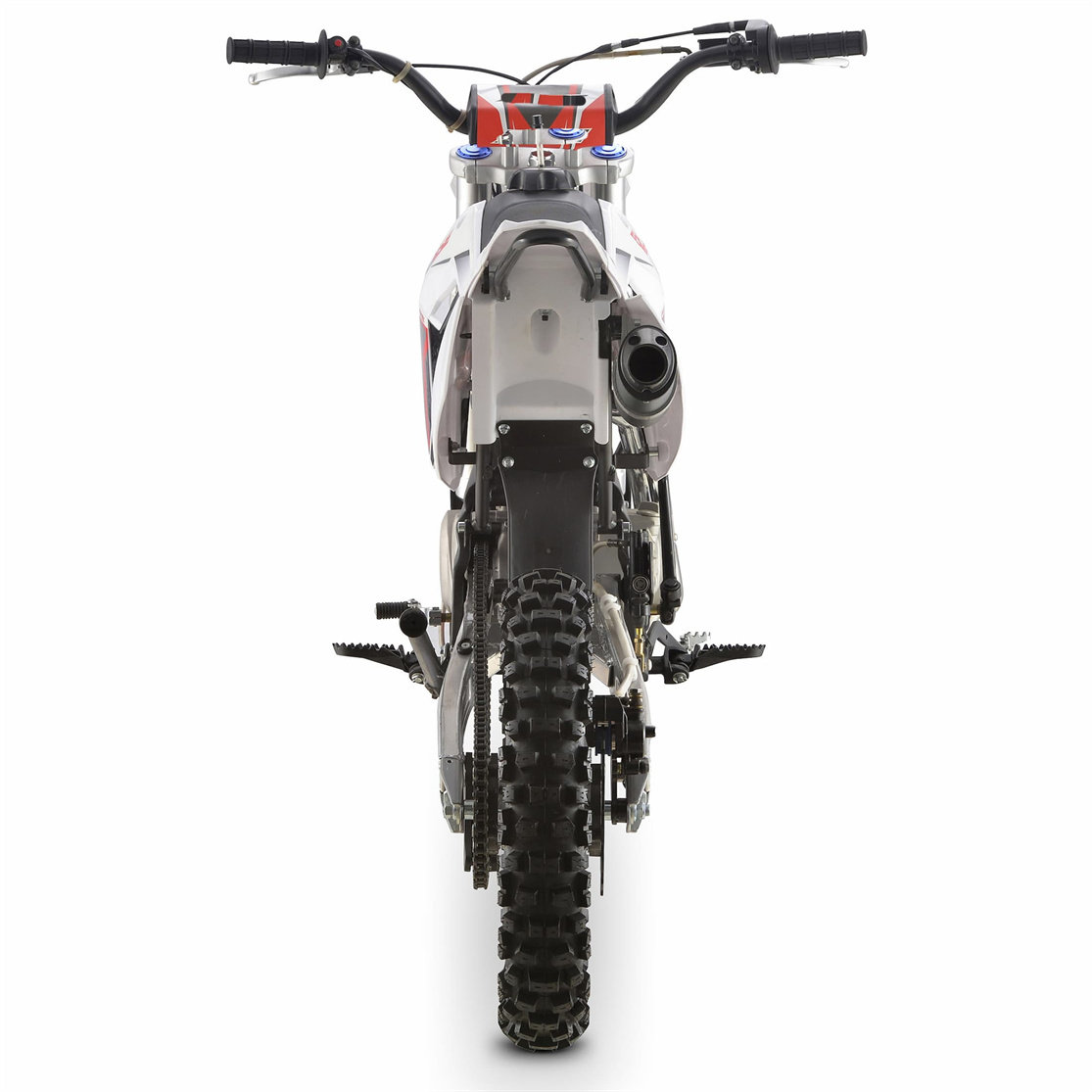

Product Details
 |
 |
 |
 |
 |
 |
Our Advantages
Yongkang Jinling Industry & Trade Co.,Ltd. is a professional manufacturer of various ATVs, pocket bikes, dirt bikes, electric&gas scooters,balanace scooters and mini scooters, with rich OEM/ODM experience. Well-equipped testing facilities and strong technical force also lead to such a complete and scientific quality management system. Our professional design team keeps researching and developing new products to provide the best products in this industry, ensuring our products can meet the ever-changing economic and social needs.
We have been exporting e-bikes to USA, European, South America, etc. All of our customers appreciate our quality and service.
Choose Yongkang Jinling, we can give you more
Standardization Production
Strong Team
Excellent Service
Packing
FAQ
1. What is the minimum order quantity?
The minimum order quantity is 1x20FT.
2. Can I order a sample?
Yes,You will pay 200 USD as sample fee to cover the extra costs.
3. How about quality warranty ?
our factory can offer 6 months for the plastic covers and 12 months for the engine and the vehicle frame.
4. What is your manufacture capacity?
Our factory manufacture capacity 30x40”HQ per month.150-200pcs one day.
5. What is the production and delivery time?
The production and delivery time is 20-30 days.
6. Can I become your factory products brand agent?
We would like to build agent.For this agent we have the sales quantity per year.the sales quantity must be more than 1000 pieces per year.
