IDENTIFICATION
Model No.: JLA-09
Warranty: One year for engine, 6 months for other parts
Approval: CE
ENGINE
Cylinder: Single
Cooled System: Air
Engine Stroke: 4 Stroke
Bore*Stroke(mm): 47×49.5mm
Displacement(ml): 50cc 70cc 90cc 110cc,4 storke
Max.power(kw/rpm): 3.0Kw/7500rpm/ ,3.2kw/8500rpm,3.3kw/7500rpm,3.6kw/7500rpm,
Max.torque(n.m/rpm): 4.2Nm/5000rpm , 4.3Nm/5000rpm, 5.2Nm/5000rpm, 5.5Nm/5000rpm
Ignition Type:CDI
TRANSMISSION
Transmission Type: Automatic,chain

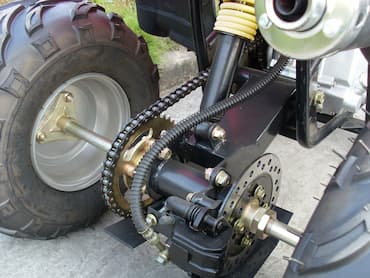

Primary Drive(Rear Wheel): Chain 4x2
Reverse: No
Max Speed(km/h): ≥50
WHEEL
Front wheel: 145/70-6
Rear wheel: 145/70-6
SUSPENSION
Front Suspension: Double A-Swing Arm
Rear Suspension: Mono Shock Swing Arm
BRAKE SYSTEM
Front brake: None
Rear brake: Disc
Braking distance: 8m(30km/h)
TECHINCAL SPECIFICATIONS
Product Dimensions(mm): 1410x800x800mm
Ground Clearance(mm): 100mm
Wheelbase(mm): 880mm
Mini Turning Radius(mm): 2800mm
Gross weight(kgs): 88
Net weight(kgs): 76
Fuel Capacity(L): 3.2
Fuel consumption: 2.8L/100KM
SEAT
Seat Height(mm): 600
Number of Seats: 1
COLOR
Standard ColorRed/Yellow/Blue/Green/Black/White
Optional ColorGreen camo,Yellow camo,Snow Camo,Metallic,Carbon
LOADING
Packing Size(mm): 1160x750x650 (Steel frame inside,carton outside)
Quantity: 20FT:45PCS; 40FT:96PCS; 40HQ:128PCS
Product Details
|
|
|
|
Our Advantages
Yongkang Jinling Industry & Trade Co.,Ltd. is a professional manufacturer of various ATVs, pocket bikes, dirt bikes, electric&gas scooters,balanace scooters and mini scooters, with rich OEM/ODM experience. Well-equipped testing facilities and strong technical force also lead to such a complete and scientific quality management system. Our professional design team keeps researching and developing new products to provide the best products in this industry, ensuring our products can meet the ever-changing economic and social needs.
We have been exporting e-bikes to USA, European, South America, etc. All of our customers appreciate our quality and service.
Choose Yongkang Jinling, we can give you more
Standardization Production
Strong Team
Excellent Service
Packing
FAQ
1. What is the minimum order quantity?
The minimum order quantity is 1x20FT.
2. Can I order a sample?
Yes,You will pay 200 USD as sample fee to cover the extra costs.
3. How about quality warranty ?
our factory can offer 6 months for the plastic covers and 12 months for the engine and the vehicle frame.
4. What is your manufacture capacity?
Our factory manufacture capacity 30x40”HQ per month.150-200pcs one day.
5. What is the production and delivery time?
The production and delivery time is 20-30 days.
6. Can I become your factory products brand agent?
We would like to build agent.For this agent we have the sales quantity per year.the sales quantity must be more than 1000 pieces per year.
