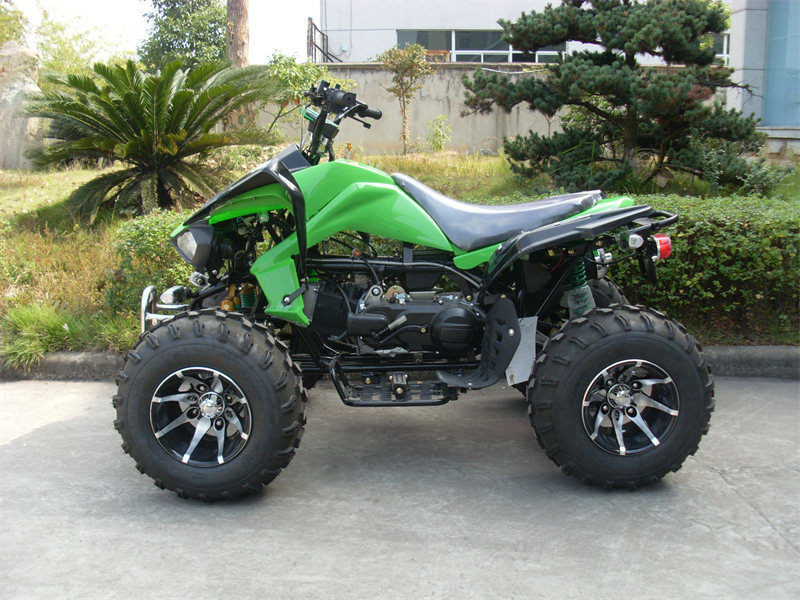

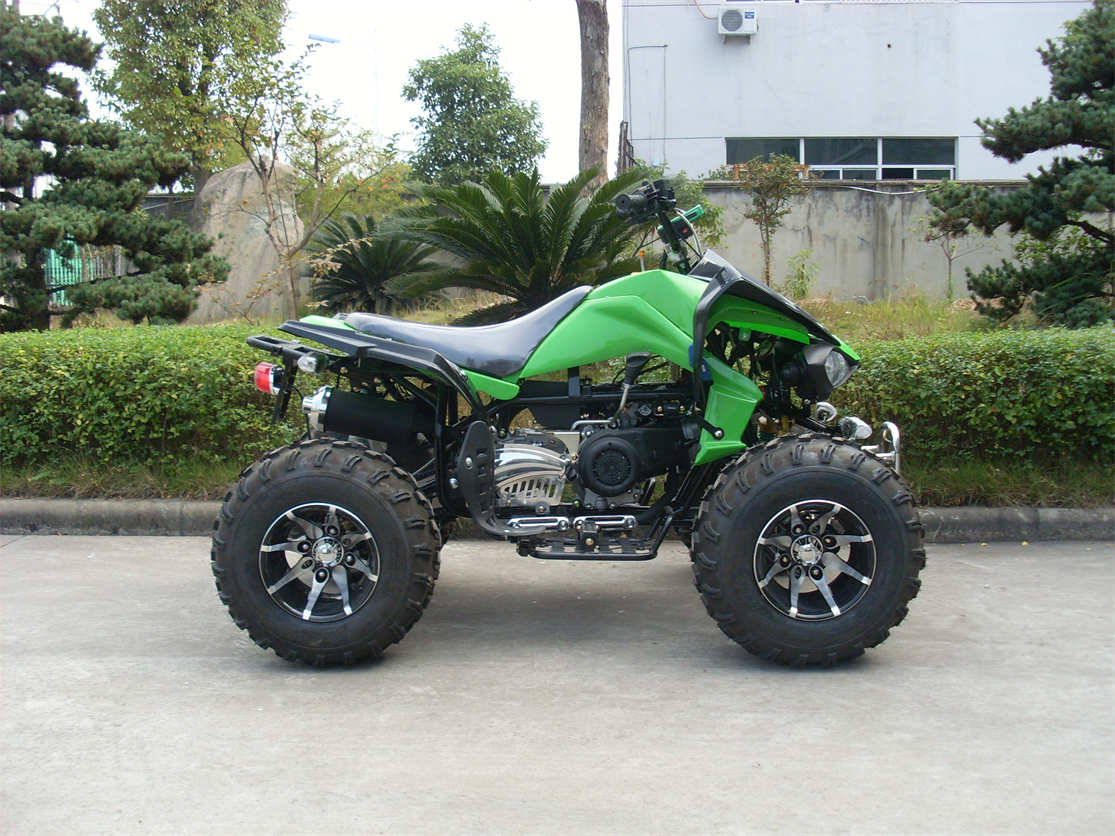

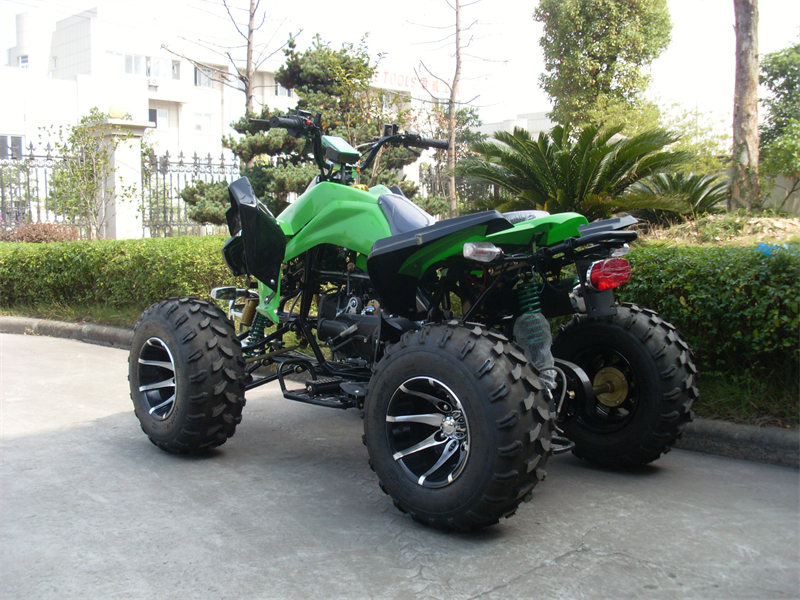

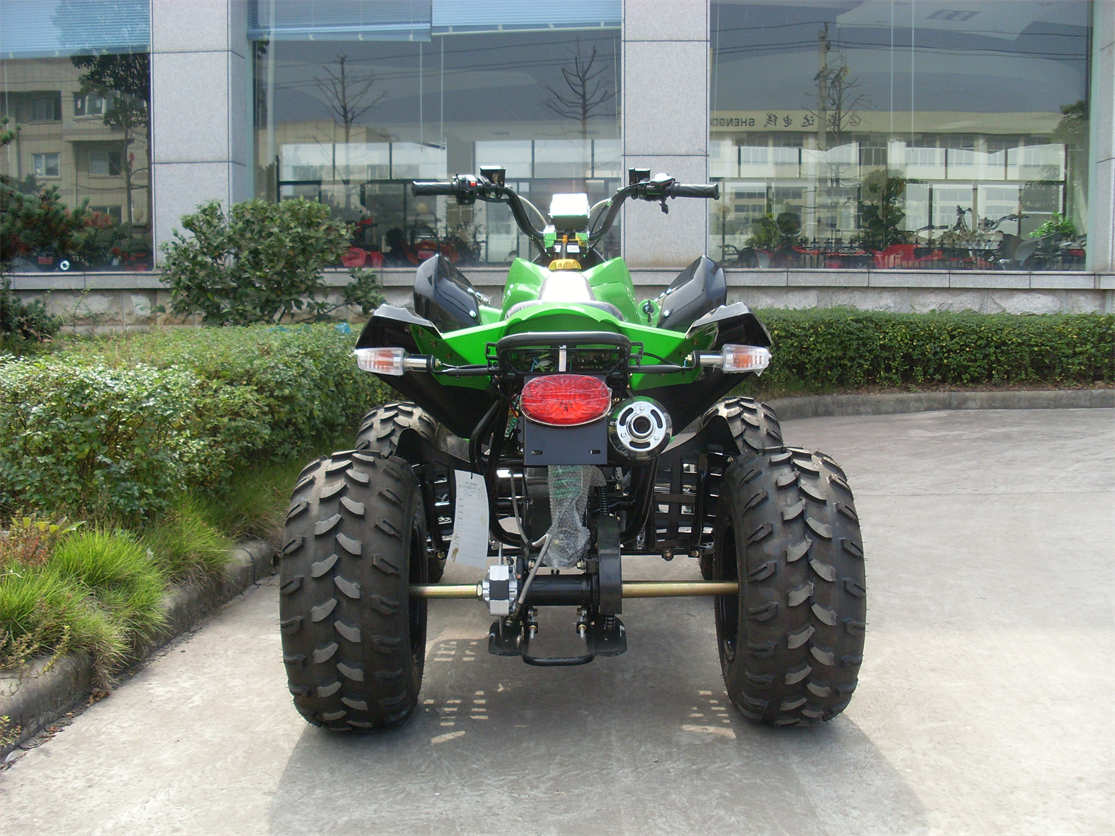

150CC GY6 Automatic ATV QUAD For Adult

Item No:                                                       JLA-13-1

ENGINE TYPE :                                          GY6-150CC,4 STORKE

MAX TORQUE :                                          10NM/5500RPM

MAX POWER :                                             9.3KW/7500RPM

BATTERY SPEC :                                        12V,9AH

FRONT TIRE SPEC :                                   19X7-8

REAR TIRES SPEC :                                   18X9.5-8

VEHICLE DIMENSIONS :                             158X120X110CM

WHEEL BASE :                                             1150MM

SEAT HEIGHT FROM GROUND :                 84CM

GROUND CLEARANCE :                              130MM

LOAD CAPACITY :                                         150KG

FUEL TANK CAPACITY :                               4.5L

GROSS WEIGHT IN CARTON :                    180KG

NET WEIGHT :                                              160KG

PACKING SIZE:                                             144X85X89CM



IDENTIFICATION

Model No.: JLA-13A-09-12-150

Warranty one year for engine, 6months for other parts

Model No. in EEC certifcate



ENGINE

Cylinder: Single

Cooled System: Air

Engine Stroke: 4 Stroke

Bore*Stroke(mm): 57.4×57.8mm

Displacement(ml): 149.6(150cc)

Max.power(kw/rpm): 7.0kw/7500rpm

Max.torque(n.m/rpm): 8.3N.m/5000rpm

Ignition Type: CDI



TRANSMISSION

Transmission Type: CVT F-N-R,Reverse gear CVT F-N-R,Reverse gear CVT F-N-R Reverse gear

Primary Drive(Rear Wheel): Chain 4x2

Reverse: No

Max Speed(km/h): >70

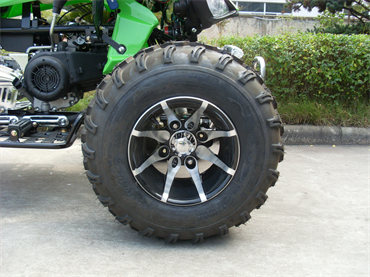

WHEEL

Front wheel: 235/30-12

Rear wheel: 235/30-12



SUSPENSION

Front Suspension: Double A-Swing Arm

Rear Suspension: Swing Arm



BRAKE SYSTEM

Front brake: Disc

Rear brake: Disc

Braking distance: 8m(30km/h)



TECHINCAL SPECIFICATIONS

Product Dimensions(mm): 1900x1100x1030mm

Ground Clearance(mm): 800

Wheelbase(mm): 1200

Mini Turning Radius(mm): 2800mm

gross weight(kg): 204

net weight(kgs): 180

Fuel Capacity(L): 5L

Fuel consumption: 3.5L/100KM



SEAT

Seat Height(mm): 630

Number of Seats: 1



COLOR

Standard Color: Red/Yellow/Blue/Green/Black/White

Optional Color: Green camo,Yellow camo,Snow Camo,Metallic,Carbon



Packing

Packing Size(mm): 1800*1000*750(Steel frame inside,carton outside)

Quantity: 20FT:18PCS 40HQ:42PCS

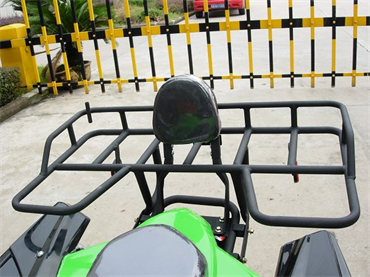

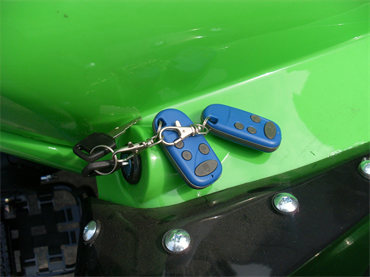

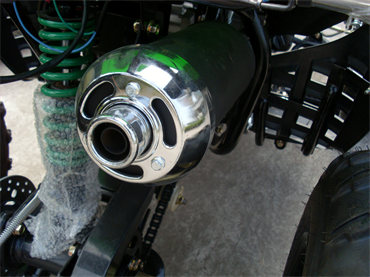

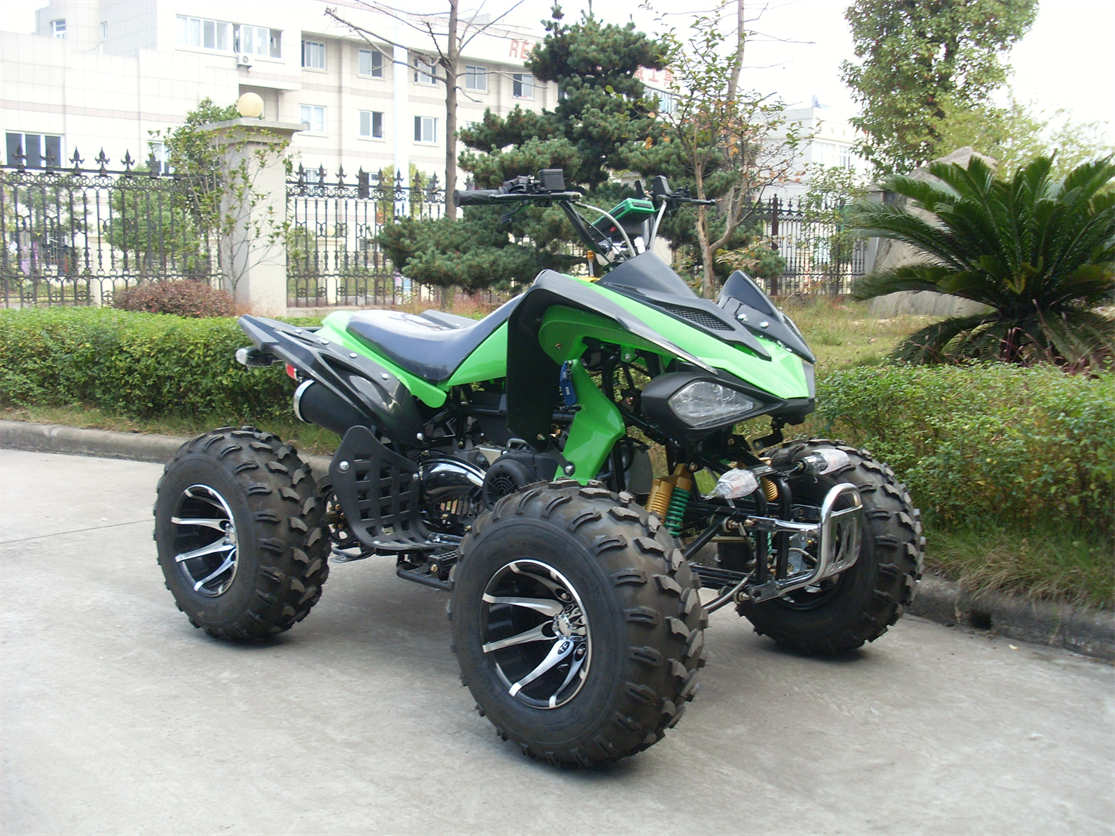

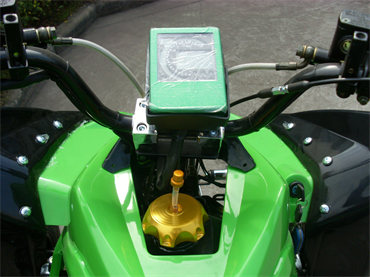

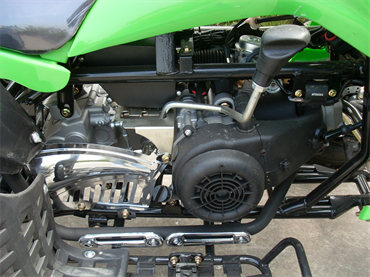

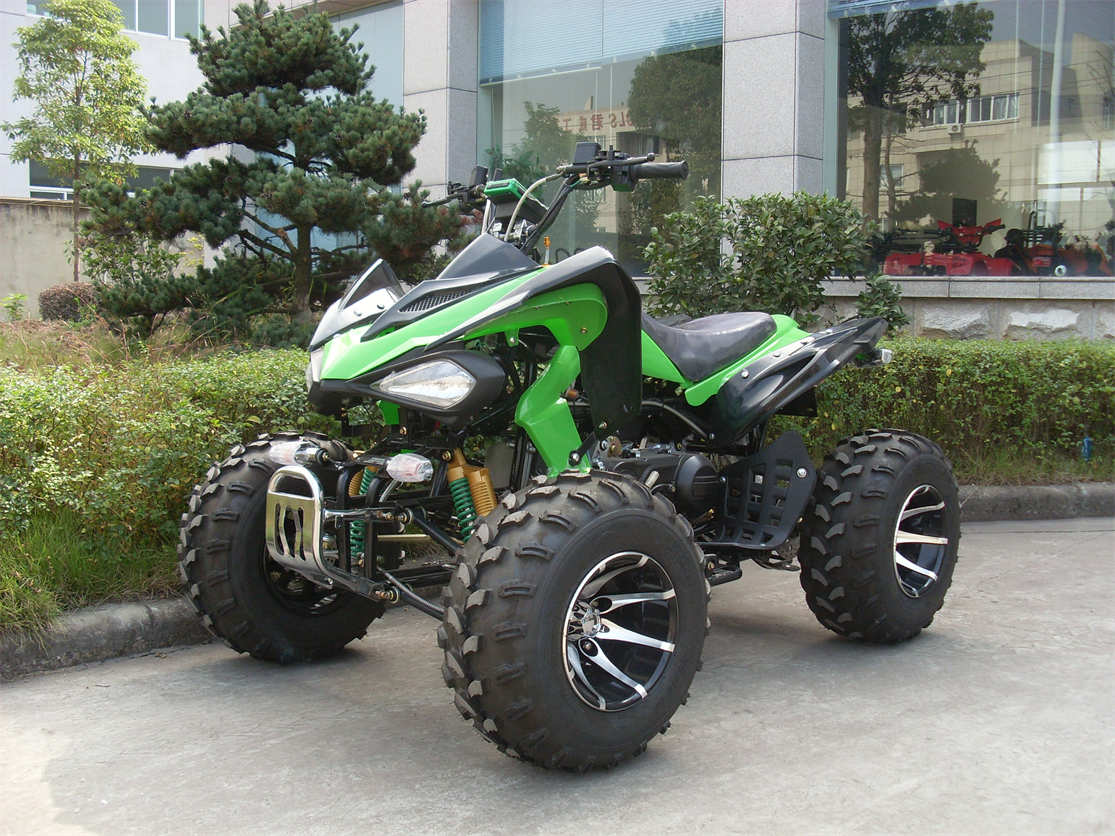

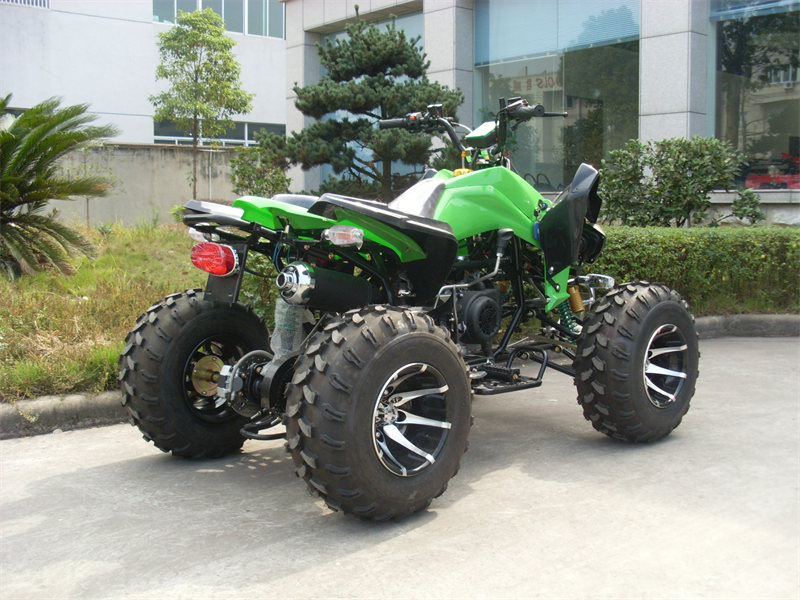

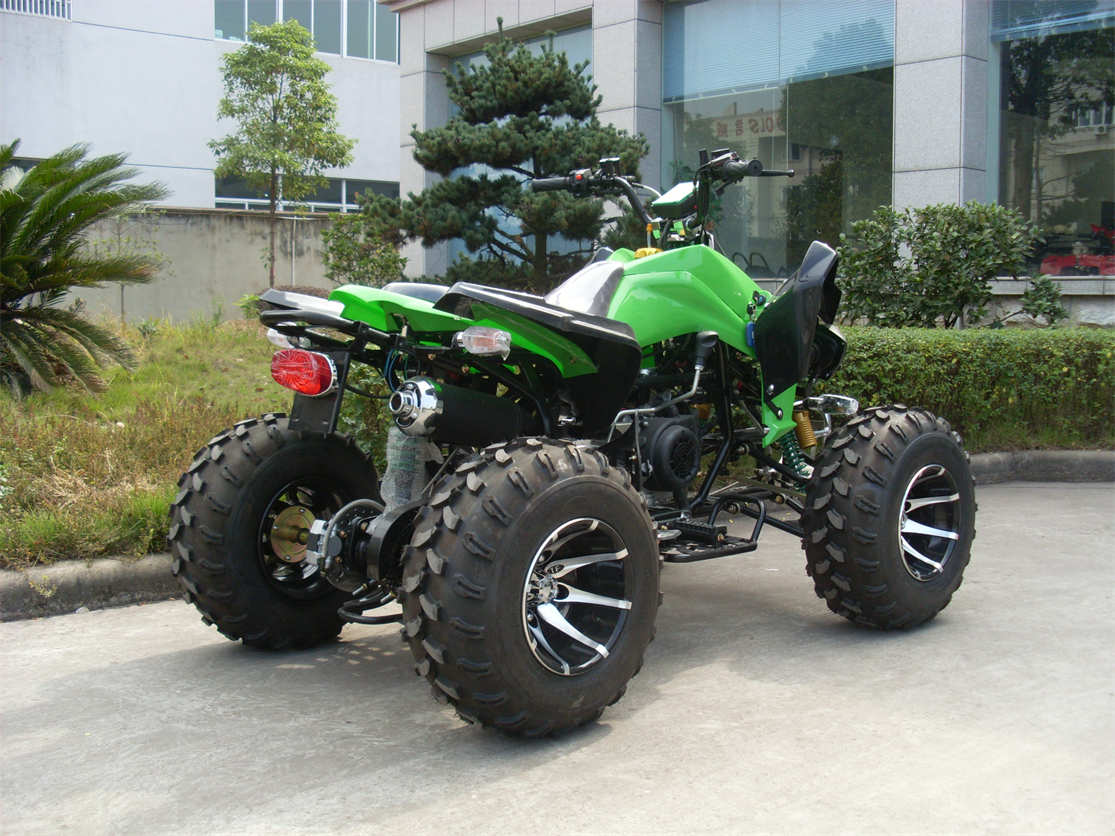

Product Details





















Our Advantages

Yongkang Jinling Industry & Trade Co.,Ltd. is a professional manufacturer of various ATVs, pocket bikes, dirt bikes, electric&gas scooters,balanace scooters and mini scooters, with rich OEM/ODM experience. Well-equipped testing facilities and strong technical force also lead to such a complete and scientific quality management system. Our professional design team keeps researching and developing new products to provide the best products in this industry, ensuring our products can meet the ever-changing economic and social needs.

We have been exporting e-bikes to USA, European, South America, etc. All of our customers appreciate our quality and service.

Choose Yongkang Jinling, we can give you more

  • # Standardization Production
    Standardization production (in compliance with ISO production and management, in accordance with 6S total management). The service time of product is long, ranking the top in the same trade.
  • # Strong Team
    Our factory has strong production team,research and development team,foreign trade team and after-sale team.Strong research and development ability, good seizing ability of market trend, valued brand image.
  • # Excellent Service
    We ensure to provide high quality products for your satisfaction, Our unmatched service standardsare seen in both our products and our support team

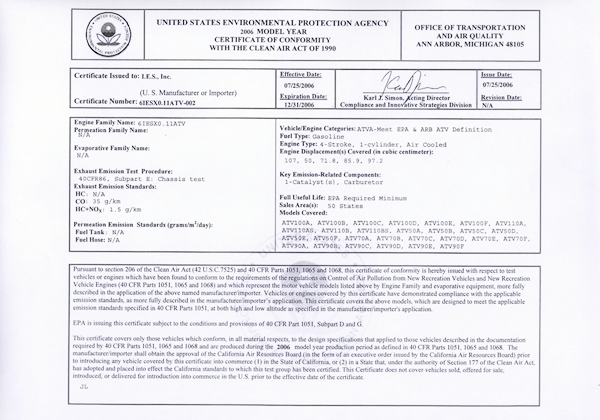

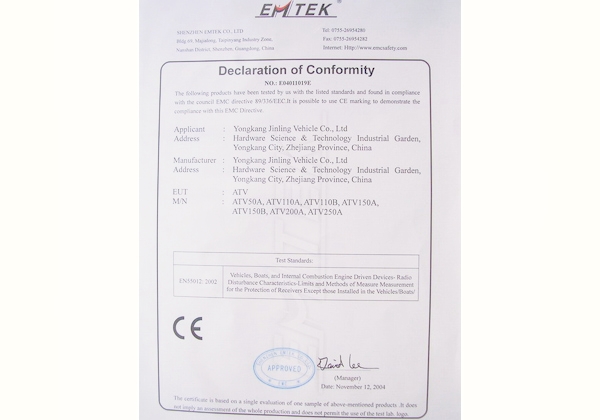

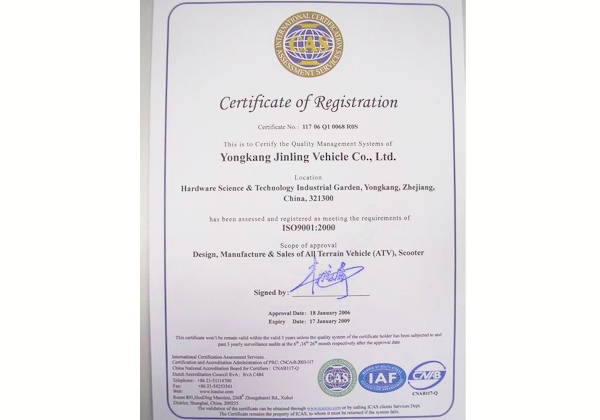

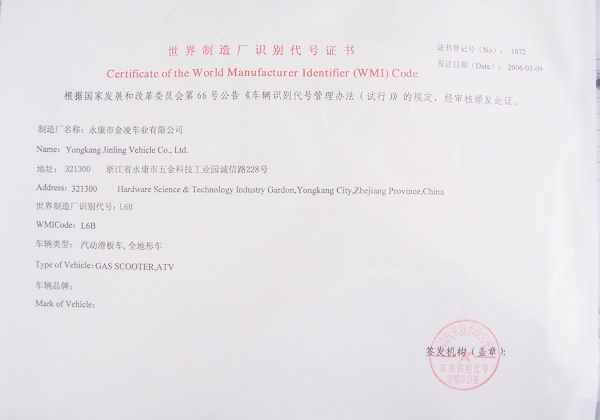

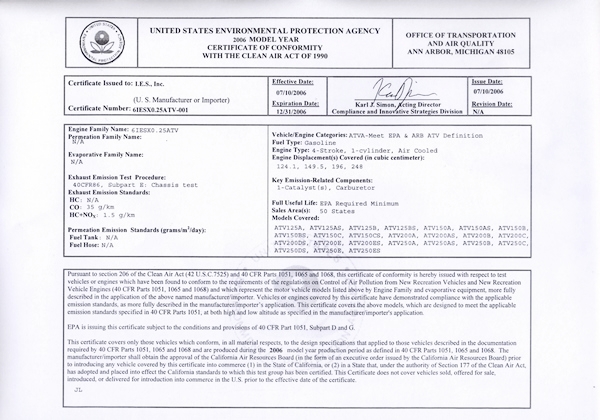

Certificate



FAQ

1. What is the minimum order quantity?

The minimum order quantity is 1x20FT.



2. Can I order a sample?

Yes,You will pay 200 USD as sample fee to cover the extra costs.



3. How about quality warranty ?

our factory can offer 6 months for the plastic covers and 12 months for the engine and the vehicle frame.



4. What is your manufacture capacity?

Our factory manufacture capacity 30x40”HQ per month.150-200pcs one day.



5. What is the production and delivery time?

The production and delivery time is 20-30 days.



6. Can I become your factory products brand agent?

We would like to build agent.For this agent we have the sales quantity per year.the sales quantity must be more than 1000 pieces per year.
