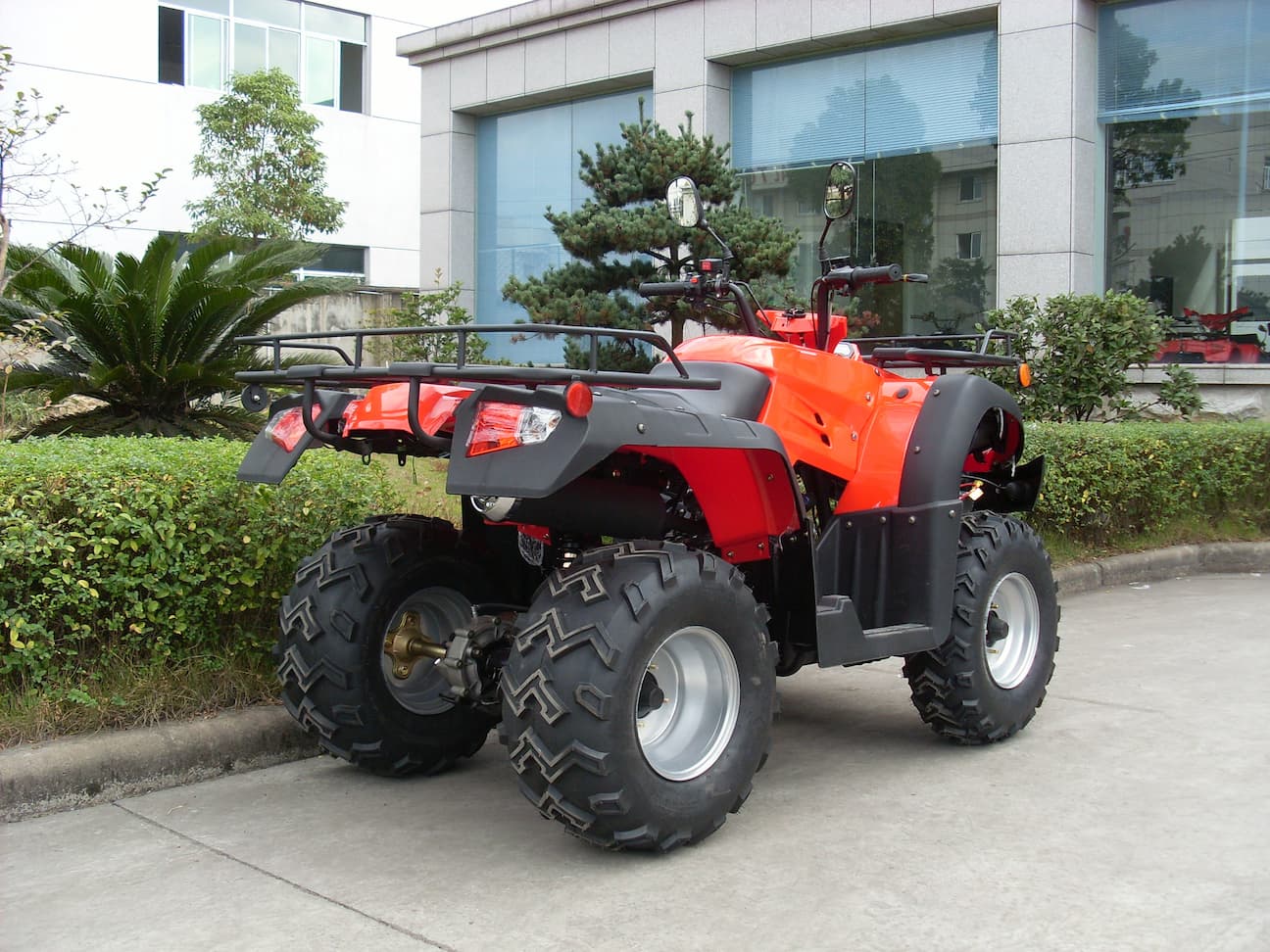

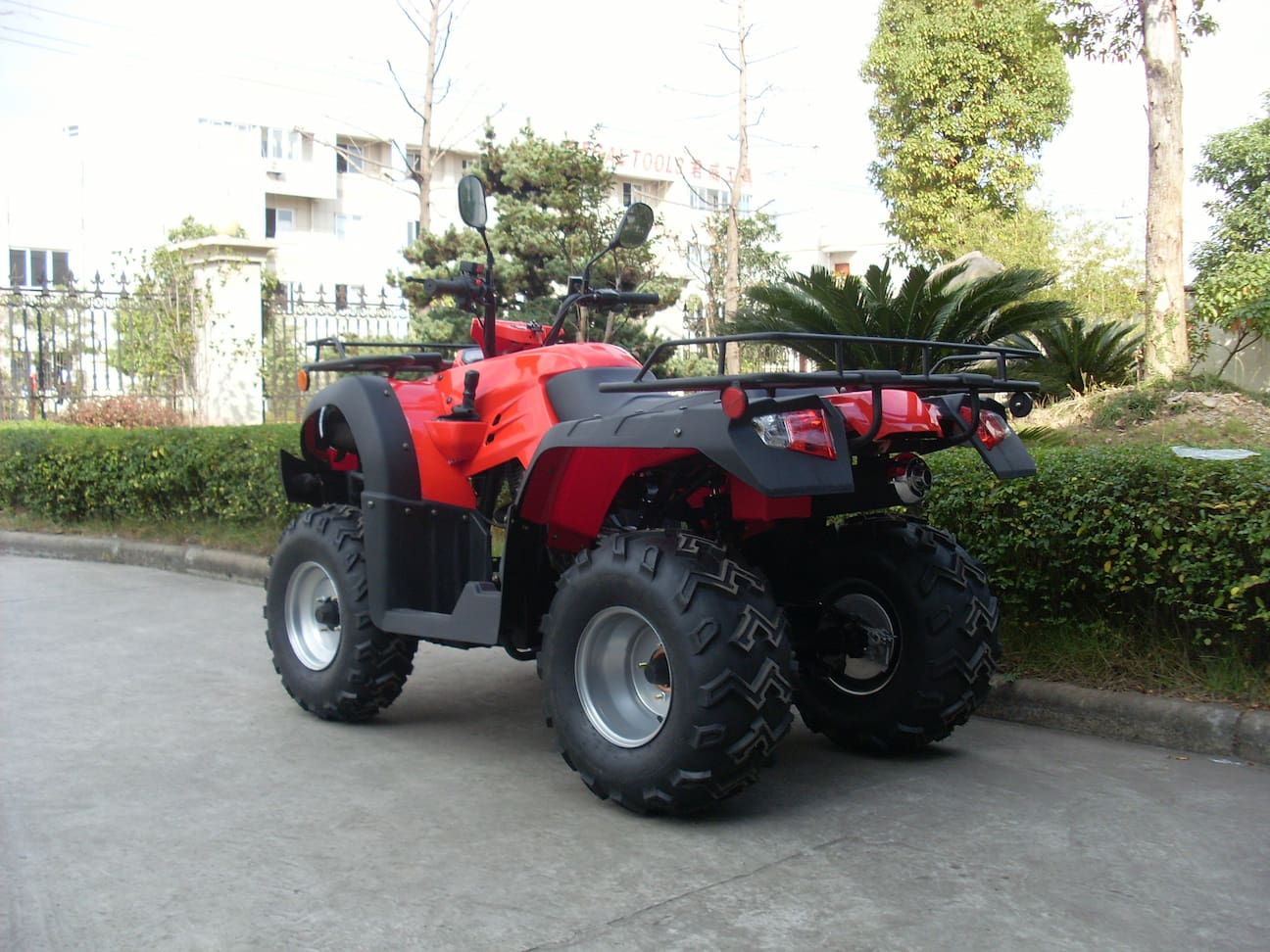

200CC 250CC Sport ATV QUAD With double A x swing arm
Essential details
Place of Origin:                Zhejiang, China
Brand Name:                    JINLING
Model Number:                JLA-24
Engine Type:                    200cc,250cc
Gears:                              Manual Clutch,4 fowarder gear,semi-automatic CVT,1 reverse gear
Wheel Size:                      23X7-10 (Front) 22X10-10(Rear)
Fuel tank capacity :          4L
Braking System:              Front drum/ Rear disc
Cooled System :              Air or Water Cooled
Battery Capacity:            12V,9AH
Load capacity :               170kg





IDENTIFICATION

Model No.: JLA-24-2

Warranty one year for engine, 6months for other parts

Model No. in EEC certifcate

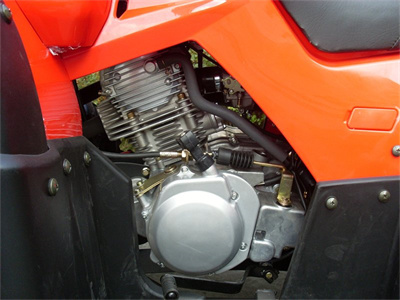

ENGINE

Cylinder: Single Single Single

Cooled System: Water Air Water

Engine Stroke: 4 Stroke

Bore*Stroke(mm): 72x61.2mm 71x58mm

Displacement(ml) : 200cc 250cc

Max.power(kw/rpm): 12kw/7500rpm 13kw/7500rpm

Max.torque(n.m/rpm) : 17N.m/5500rpm 19.5N.m/5500rpm

Ignition Type: CDI

TRANSMISSION

Transmission Type: 4 fowarder gear,1 reverse gear semi-automatic CVT

Primary Drive(Rear Wheel): chain/shaft,drive shaft,drive chain/shaft,drive

Reverse: Yes

Max Speed(km/h): >75

WHEEL

Front wheel: 23X7-10

Rear wheel: 22X10-10

SUSPENSION

Front Suspension: A x swing arm

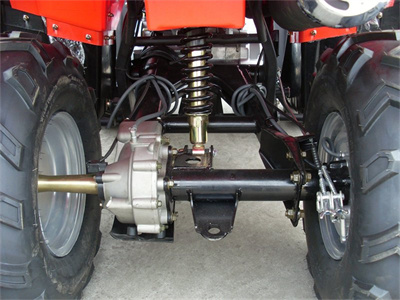

Rear Suspension : mono shock swing arm

BRAKE SYSTEM

Front brake: Drum

Rear brake: Disc

Braking distance : 8m(30km/h)

TECHINCAL SPECIFICATIONS

Product Dimensions(mm): 1890x1180x1220mm

Ground Clearance(mm): 155

Wheelbase(mm): 1110

Mini Turning Radius(mm): 2800mm

gross weight(kgs): 228

net weight(kgs): 206

Fuel Capacity(L): 4

Fuel consumption: 4.5L/100KM

SEAT

Seat Height(mm): 900

Number of Seats: 2

COLOR

Standard Color: Red/Yellow/Blue/Green/Black/White

Optional Color: Green camo, Yellow camo, Snow Camo, Metallic, Carbon

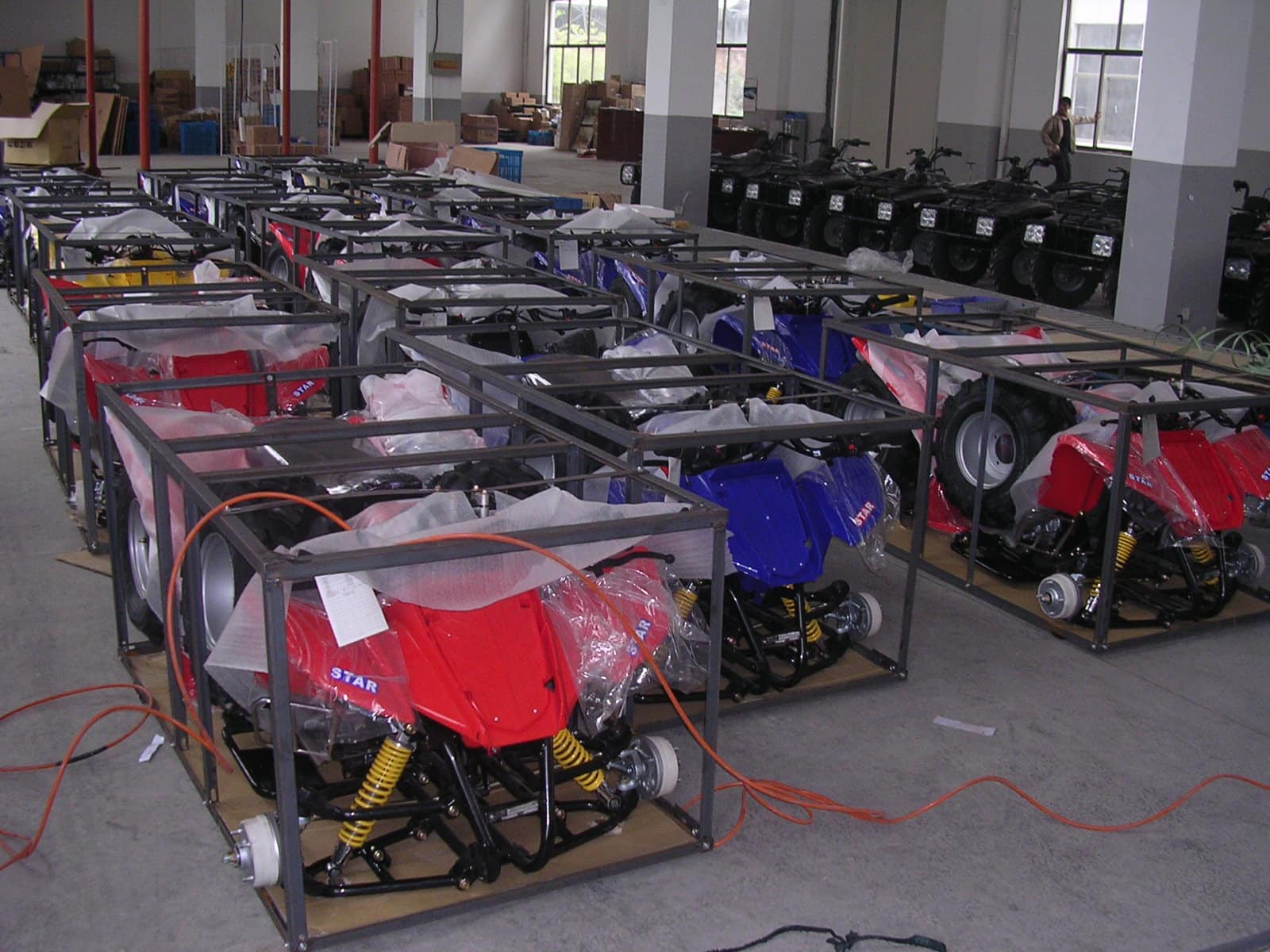

Packing

Packing Size(mm): 1940*1090*840 (Steel frame inside, carton outside)

Quantity: 20GP:12PCS, 40HQ:36PCS



Product Details



Our Advantages

Yongkang Jinling Industry & Trade Co.,Ltd. is a professional manufacturer of various ATVs, pocket bikes, dirt bikes, electric&gas scooters,balanace scooters and mini scooters, with rich OEM/ODM experience. Well-equipped testing facilities and strong technical force also lead to such a complete and scientific quality management system. Our professional design team keeps researching and developing new products to provide the best products in this industry, ensuring our products can meet the ever-changing economic and social needs.

We have been exporting e-bikes to USA, European, South America, etc. All of our customers appreciate our quality and service.

Choose Yongkang Jinling, we can give you more

  • # Standardization Production
    Standardization production (in compliance with ISO production and management, in accordance with 6S total management). The service time of product is long, ranking the top in the same trade.
  • # Strong Team
    Our factory has strong production team,research and development team,foreign trade team and after-sale team.Strong research and development ability, good seizing ability of market trend, valued brand image.
  • # Excellent Service
    We ensure to provide high quality products for your satisfaction, Our unmatched service standardsare seen in both our products and our support team

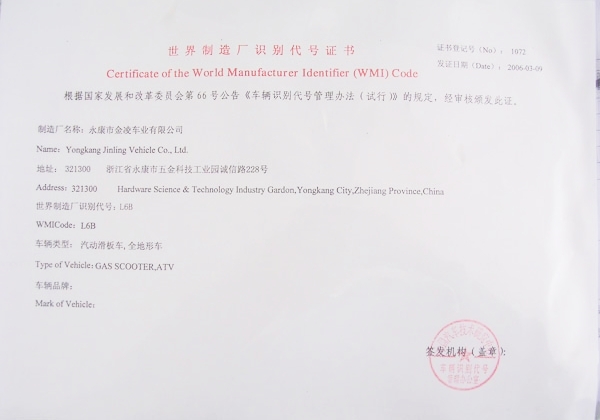

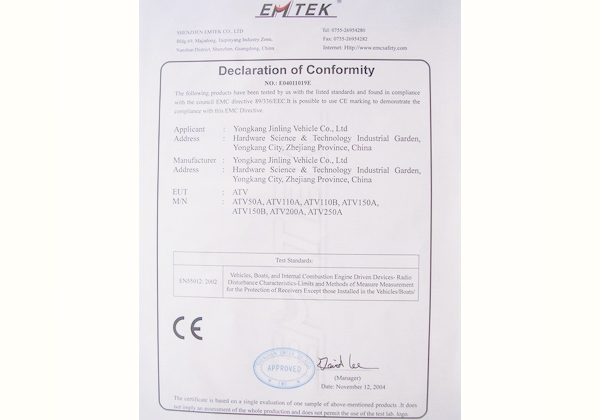

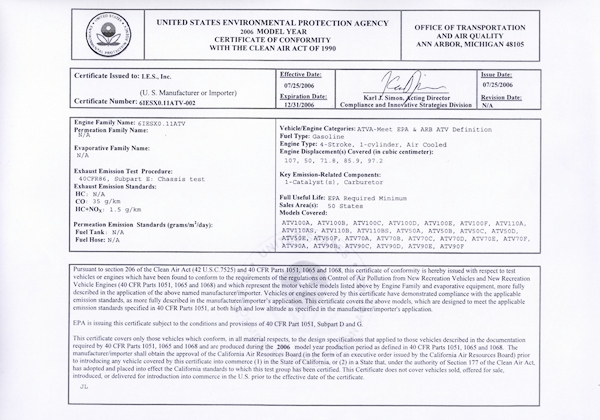

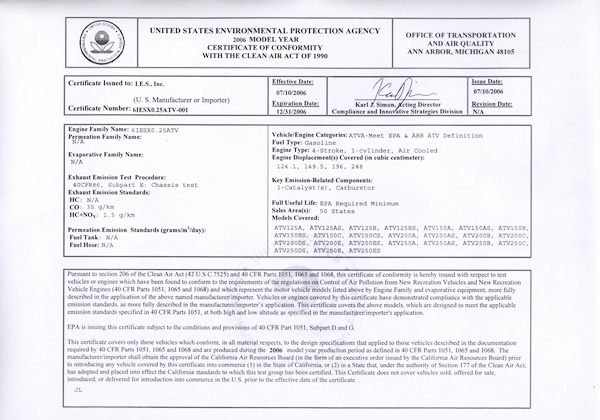

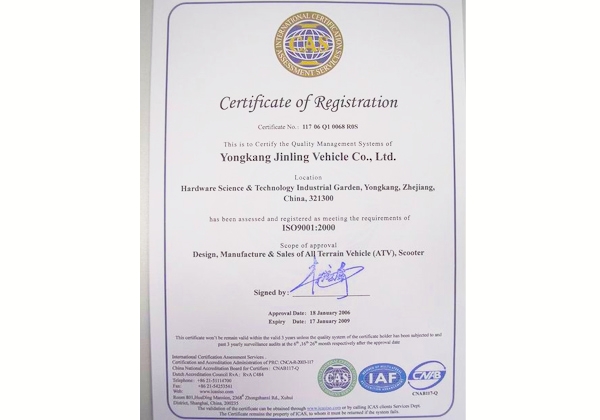

Certificate



FAQ

1. What is the minimum order quantity?

The minimum order quantity is 1x20FT.



2. Can I order a sample?

Yes,You will pay 200 USD as sample fee to cover the extra costs.



3. How about quality warranty ?

our factory can offer 6 months for the plastic covers and 12 months for the engine and the vehicle frame.



4. What is your manufacture capacity?

Our factory manufacture capacity 30x40”HQ per month.150-200pcs one day.



5. What is the production and delivery time?

The production and delivery time is 20-30 days.



6. Can I become your factory products brand agent?

We would like to build agent.For this agent we have the sales quantity per year.the sales quantity must be more than 1000 pieces per year.

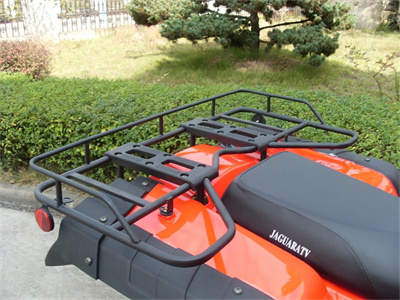

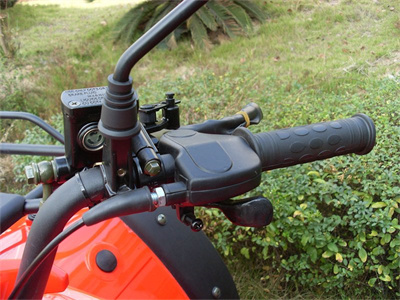

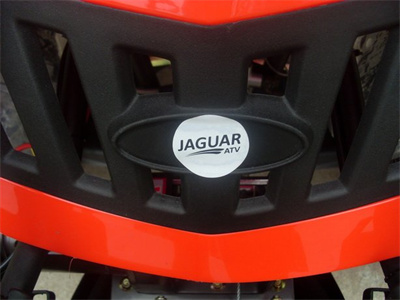

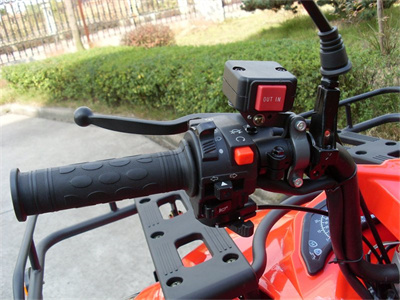

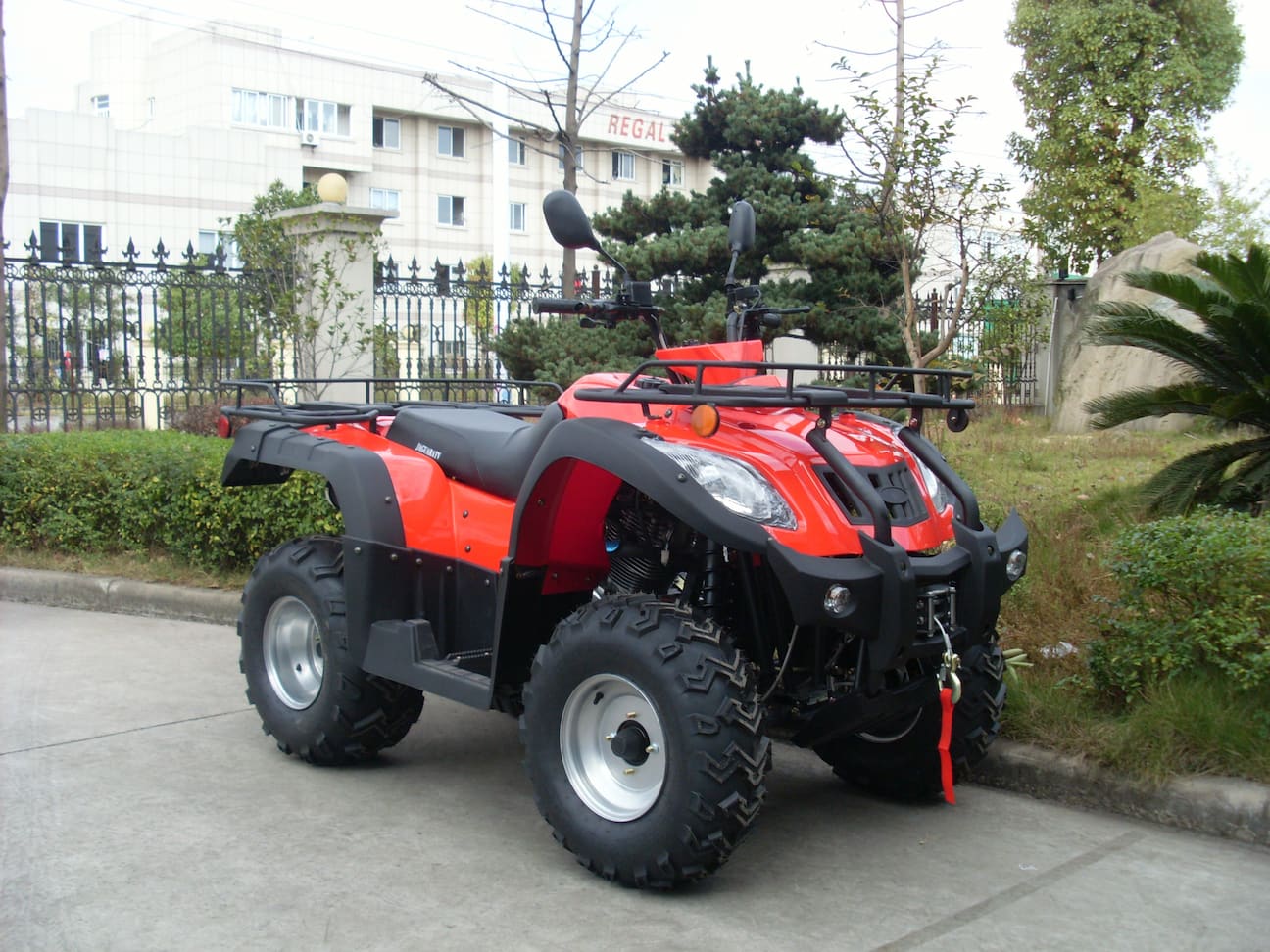

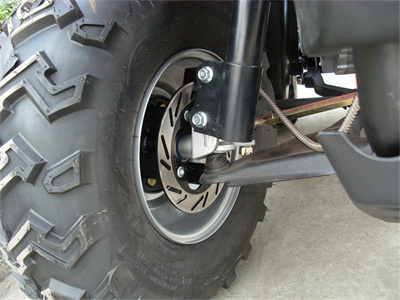

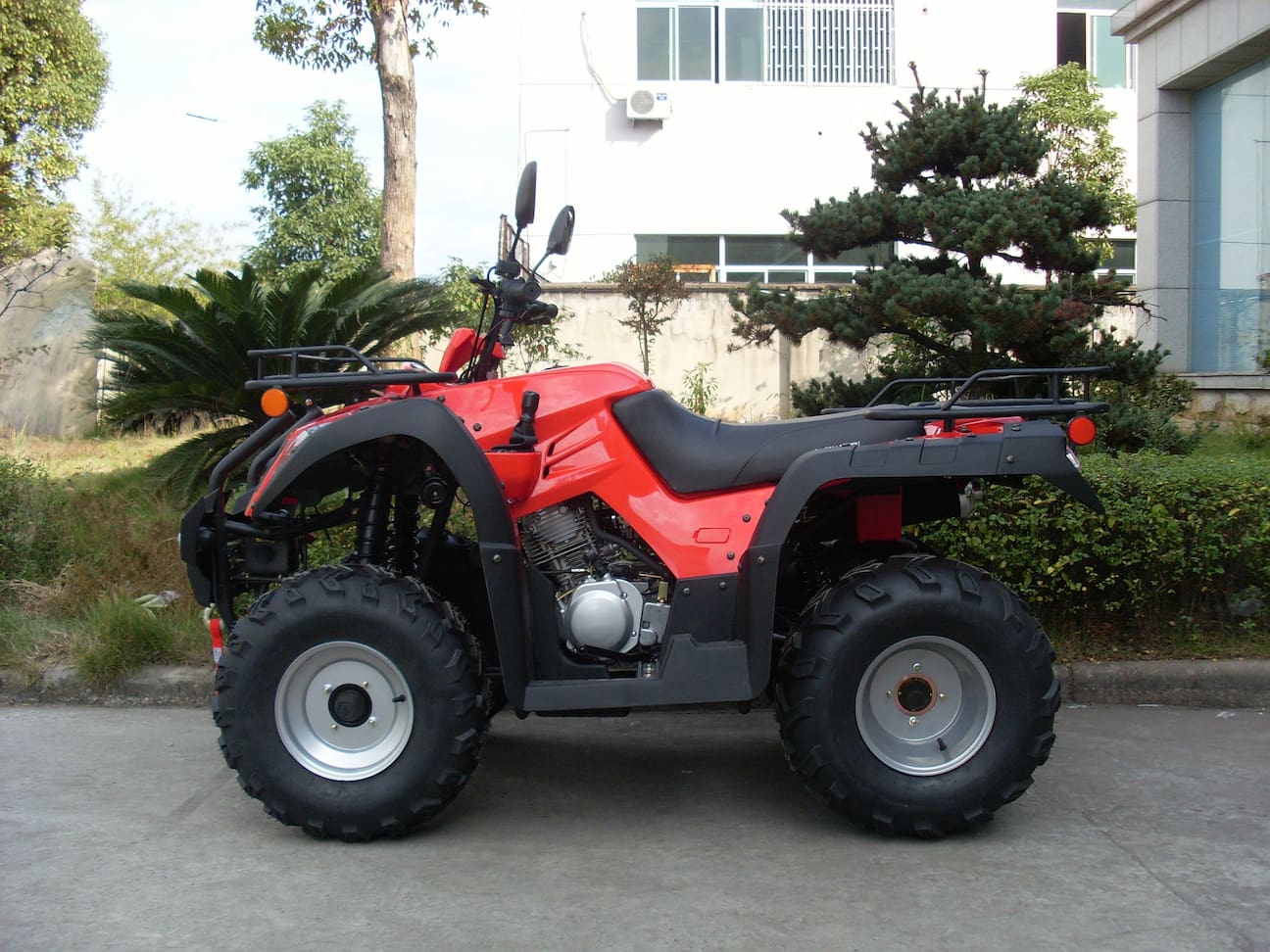

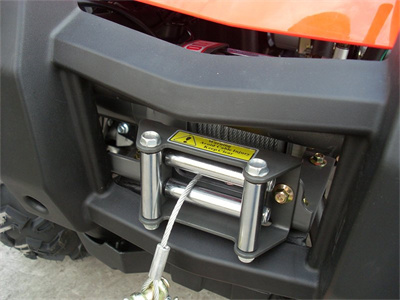

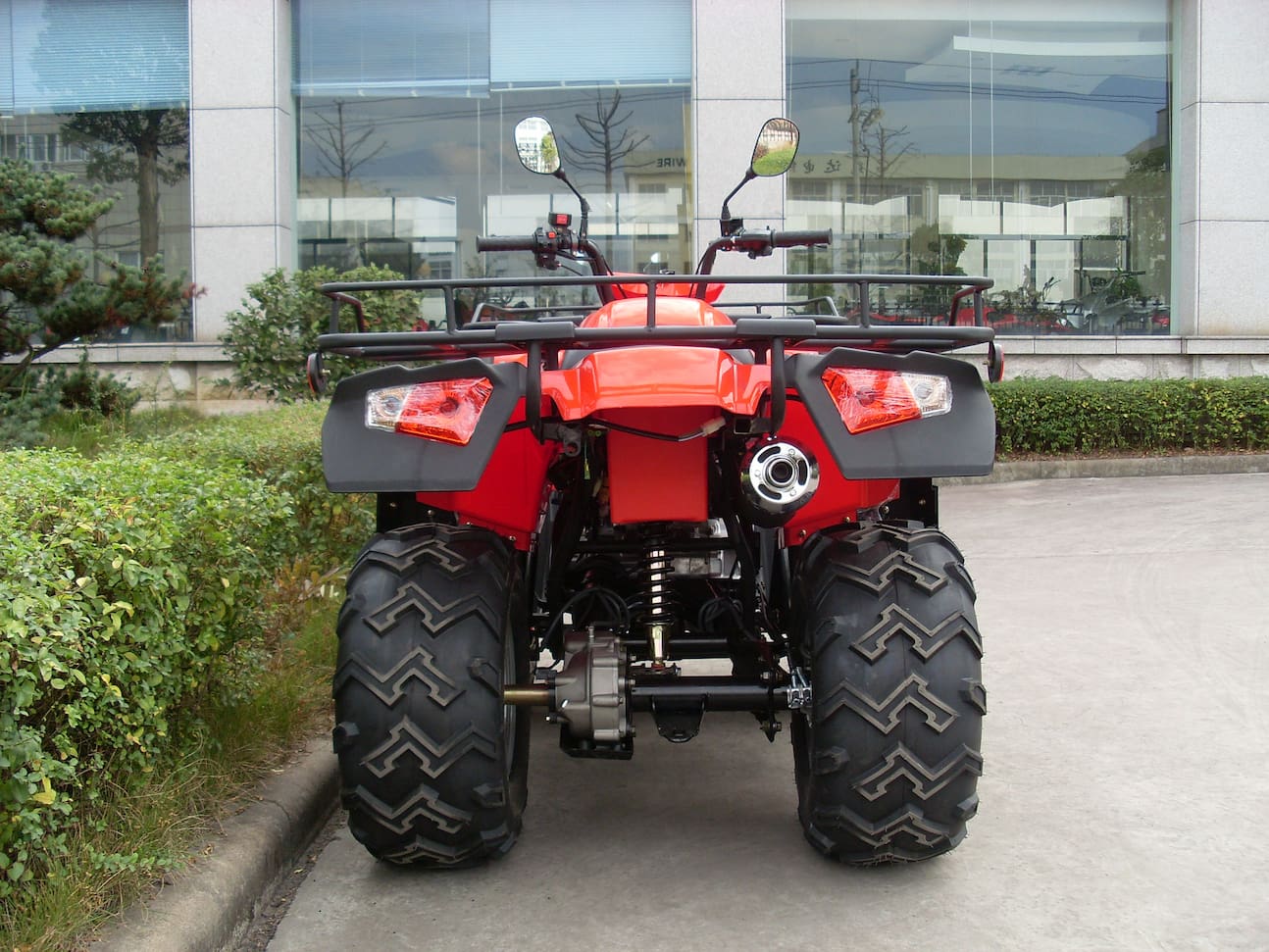

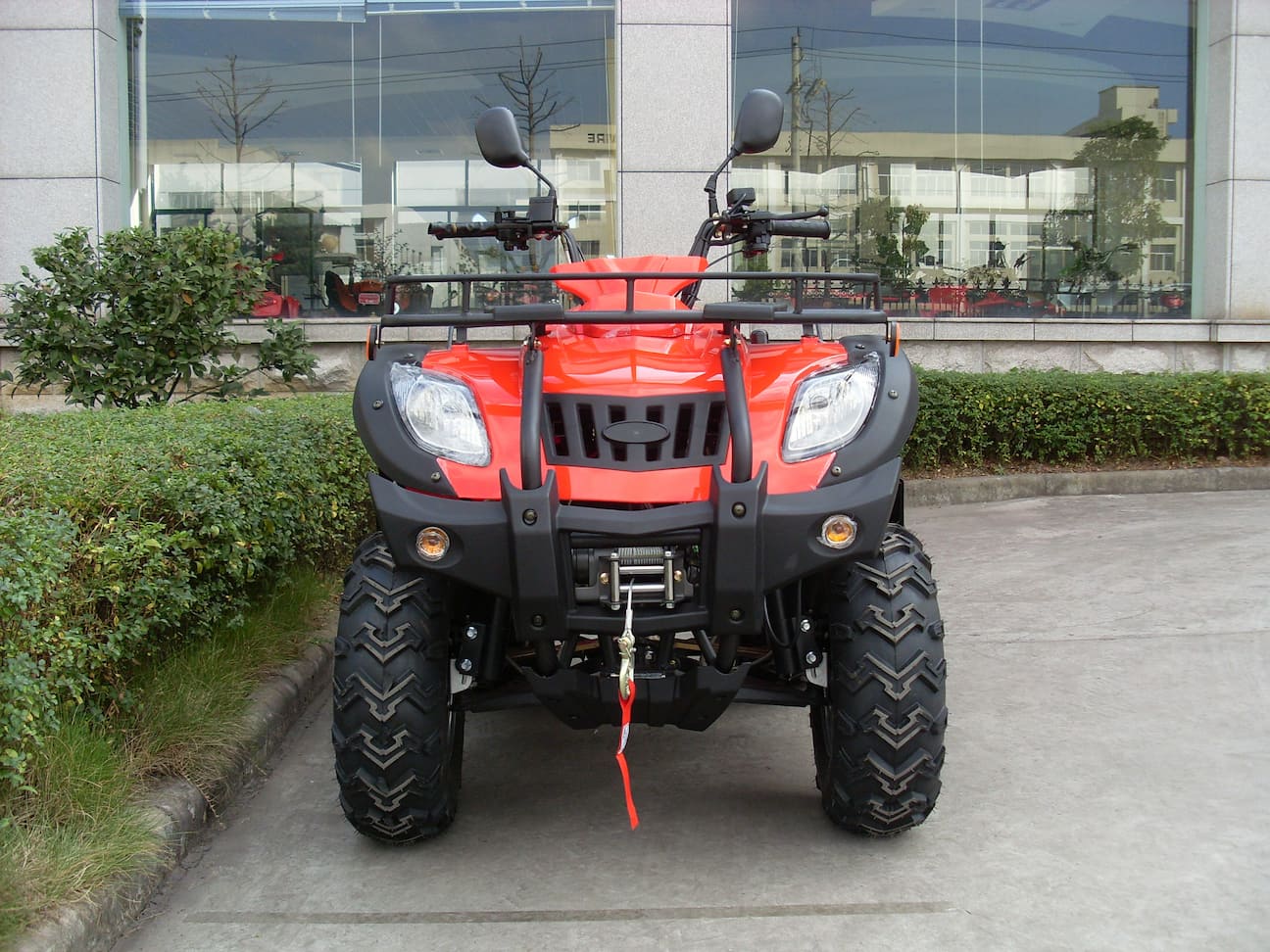

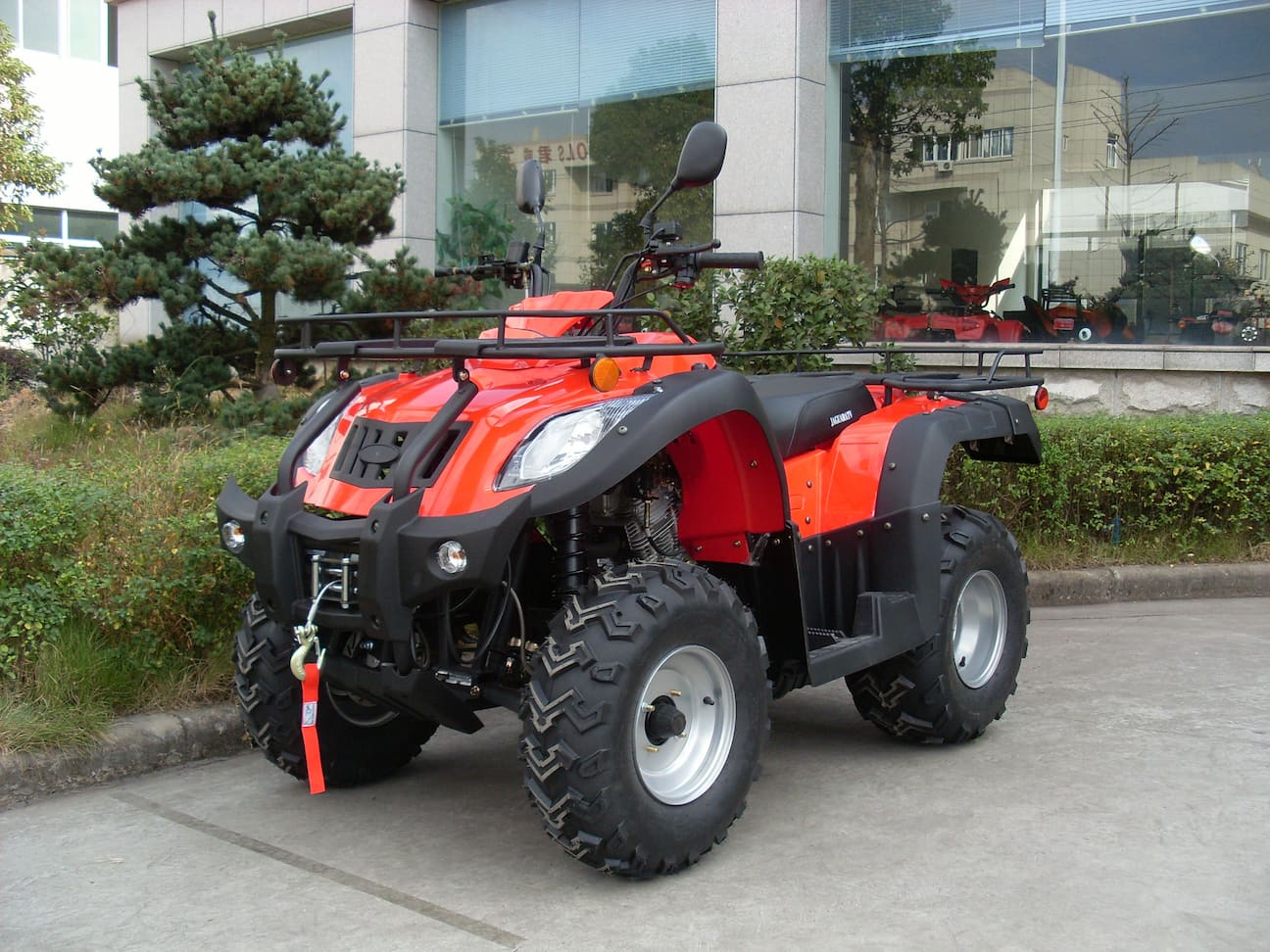

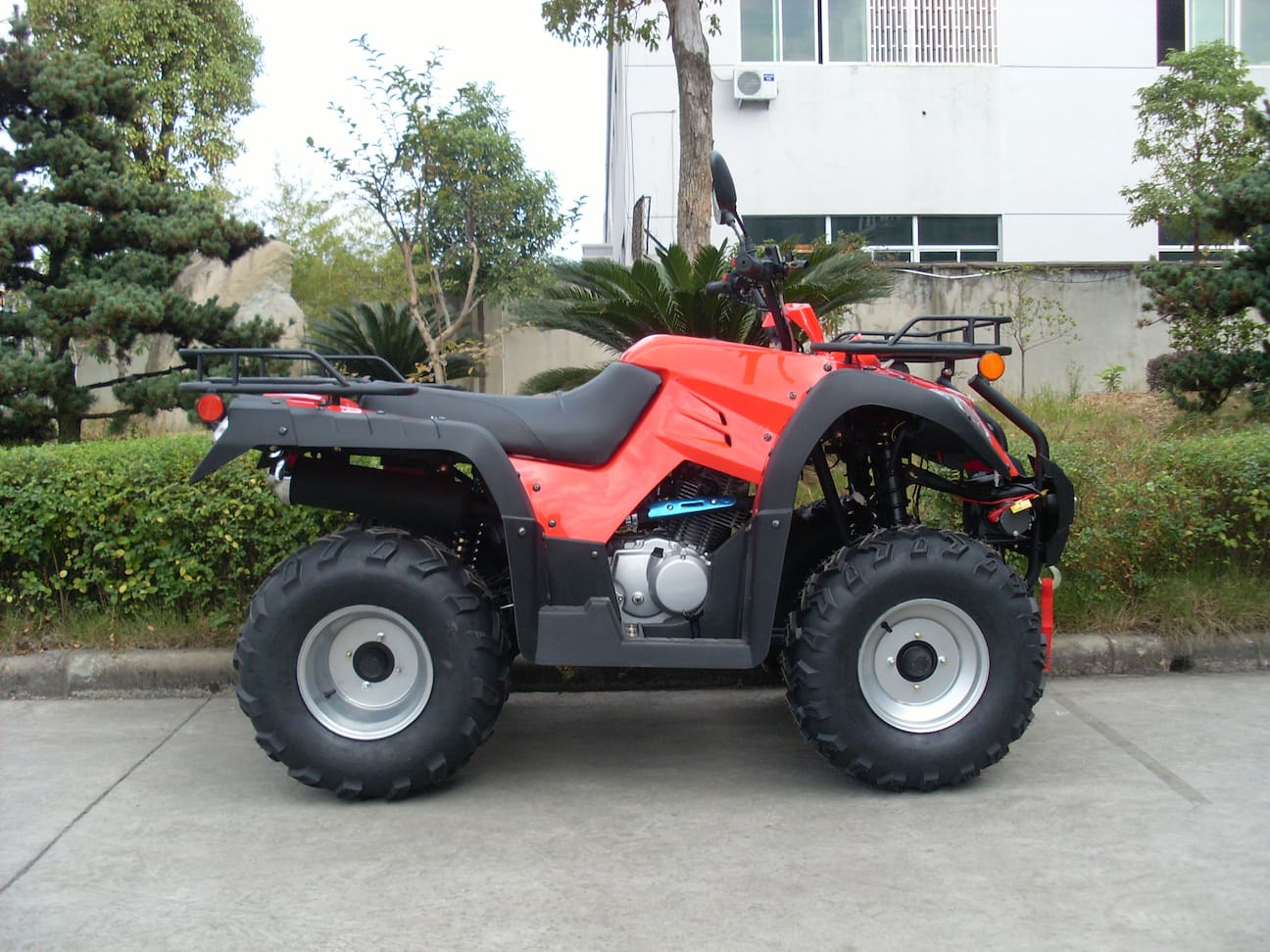

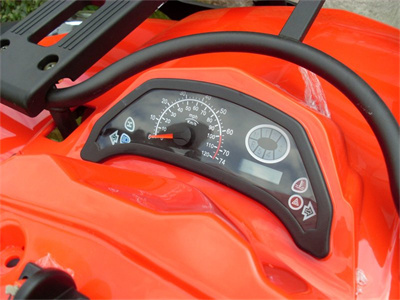

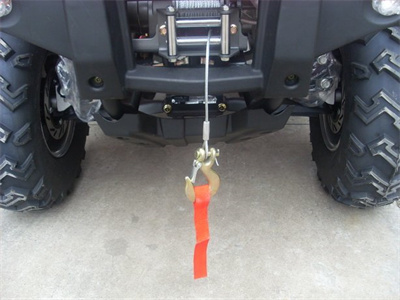

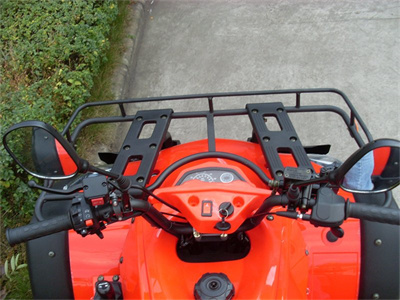

More Pictures:
