IDENTIFICATION
Model No: JLA-10
Warranty: One year for engine, 6 months for other parts
Approval: CE

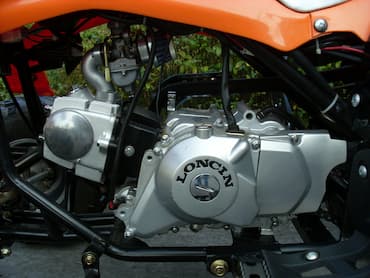

ENGINE
Cylinder: Single
Cooled System: Air
Engine Stroke: 4 Stroke
Bore*Stroke(mm): 41.4×49.5mm
Displacement(ml): 50cc 70cc 90cc 110cc 125cc
Max.power(kw/rpm): 3.0Kw/8500rpm/ ,3.0kw/7500rpm,3.3kw/7500rpm,3.6kw/7500rpm
Max.torque(n.m/rpm): 4.2Nm/5000rpm , 4.2Nm/5000rpm, 5.2Nm/5000rpm, 5.5Nm/5000rpm
Ignition Type: CDI
TRANSMISSION
Transmission Type: Automatic,chain,reverse gear
Primary Drive(Rear Wheel): Chain 4x2
Reverse: Yes
Max Speed(km/h): ≥45
WHEEL
Front wheel: 145x70-6
Rear wheel: 145x70-6
SUSPENSION

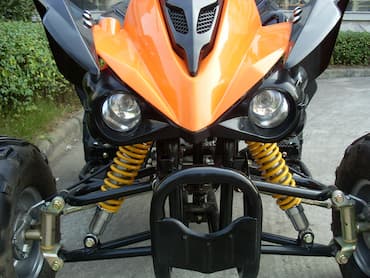

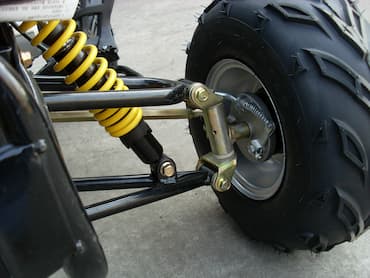

Front Suspension: Double A-Swing Arm
Rear Suspension: Mono Shock Swing Arm
BRAKE SYSTEM
Front brake: Drum

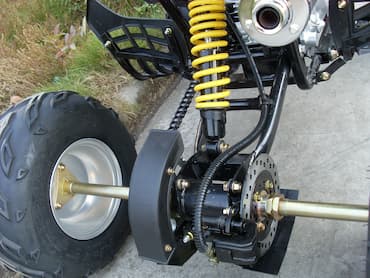

Rear brake: Disc
Braking distance: 8m(30km/h)
TECHINCAL SPECIFICATIONS
Product Dimensions(mm): 1410x970x1000mm
Ground Clearance(mm): 110
Wheelbase(mm): 940mm
Mini Turning Radius(mm): 2800mm
Gross weight(kgs): 99
Net weight(kgs): 88
Fuel Capacity(L): 5
Fuel consumption: 2.8L/100KM
SEAT
Seat Height(mm): 710
Number of Seats: 1
COLOR
Standard Color: Red/Yellow/Blue/Green/Black/White
Optional Color: Green camo,Yellow camo,Snow Camo,Metallic,Carbon
LOADING
Packing Size(mm): 1310X850X670 (Steel frame inside,carton outside)
Quantity: 20FT:34PCS; 40HQ:92PCS

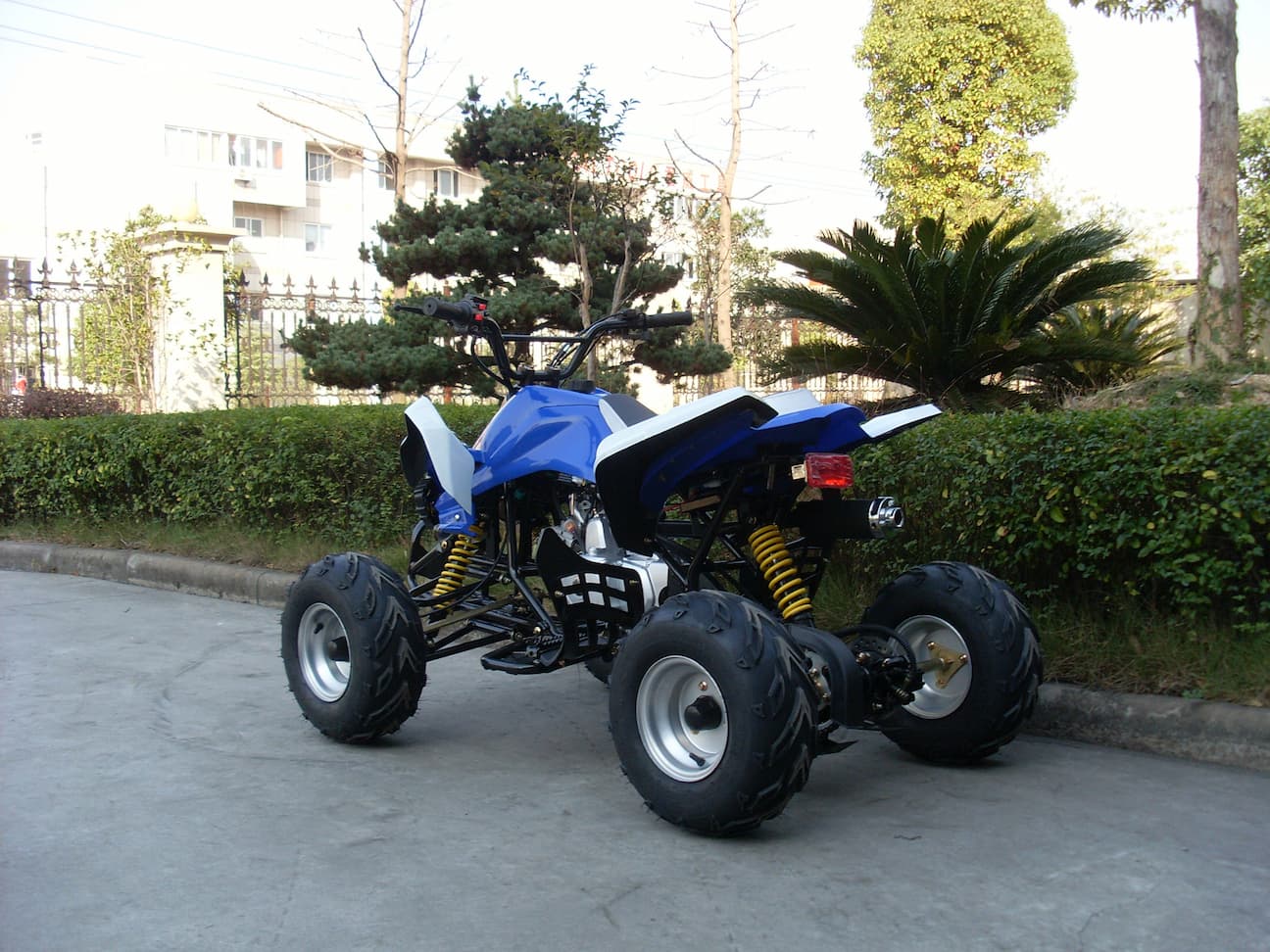

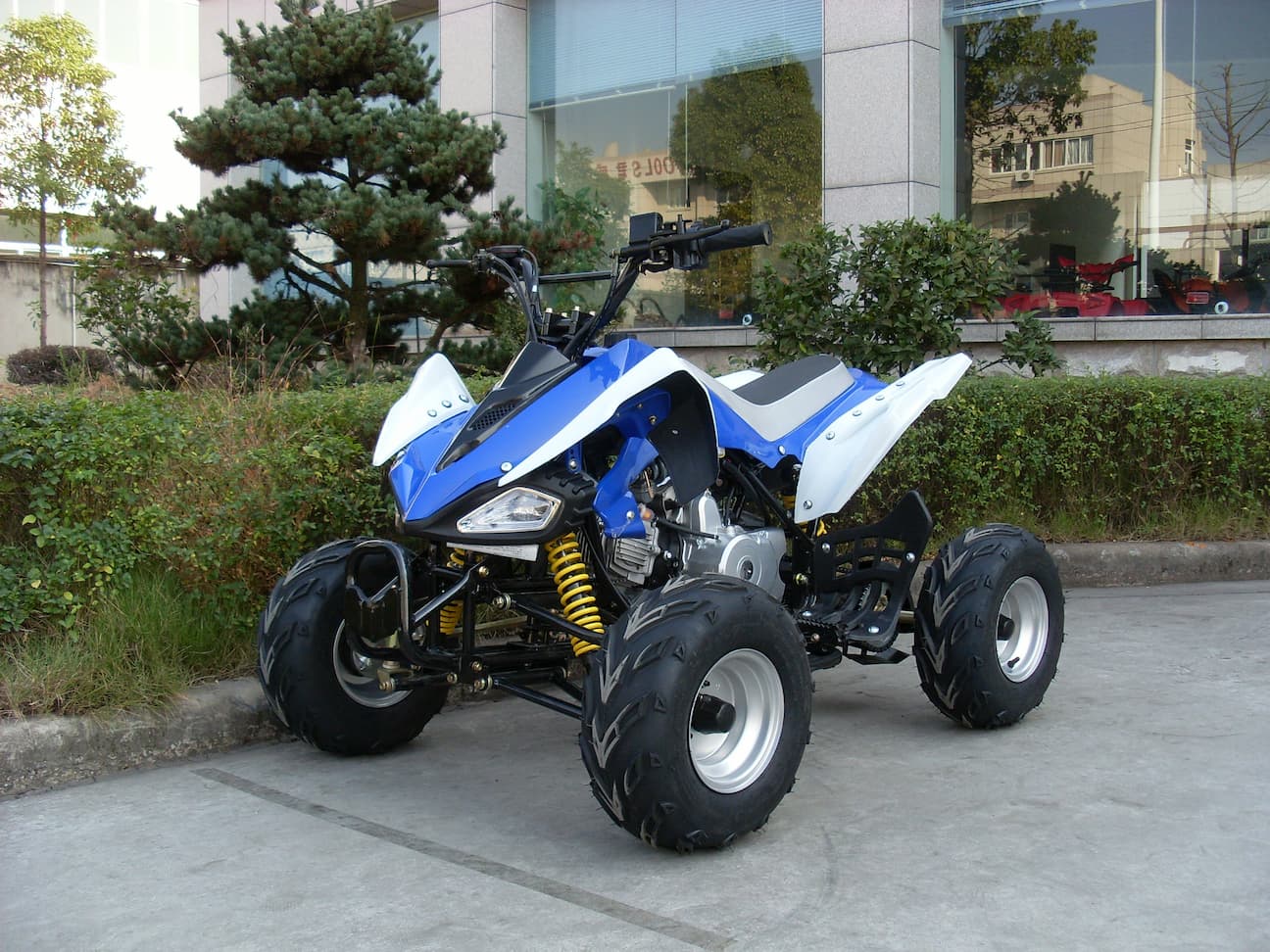

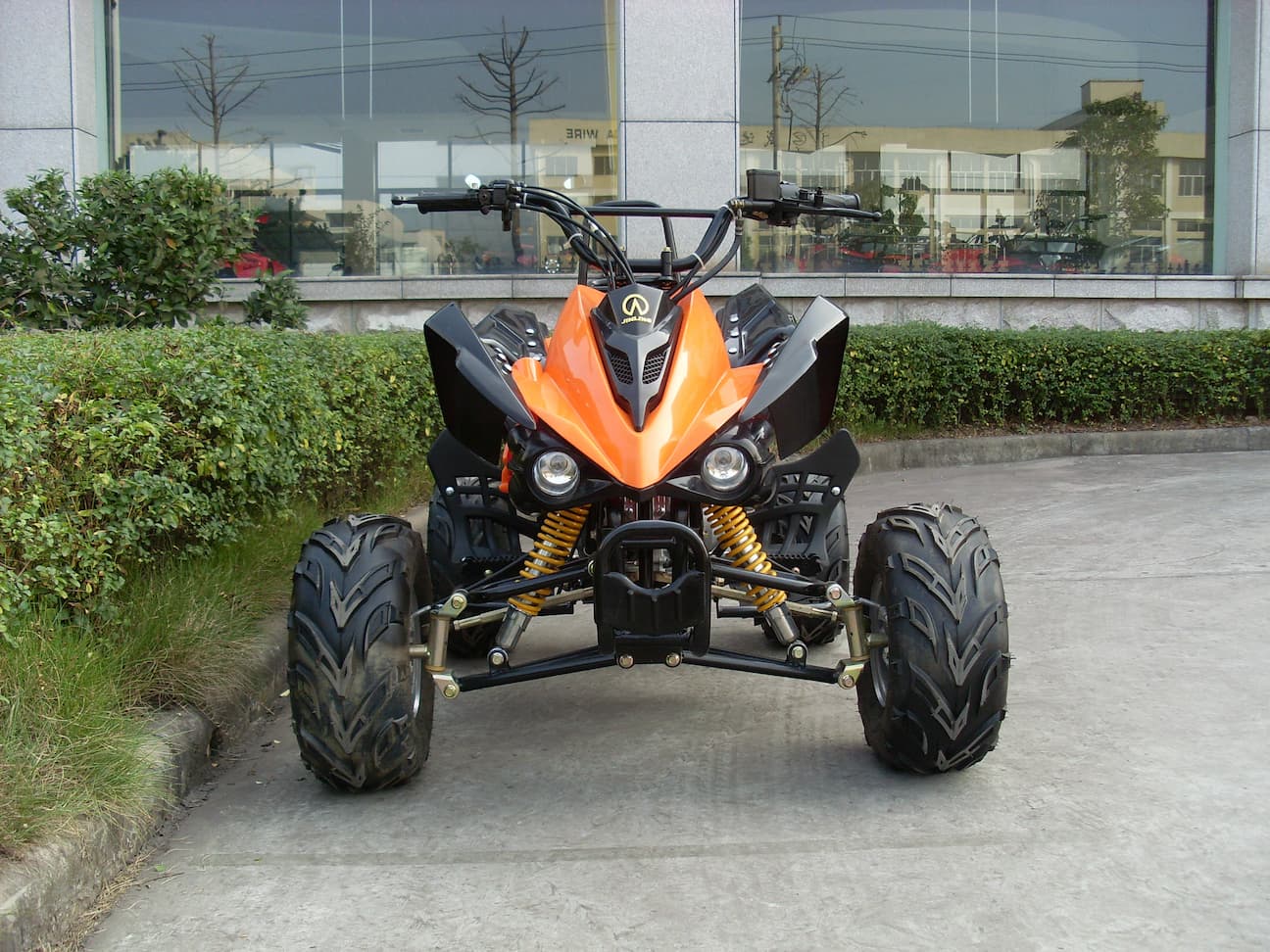

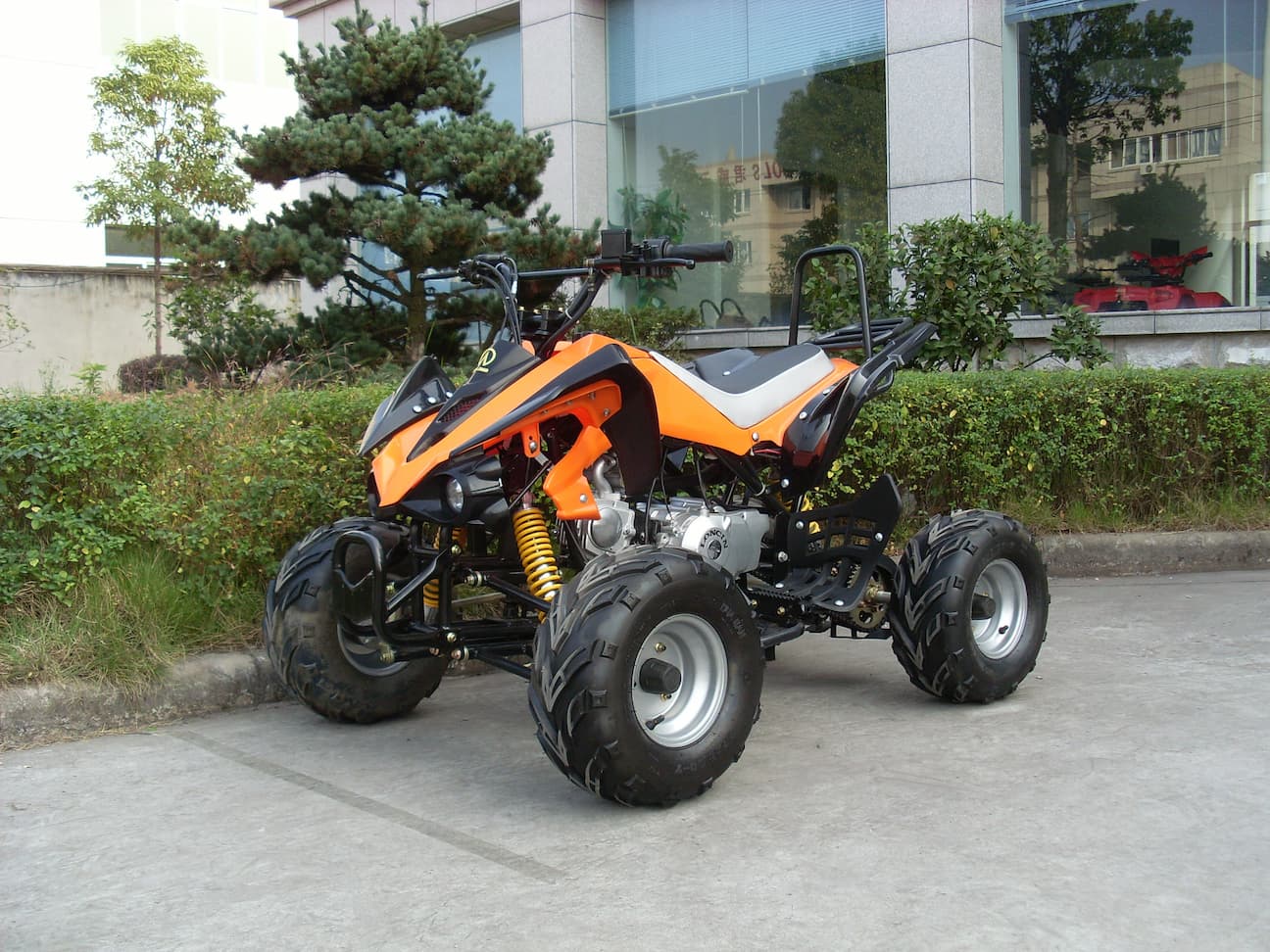

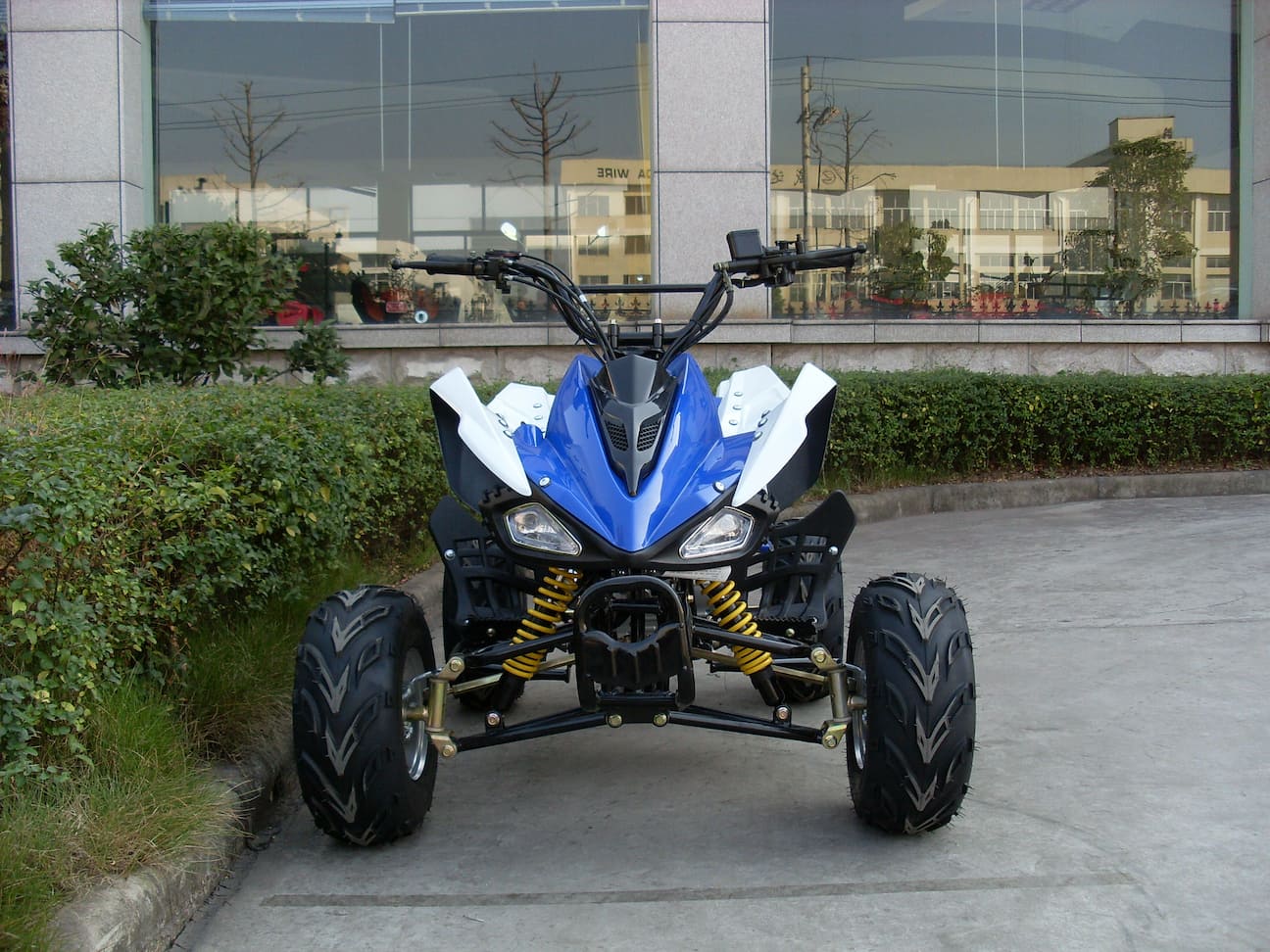

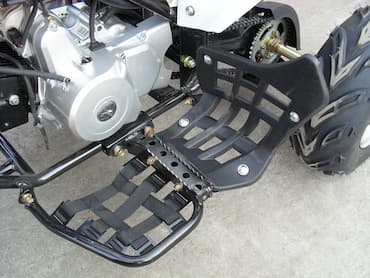

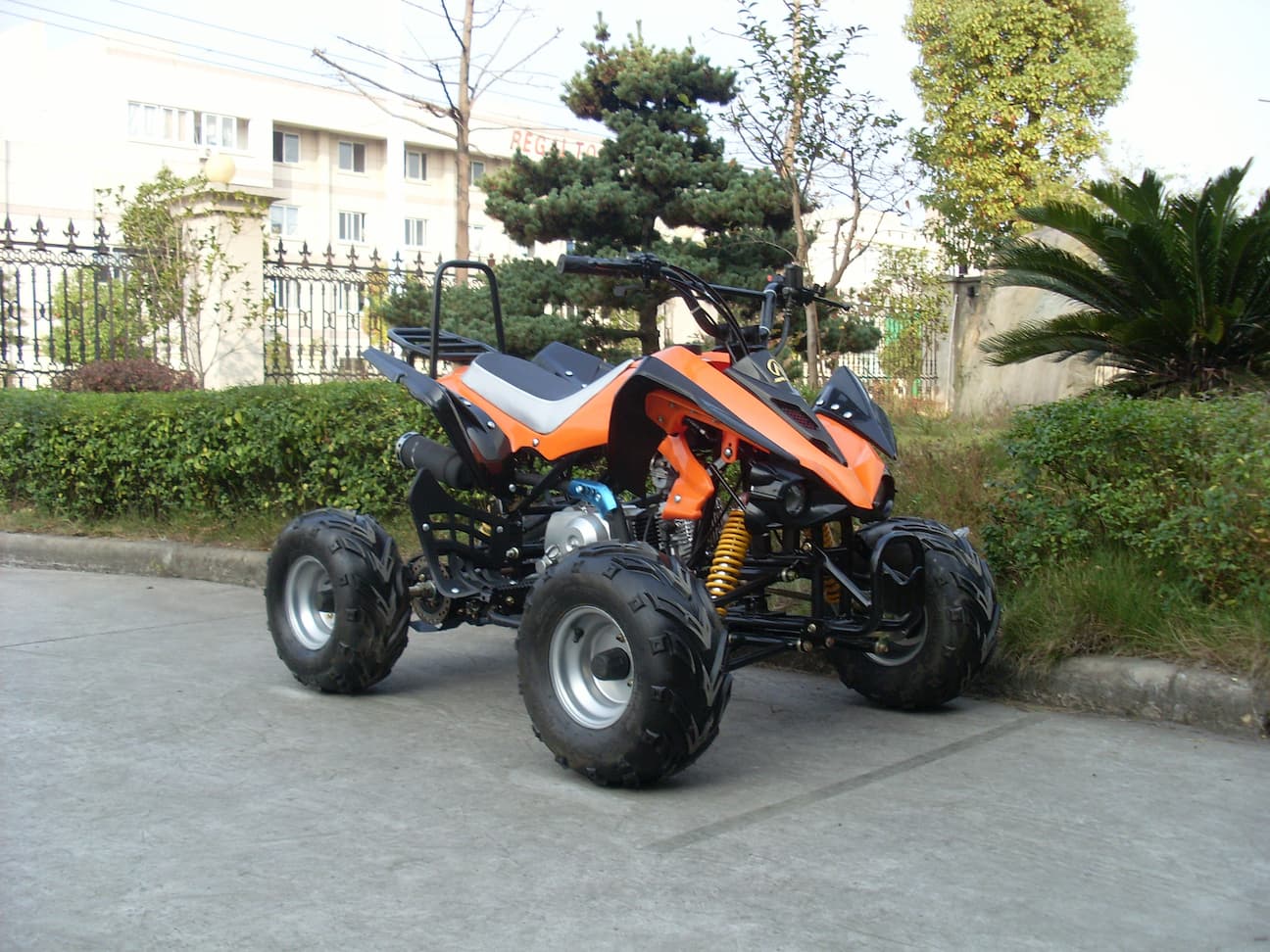

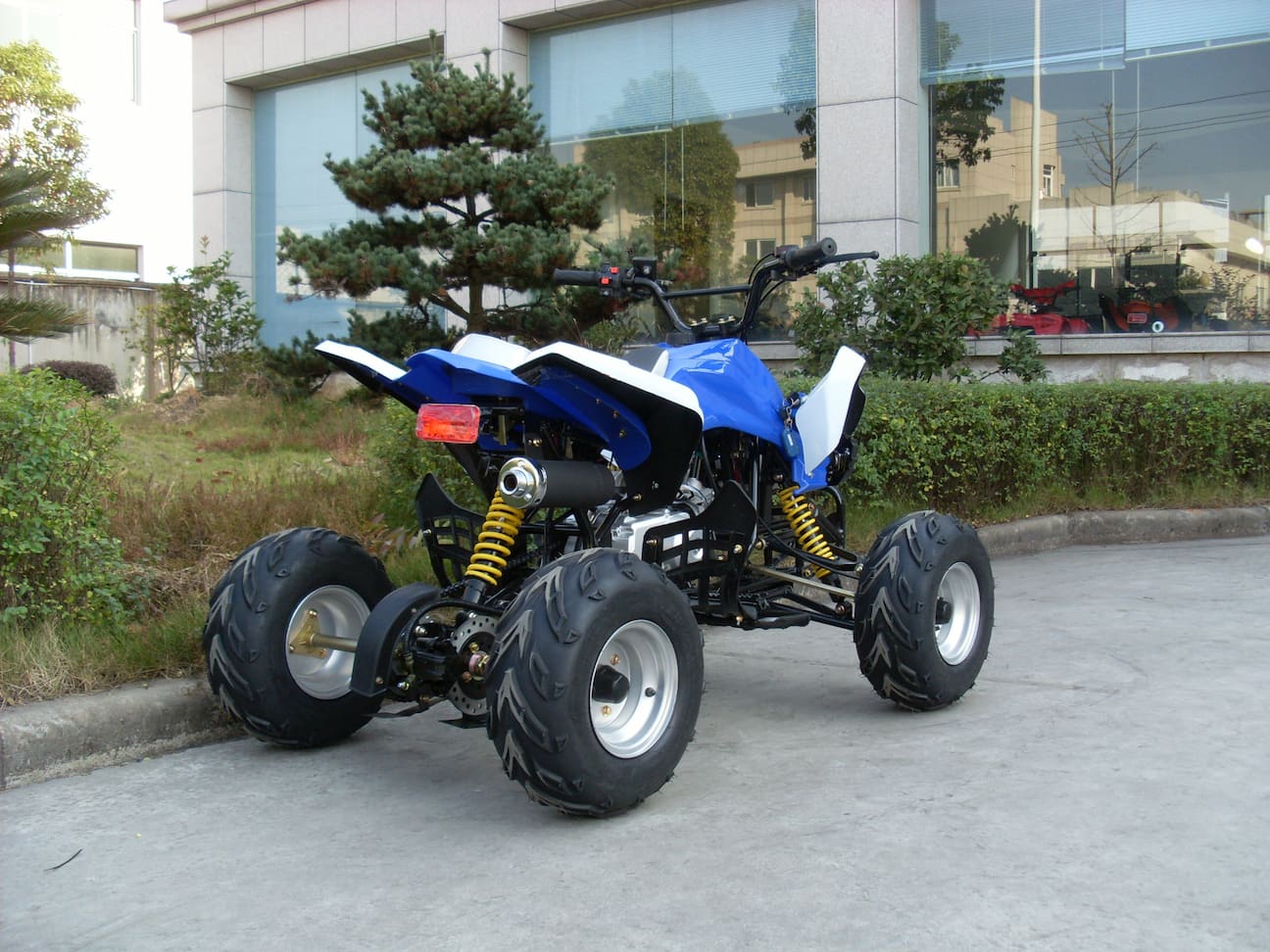

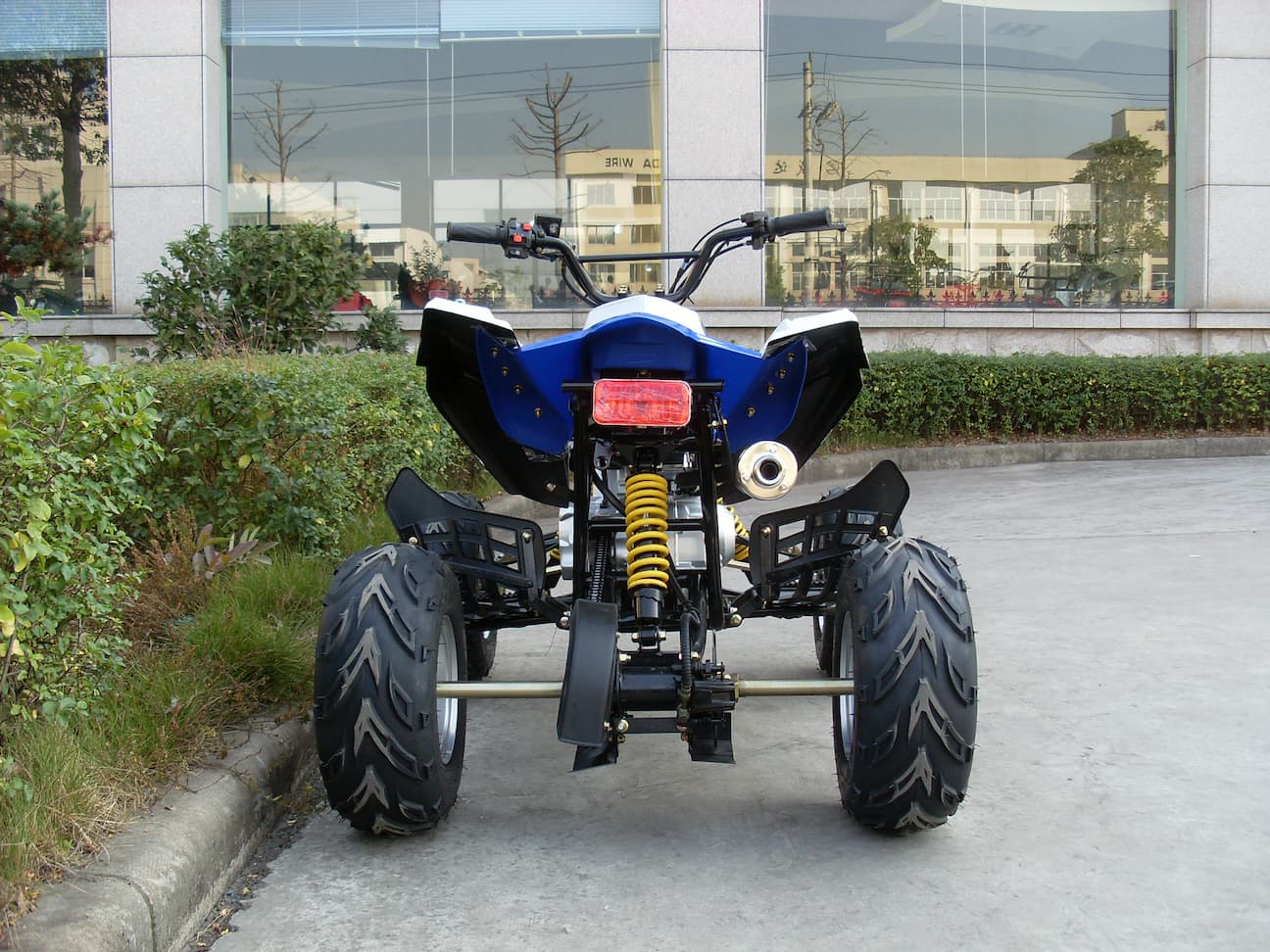

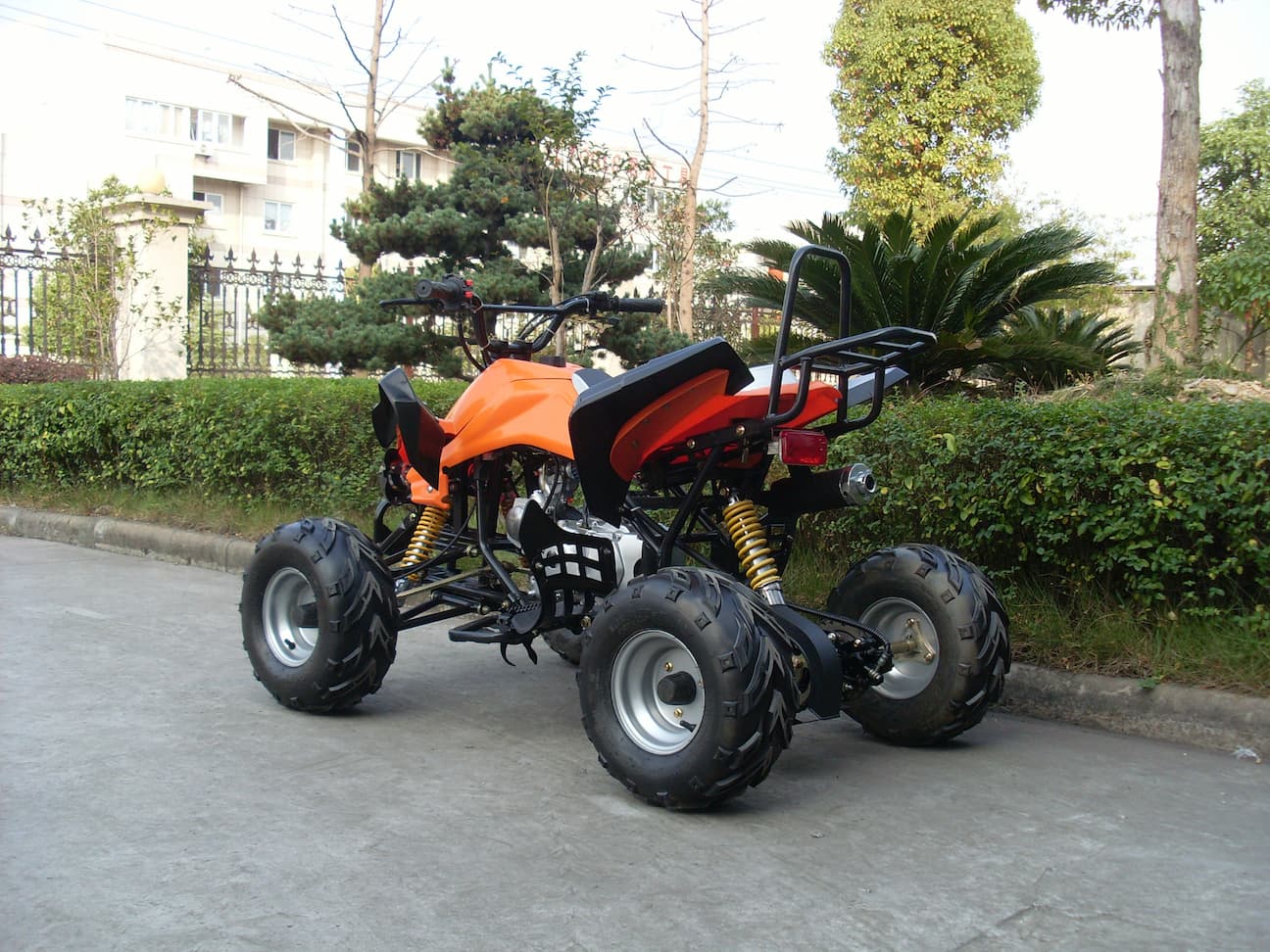

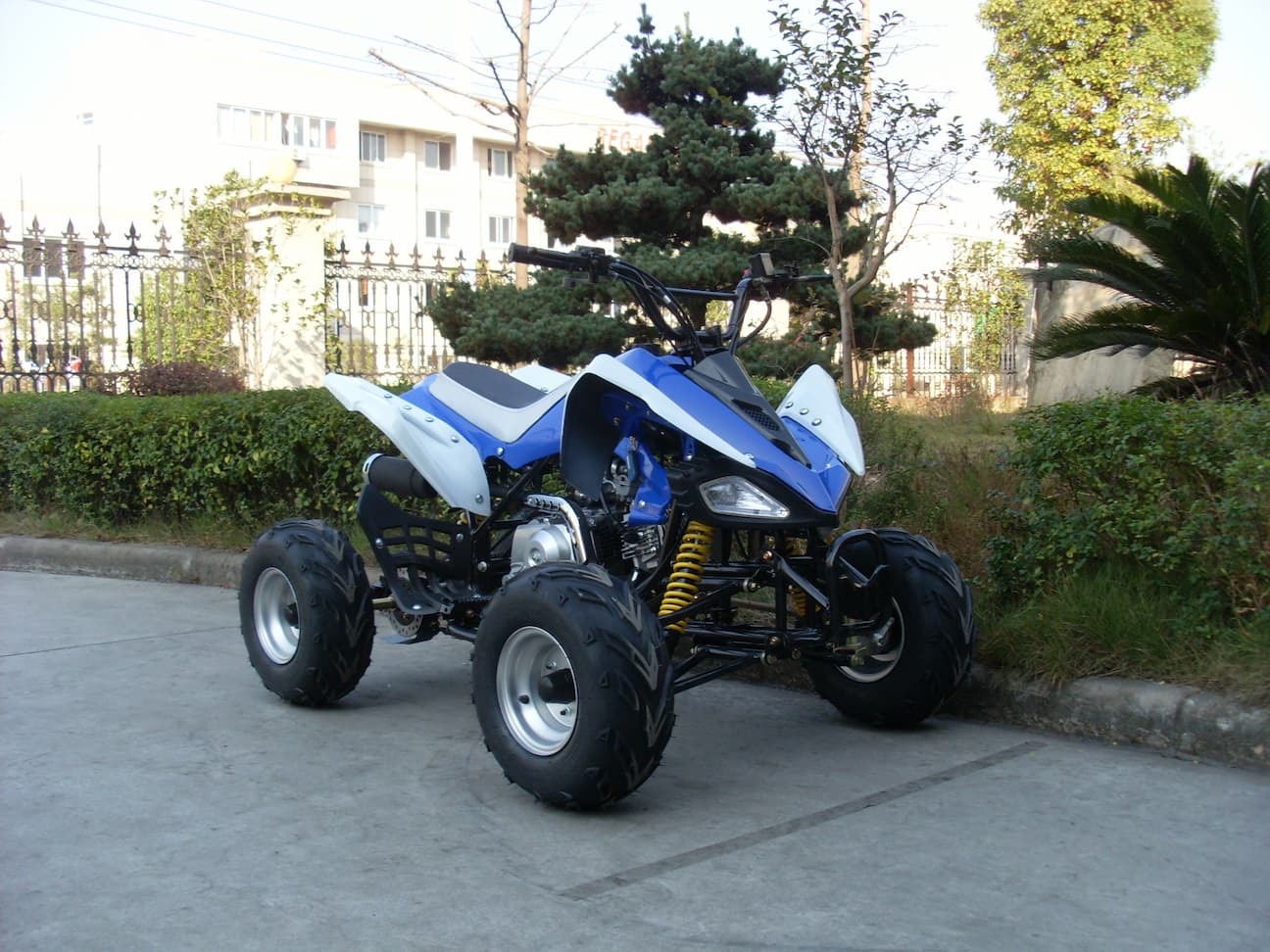

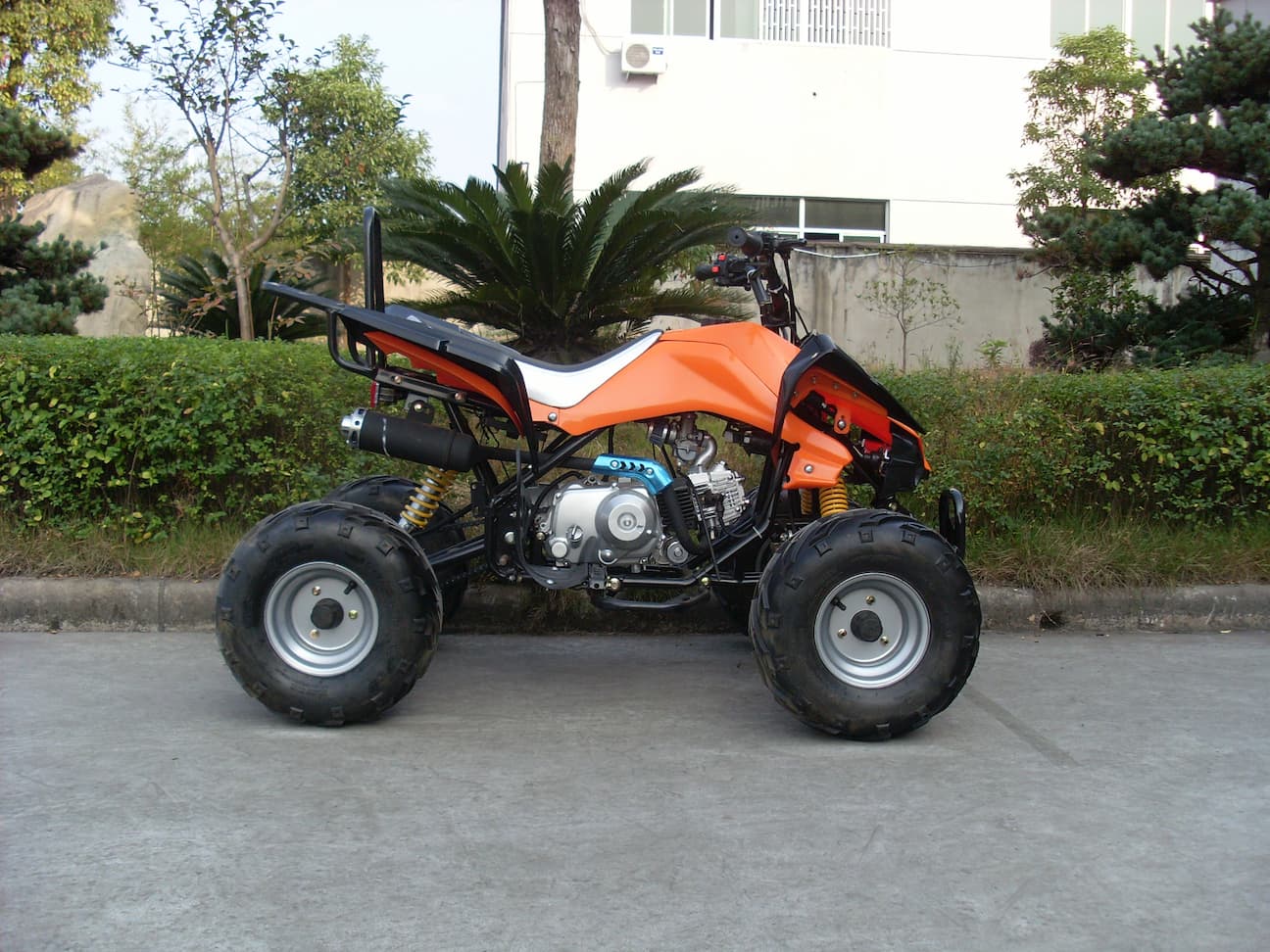

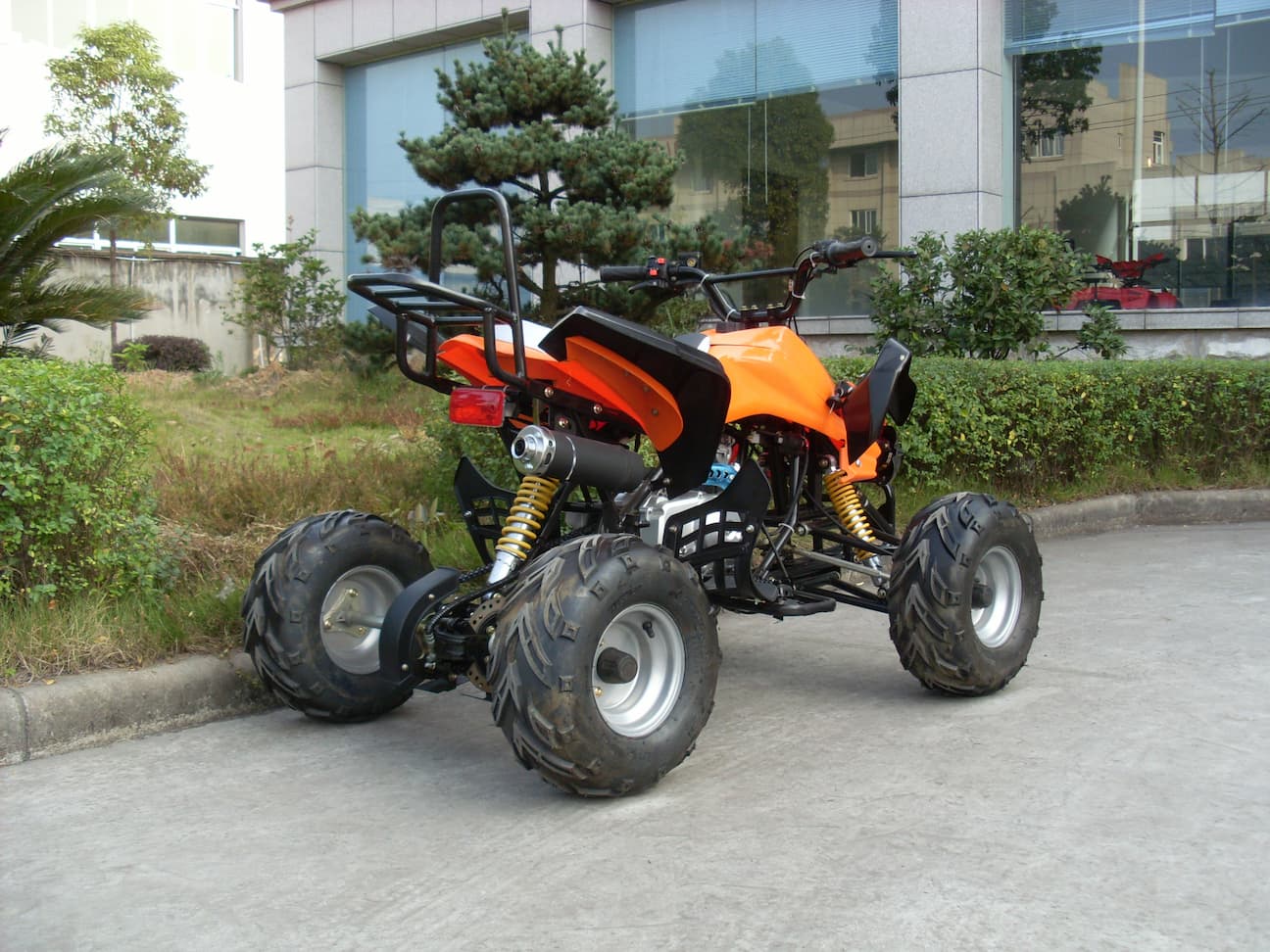

Product Details
 |
 |
 |
 |
 |
 |
Our Advantages
Yongkang Jinling Industry & Trade Co.,Ltd. is a professional manufacturer of various ATVs, pocket bikes, dirt bikes, electric&gas scooters,balanace scooters and mini scooters, with rich OEM/ODM experience. Well-equipped testing facilities and strong technical force also lead to such a complete and scientific quality management system. Our professional design team keeps researching and developing new products to provide the best products in this industry, ensuring our products can meet the ever-changing economic and social needs.
We have been exporting e-bikes to USA, European, South America, etc. All of our customers appreciate our quality and service.
Choose Yongkang Jinling, we can give you more
Standardization Production
Strong Team
Excellent Service
Packing
FAQ
1. What is the minimum order quantity?
The minimum order quantity is 1x20FT.
2. Can I order a sample?
Yes,You will pay 200 USD as sample fee to cover the extra costs.
3. How about quality warranty ?
our factory can offer 6 months for the plastic covers and 12 months for the engine and the vehicle frame.
4. What is your manufacture capacity?
Our factory manufacture capacity 30x40”HQ per month.150-200pcs one day.
5. What is the production and delivery time?
The production and delivery time is 20-30 days.
6. Can I become your factory products brand agent?
We would like to build agent.For this agent we have the sales quantity per year.the sales quantity must be more than 1000 pieces per year.
More Pictures:
Item No: JLA-21E Engine Type: 200cc/250cc,4 storke, Water Cooled. Max Torque: 17.5Nm/5000rpm Max Power: 13kw/7500rpm Vehicle Dimensions: 180 x 112 x 113cm Wheel Base: 115cm Load Capacity: 155kg Fuel Tank Capacity: 4L Gross Weight In Carton: 170kg Net Weight: 155kg Packing Size: 148 x 95 x 88cm 1PCS=2CARTONS(ONE IS VEHICLE AND ANOTHER IS WHEELS) 250cc water cooled with EEC for 2 passengers Conveyance:Qty/20' GP: 22 units;Qty/40' GP: 44 units;Qty/40' HQ: 66 units
Learn More
Essential details Place of Origin: Zhejiang, China Brand Name: JINLING Model Number: JLA-11 Engine Type: 110cc,125cc Gears: 4-speed,semi-automatic Wheel Size: 21x7-10(Front), 21x10-10(Rear) Fuel tank capacity : 4.5L Braking System: Front disc/ Rear disc Starting system: Electric start Battery Capacity: 12V,9AH Load capacity : 140kg
Learn More
Item No: JLA-13-1 ENGINE TYPE : GY6-150CC,4 STORKE MAX TORQUE : 10NM/5500RPM MAX POWER : 9.3KW/7500RPM BATTERY SPEC : 12V,9AH FRONT TIRE SPEC : 19X7-8 REAR TIRES SPEC : 18X9.5-8 VEHICLE DIMENSIONS : 158X120X110CM WHEEL BASE : 1150MM SEAT HEIGHT FROM GROUND : 84CM GROUND CLEARANCE : 130MM LOAD CAPACITY : 150KG FUEL TANK CAPACITY : 4.5L GROSS WEIGHT IN CARTON : 180KG NET WEIGHT : 160KG PACKING SIZE: 144X85X89CM
Learn More
Essential details Place of Origin: Zhejiang, China Brand Name: JINLING Model Number: JLA-24 Engine Type: 200cc,250cc Gears: Manual Clutch,4 fowarder gear,semi-automatic CVT,1 reverse gear Wheel Size: 23X7-10 (Front) 22X10-10(Rear) Fuel tank capacity : 4L Braking System: Front drum/ Rear disc Cooled System : Air or Water Cooled Battery Capacity: 12V,9AH Load capacity : 170kg
Learn More
Essential details Place of Origin: Zhejiang, China Brand Name: JINLING Model Number: JLA-931E Gears: Automatic CVT,R-N-F,reverse gear Wheel Size: 235/30-14 270/30-14 tire Alloy rim Fuel tank capacity : 7L Braking System: Front disc/ Rear disc Starting system: Electric start Cooled System: Water Cooled Max Speed(km/h): >75
Learn More
Essential details Place of Origin: Zhejiang, China Brand Name: JINLING Model Number: JLA-08 Gears: Automatic/4-speed,semi-automatic Wheel Size: 145/70-6 Fuel tank capacity : 3.2L Braking System: Front drum/ Rear disc Starting system: Electric start Battery Capacity: 12V,4AH Load capacity : 75kg
Learn More
Essential details Place of Origin: Zhejiang, China Brand Name: JINLING Model Number: JLA-04 Gears: Automatic Wheel Size: 145/70-6 Max Speed: <30km/h Braking System: Front drum/ Rear disc Starting system: Electric start Battery Capacity: 12V,4AH Max Power: 3.6KW/7500RPM
Learn More
Essential details Place of Origin: Zhejiang, China Brand Name: JINLING Model Number: JLA-05 Gears: Automatic/4-speed,semi-automatic Wheel Size: 145/70-6 Fuel tank capacity : 3.2L Braking System: Front drum/ Rear disc Starting system: Electric start Battery Capacity: 12V,4AH Load capacity : 75kg
