OEM 50CC Kids ATV Quad with EEC Approval

Home /

ATV&QUAD

/ OEM 50CC Kids ATV Quad with EEC Approval

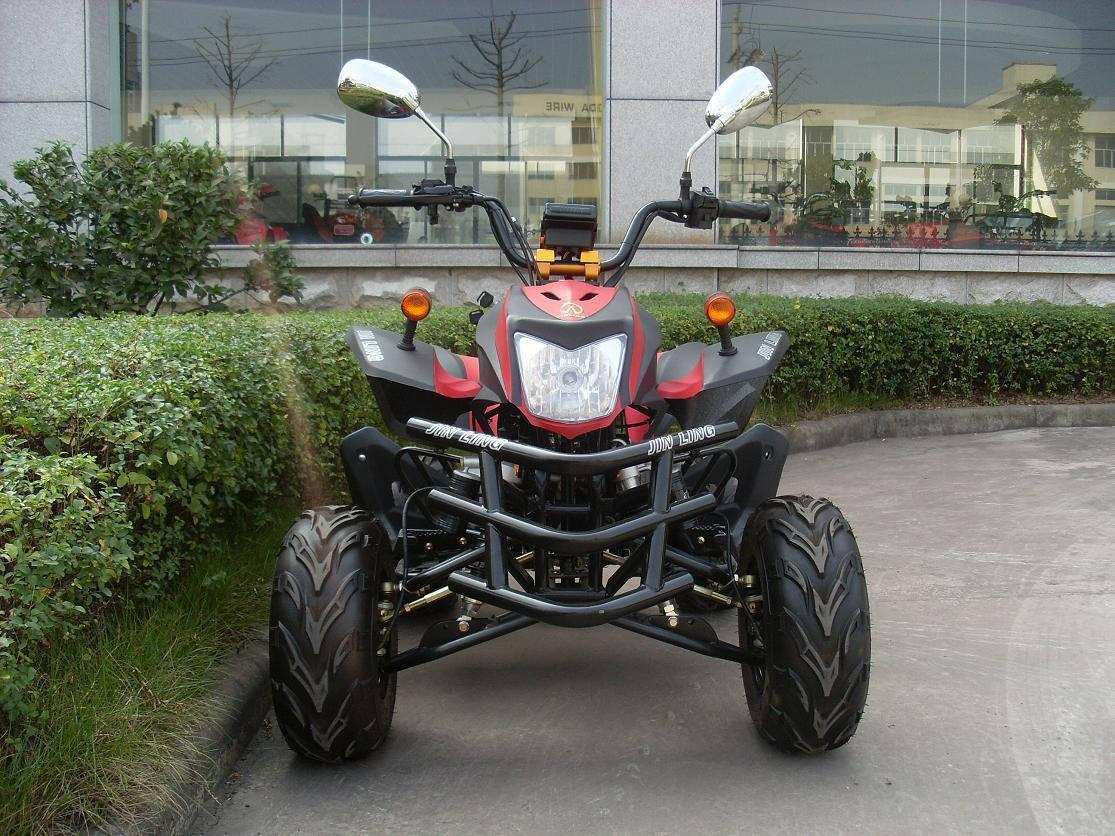

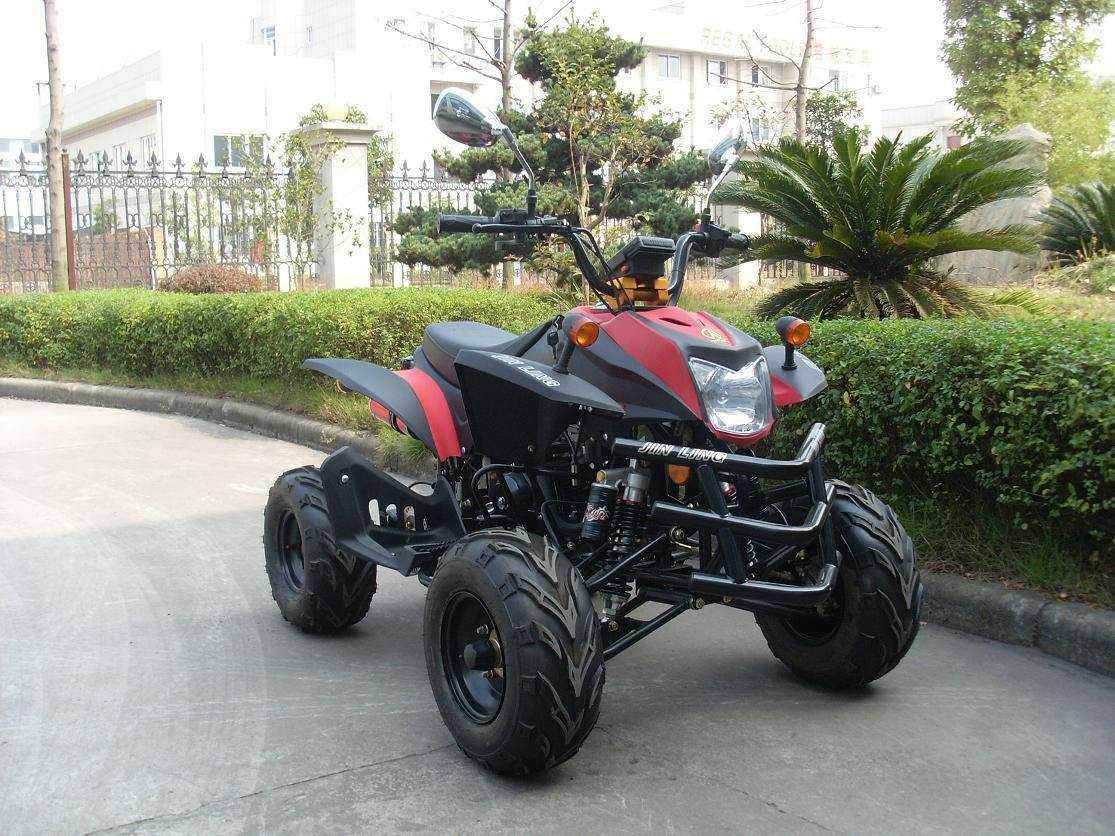

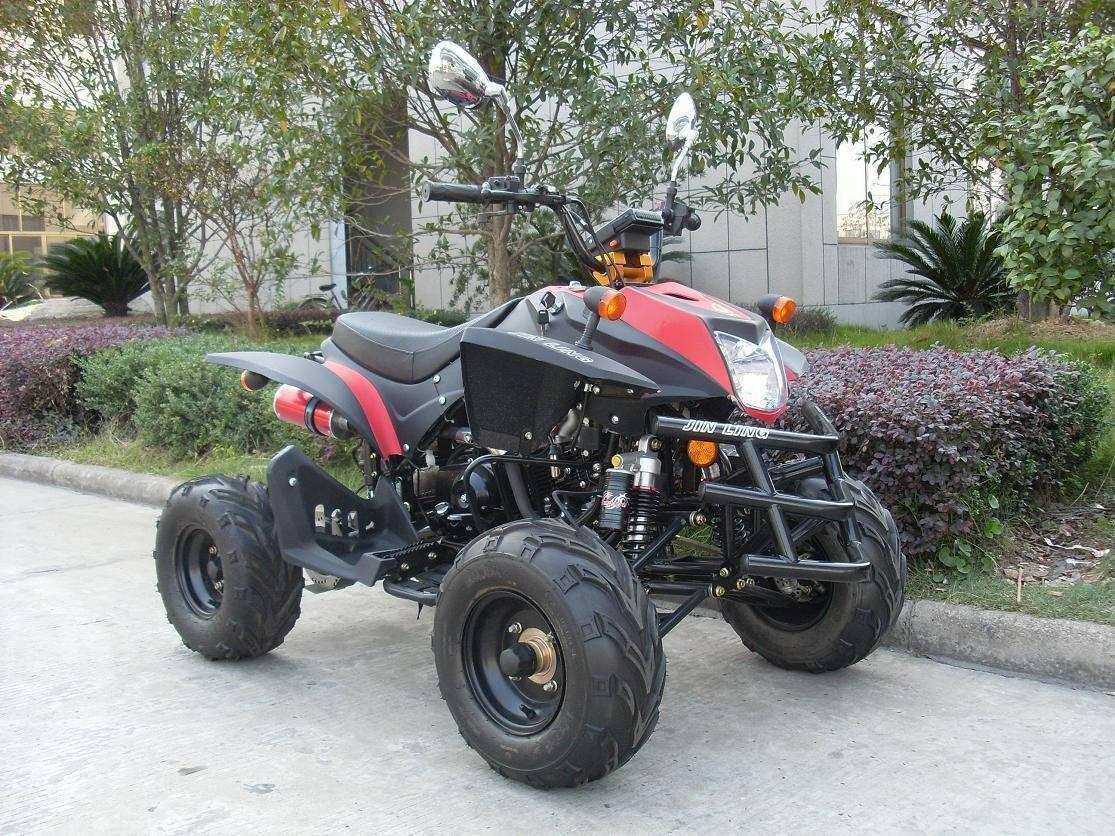

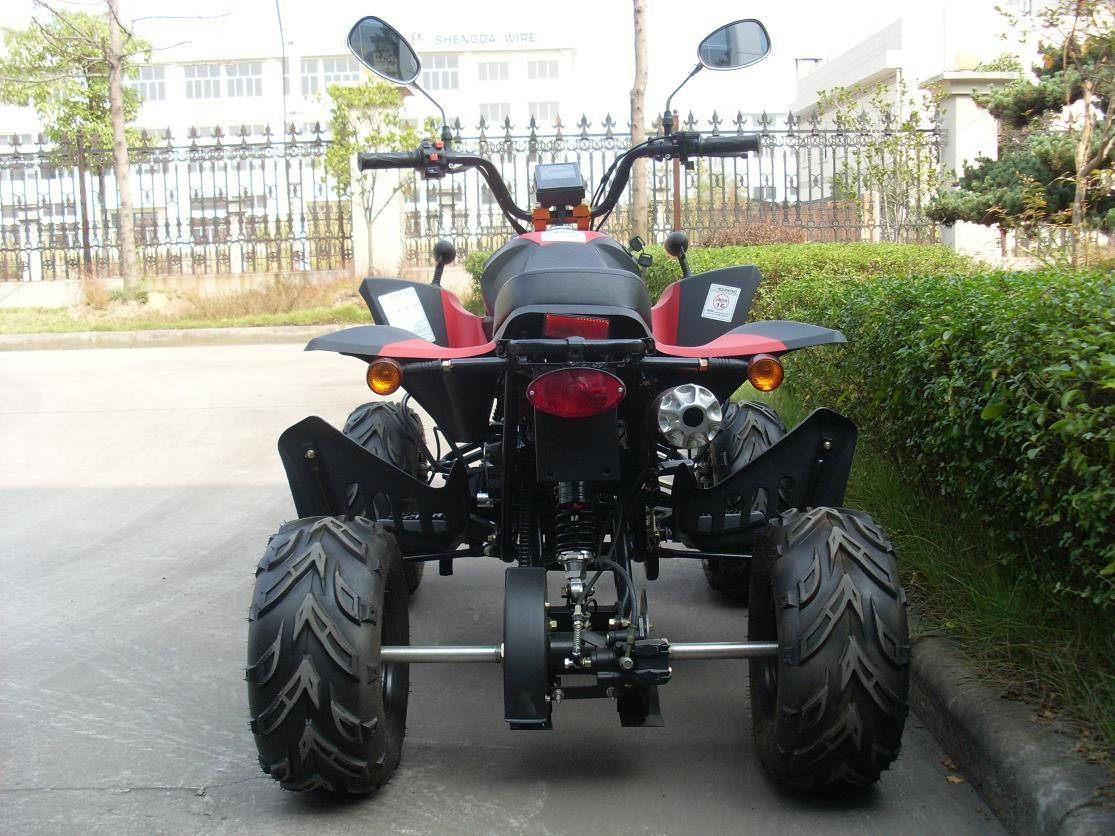

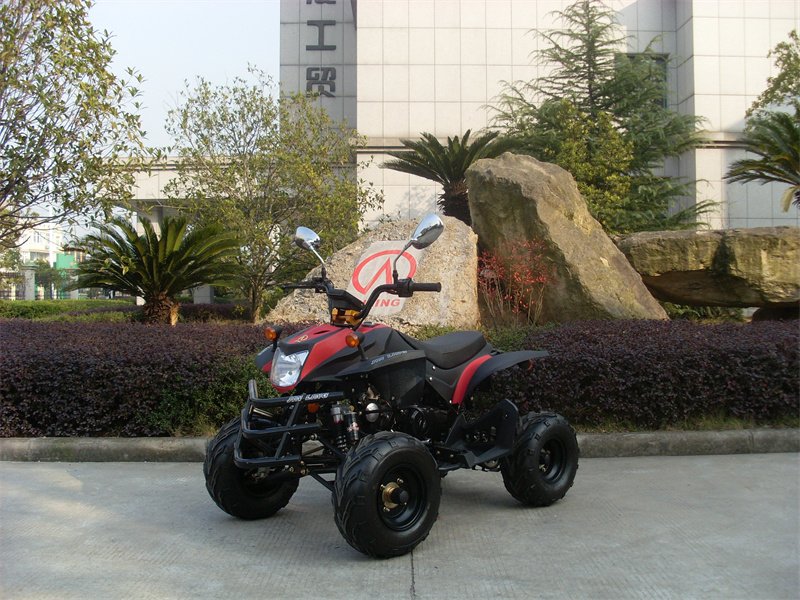

OEM 50CC Kids ATV Quad with EEC Approval
Essential details
Place of Origin:              Zhejiang, China
Brand Name:                  JINLING
Model Number:               JLA-07A
Engine Type:                  48cc
Max Torque:                   4.2nm/5000rpm
Max Power:                    3.0kw/8500rpm
Ignition Type:                  CDI
Fuel Tank Capacity:        3 .2L
Load Capacity:                75kg
Transmission:                 Automatic, Chain, Reverse Gear





IDENTIFICATION

Model No: JEA-07-05-8D-50 (Model No. in EEC paper:JL-07A )

Warranty: One year for engine, 6 months for other parts

Approval: CE,EEC

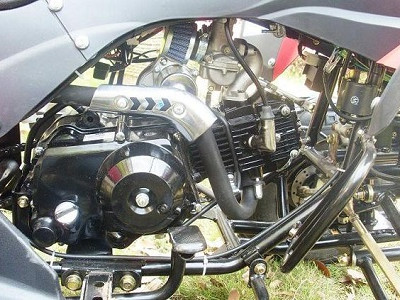

ENGINE
Cylinder: Single

Cooled System: Air

Engine Stroke: 4 Stroke

Bore*Stroke(mm): 41.4×49.5mm

Displacement(ml): 50cc

Max.power(kw/rpm): 2.6Kw/7000rpm

Max.torque(n.m/rpm): 4.2Nm/5000rpmm

Ignition Type: CDI

TRANSMISSION
Transmission Type: Automatic,chain,reverse gear

Primary Drive(Rear Wheel): Chain 4x2

Reverse: Yes

Max Speed(km/h): ≥45

WHEEL

Front wheel: 17x7-8

Rear wheel: 16x8-7

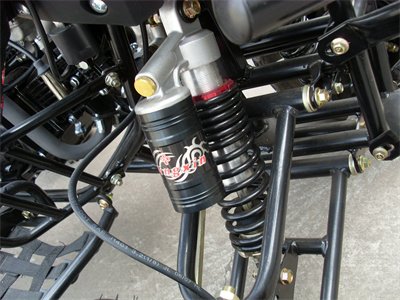

SUSPENSION

Front Suspension: Double A-Swing Arm

Rear Suspension: Mono Shock Swing Arm

BRAKE SYSTEM

Front brake: Disc

Rear brake: Disc

Braking distance: 8m(30km/h)

TECHINCAL SPECIFICATIONS
Product Dimensions(mm): 1450x925x982mm

Ground Clearance(mm): 100

Wheelbase(mm): 960mm

Mini Turning Radius(mm): 2800mm

Gross weight(kgs): 112

Net weight(kgs): 104

Fuel Capacity(L): 3

Fuel consumption: 2.8L/100KM

SEAT

Seat Height(mm): 710

Number of Seats: 1

COLOR

Standard Color: Red/Yellow/Blue/Green/Black/White

Optional Color: Green camo,Yellow camo,Snow Camo,Metallic,Carbon

LOADING

Packing Size(mm): 1310X840X660 (Steel frame inside,carton outside)

Quantity: 20FT:34PCS; 40HQ:92PCS

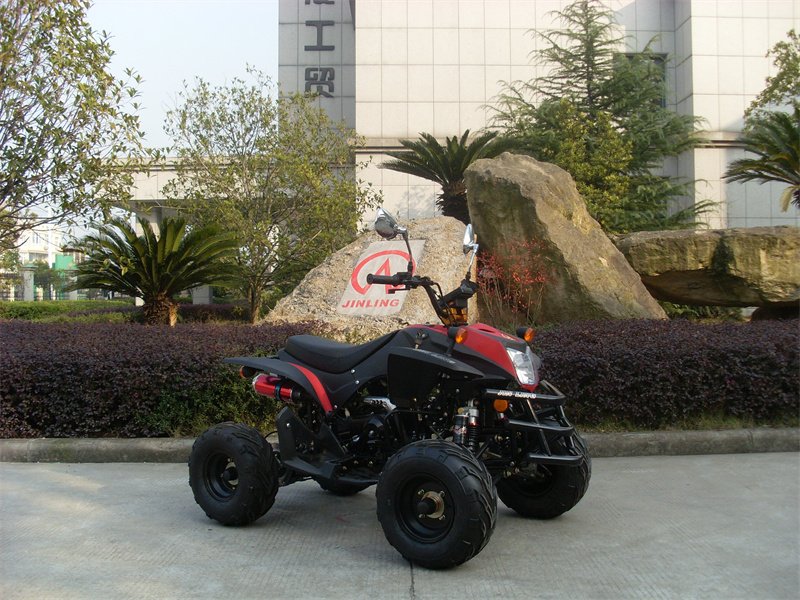

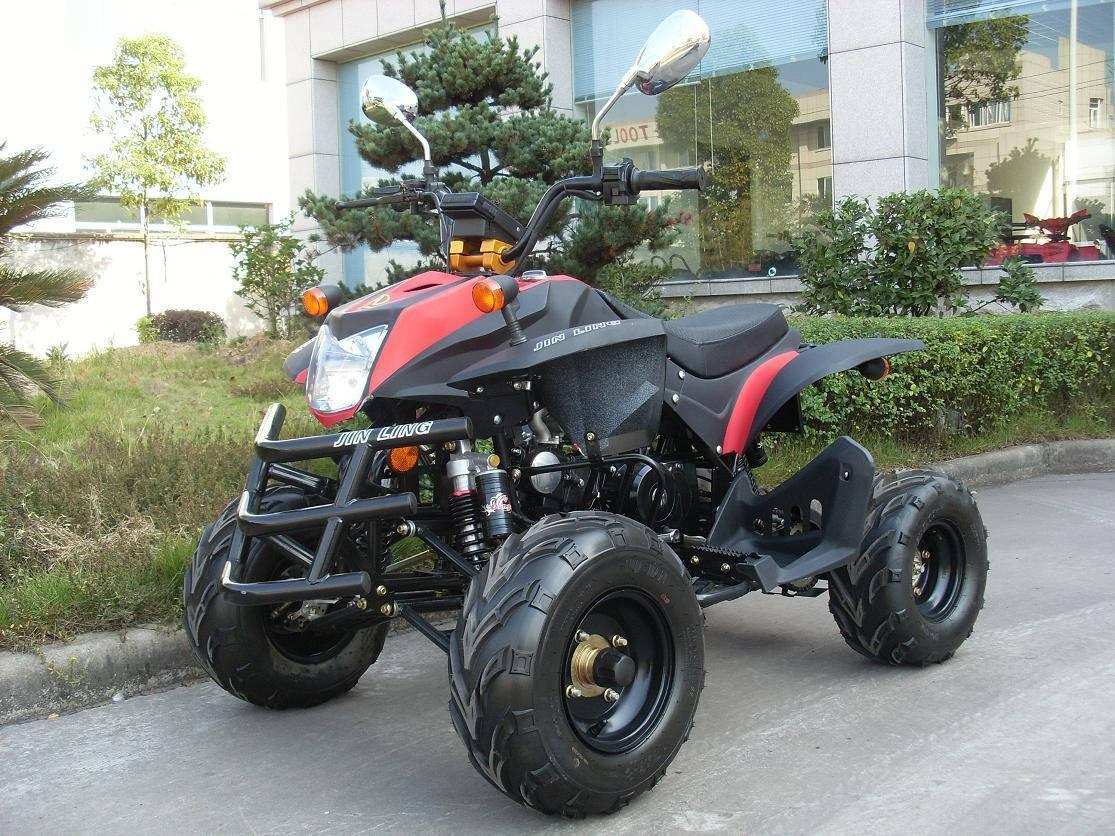

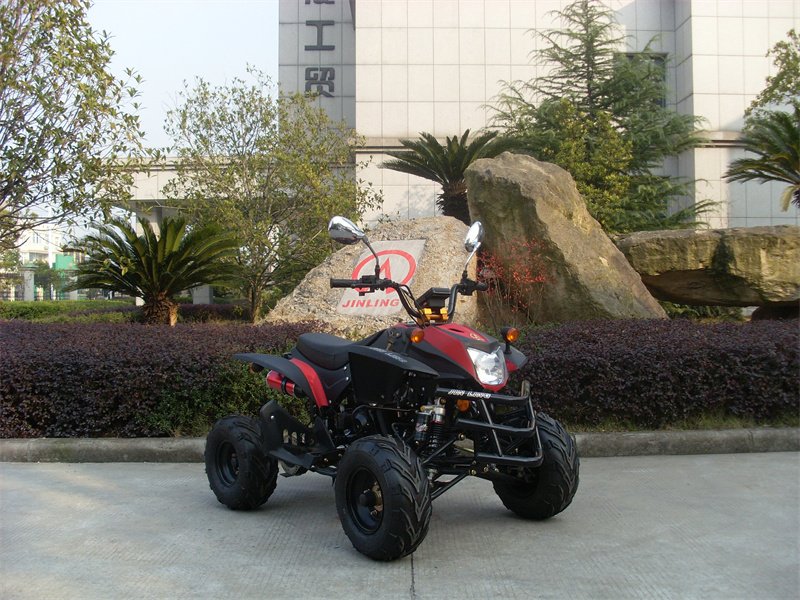

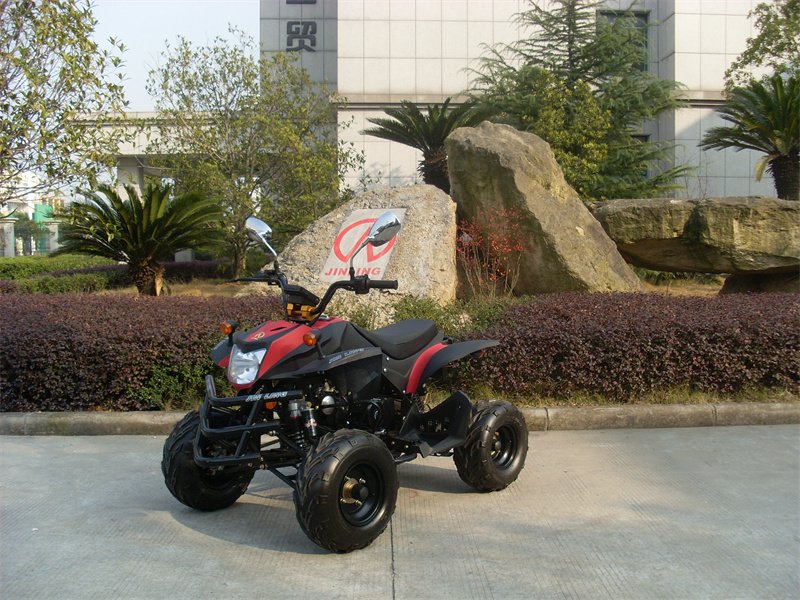

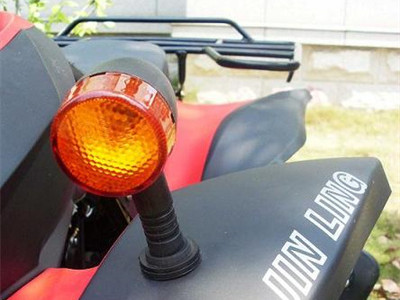

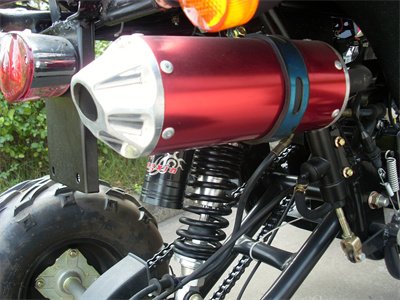

Product Details



Our Advantages

Yongkang Jinling Industry & Trade Co.,Ltd. is a professional manufacturer of various ATVs, pocket bikes, dirt bikes, electric&gas scooters,balanace scooters and mini scooters, with rich OEM/ODM experience. Well-equipped testing facilities and strong technical force also lead to such a complete and scientific quality management system. Our professional design team keeps researching and developing new products to provide the best products in this industry, ensuring our products can meet the ever-changing economic and social needs.

We have been exporting e-bikes to USA, European, South America, etc. All of our customers appreciate our quality and service.

Choose Yongkang Jinling, we can give you more

  • # Standardization Production
    Standardization production (in compliance with ISO production and management, in accordance with 6S total management). The service time of product is long, ranking the top in the same trade.
  • # Strong Team
    Our factory has strong production team,research and development team,foreign trade team and after-sale team.Strong research and development ability, good seizing ability of market trend, valued brand image.
  • # Excellent Service
    We ensure to provide high quality products for your satisfaction, Our unmatched service standardsare seen in both our products and our support team

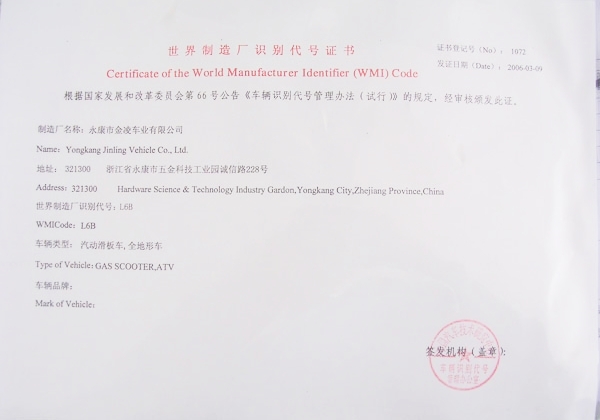

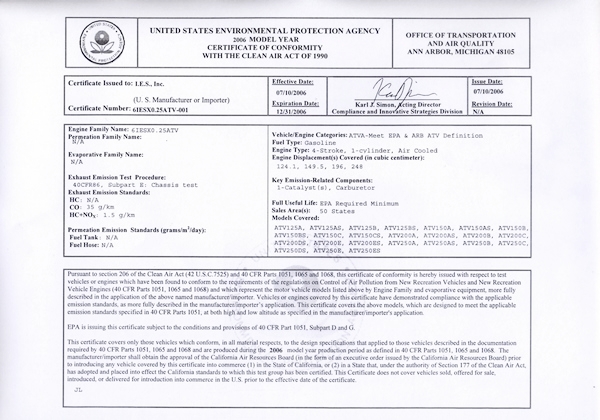

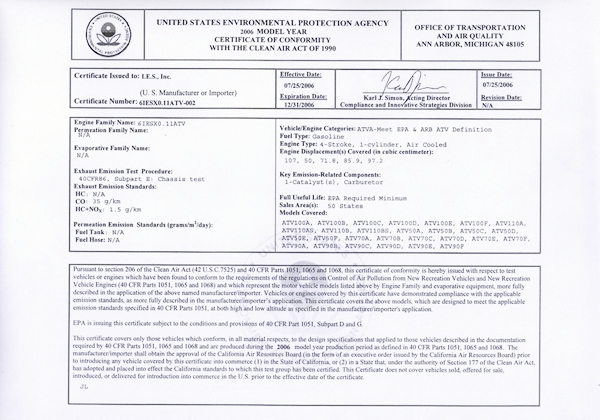

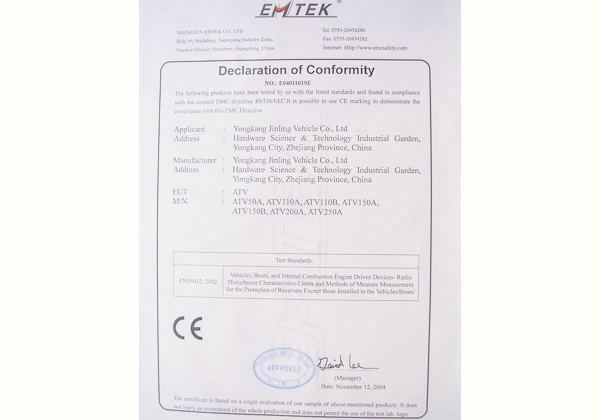

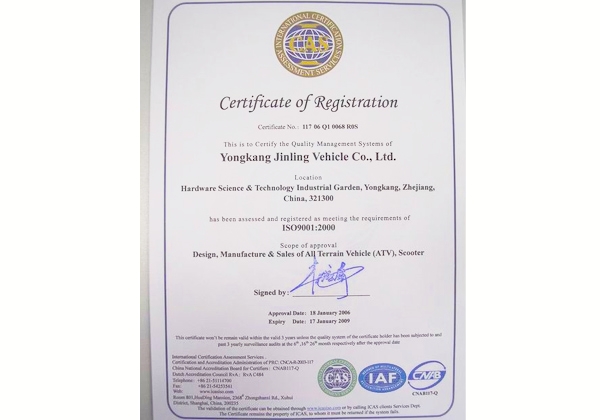

Certificate



FAQ

1. What is the minimum order quantity?

The minimum order quantity is 1x20FT.



2. Can I order a sample?

Yes,You will pay 200 USD as sample fee to cover the extra costs.



3. How about quality warranty ?

our factory can offer 6 months for the plastic covers and 12 months for the engine and the vehicle frame.



4. What is your manufacture capacity?

Our factory manufacture capacity 30x40”HQ per month.150-200pcs one day.



5. What is the production and delivery time?

The production and delivery time is 20-30 days.



6. Can I become your factory products brand agent?

We would like to build agent.For this agent we have the sales quantity per year.the sales quantity must be more than 1000 pieces per year.
