50cc automatic kids ATV quad with CE
Essential details
Place of Origin:            Zhejiang, China
Brand Name:                JINLING
Model Number:            JLA-02
Gears:                            Automatic
Wheel Size:                   145/70-6
Max Speed:                   ≥50
Braking System:          Front drum/ Rear disc
Starting system:          Electric start
Battery Capacity:        12V,4AH
Max Power:                 3.6KW/7500RPM

IDENTIFICATION:

Model No.: JLA-02

Warranty: one year for engine, 6months for other parts

Approval: CE

ENGINE:

Cylinder: Single

Cooled System: Air

Engine Stroke: 4 Stroke

Bore*Stroke(mm): 47×49.5mm

Displacement(ml)  : 50cc 70cc  90cc 110cc

Max.power(kw/rpm):  3.0Kw/8500rpm/ ,3.0kw/7500rpm,3.3kw/7500rpm,3.6kw/7500rpm

Max.torque(n.m/rpm): 4.2Nm/5000rpm , 4.2Nm/5000rpm, 5.2Nm/5000rpm, 5.5Nm/5000rpm

Ignition Type: CDI

TRANSMISSION:

Transmission Type: Automatic,chain

Primary Drive(Rear Wheel): Chain  4x2

Reverse: No

Max Speed(km/h): ≥50

WHEEL:

Front  wheel: 145/70-6

Rear  wheel: 145/70-6

SUSPENSION:

Front Suspension: Double  A-Swing Arm

Rear Suspension  : Mono Shock Swing Arm

BRAKE SYSTEM :

Front brake: Drum

Rear brake: Disc

Braking distance  : 8m(30km/h)

TECHINCAL SPECIFICATIONS :

Product Dimensions(mm): 1270x680x880mm

Ground Clearance(mm): 100

Wheelbase(mm): 800

Mini Turning Radius(mm): 2800mm

gross weight(kgs): 77

net weight(kgs): 70

Fuel Capacity(L): 3.2

Fuel consumption: 2.8L/100KM

SEAT :

Seat Height(mm): 590

Number of Seats: 1

COLOR :

Standard Color: Red/Yellow/Blue/Green/Black/White

Optional Color: Green camo, Yellow camo, Snow Camo, Metallic, Carbon

LOADING :

Packing Size(mm): 1150x670x660    (Steel frame inside, carton outside)

Quantity: 20FT:51PCS,   40FT:102PCS,  40HQ:140PCS



Product Details:



Our Advantages

Yongkang Jinling Industry & Trade Co.,Ltd. is a professional manufacturer of various ATVs, pocket bikes, dirt bikes, electric&gas scooters,balanace scooters and mini scooters, with rich OEM/ODM experience. Well-equipped testing facilities and strong technical force also lead to such a complete and scientific quality management system. Our professional design team keeps researching and developing new products to provide the best products in this industry, ensuring our products can meet the ever-changing economic and social needs.

We have been exporting e-bikes to USA, European, South America, etc. All of our customers appreciate our quality and service.

Choose Yongkang Jinling, we can give you more

  • # Standardization Production
    Standardization production (in compliance with ISO production and management, in accordance with 6S total management). The service time of product is long, ranking the top in the same trade.
  • # Strong Team
    Our factory has strong production team,research and development team,foreign trade team and after-sale team.Strong research and development ability, good seizing ability of market trend, valued brand image.
  • # Excellent Service
    We ensure to provide high quality products for your satisfaction, Our unmatched service standardsare seen in both our products and our support team
Certificate



FAQ

1. What is the minimum order quantity?

The minimum order quantity is 1x20FT.



2. Can I order a sample?

Yes,You will pay 200 USD as sample fee to cover the extra costs.



3. How about quality warranty ?

our factory can offer 6 months for the plastic covers and 12 months for the engine and the vehicle frame.



4. What is your manufacture capacity?

Our factory manufacture capacity 30x40”HQ per month.150-200pcs one day.



5. What is the production and delivery time?

The production and delivery time is 20-30 days.



6. Can I become your factory products brand agent?

We would like to build agent.For this agent we have the sales quantity per year.the sales quantity must be more than 1000 pieces per year.

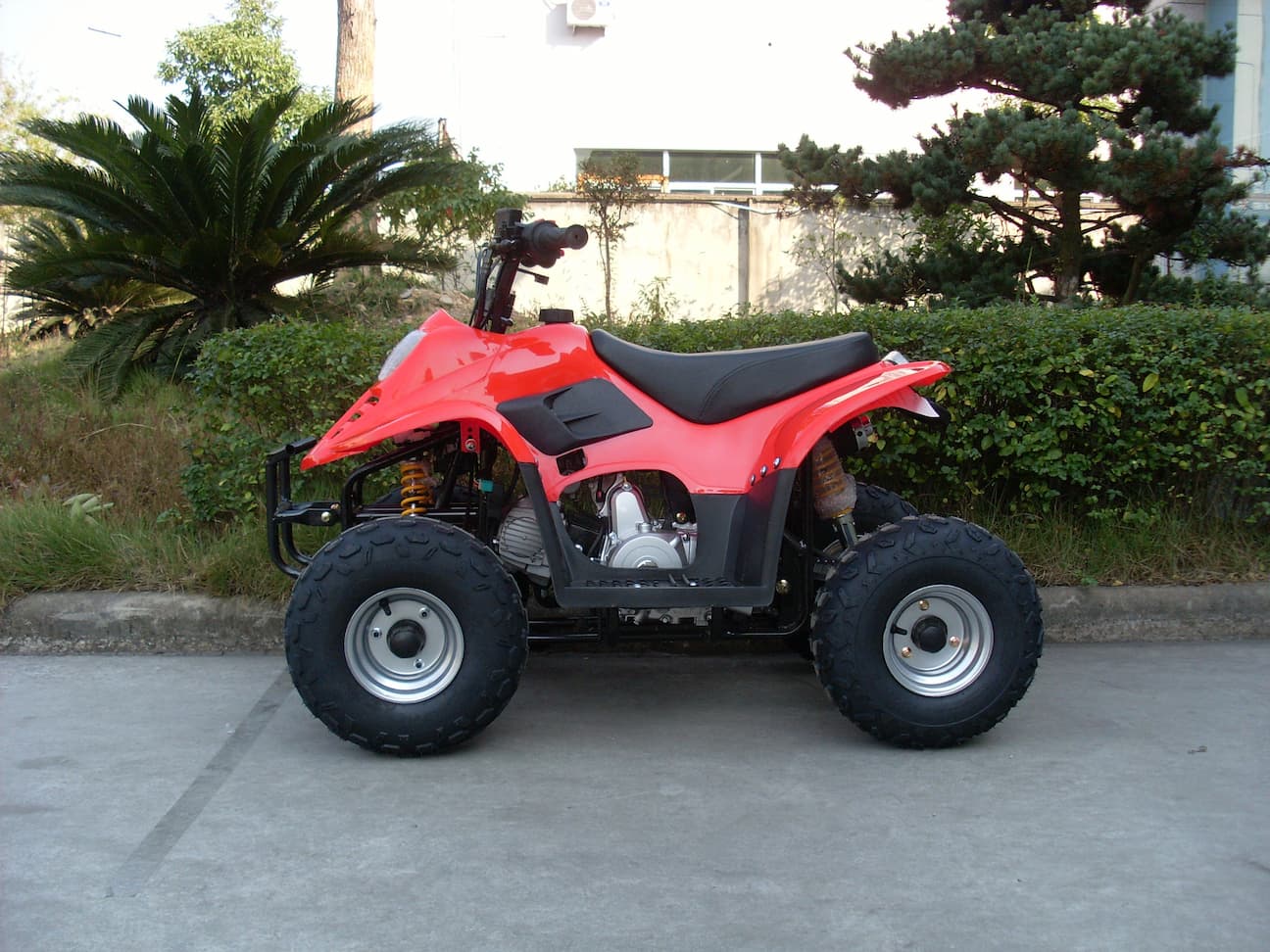

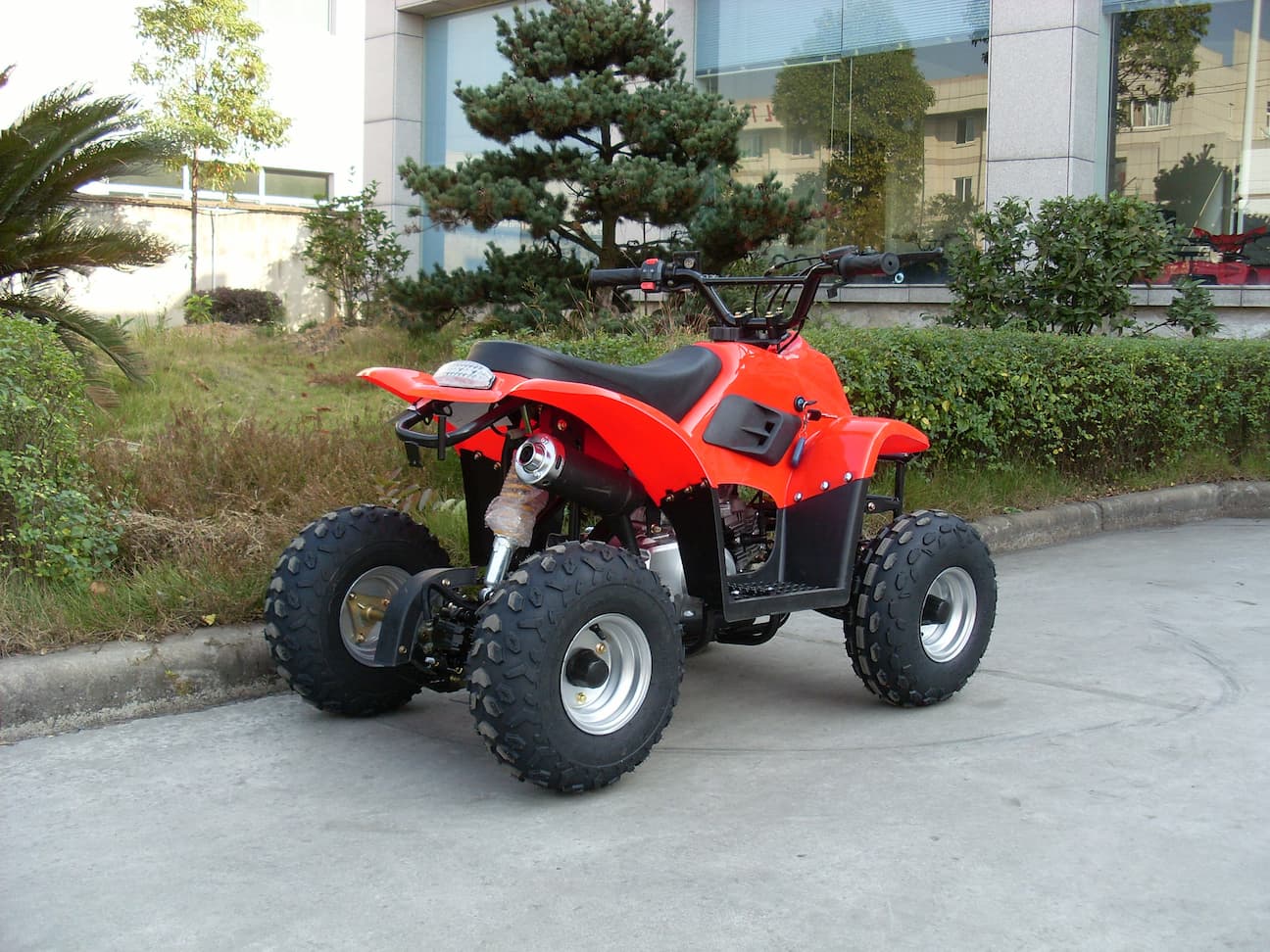

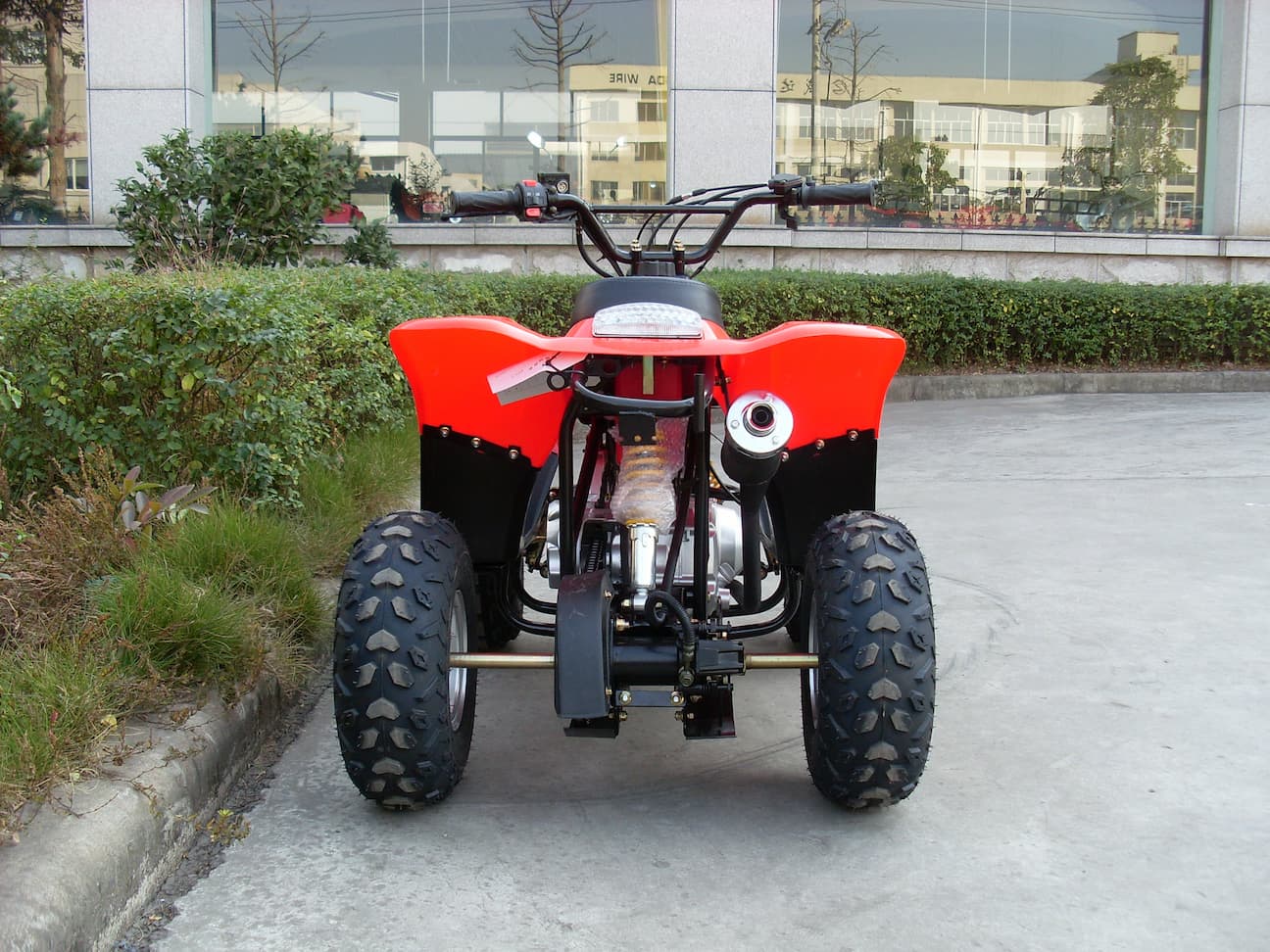

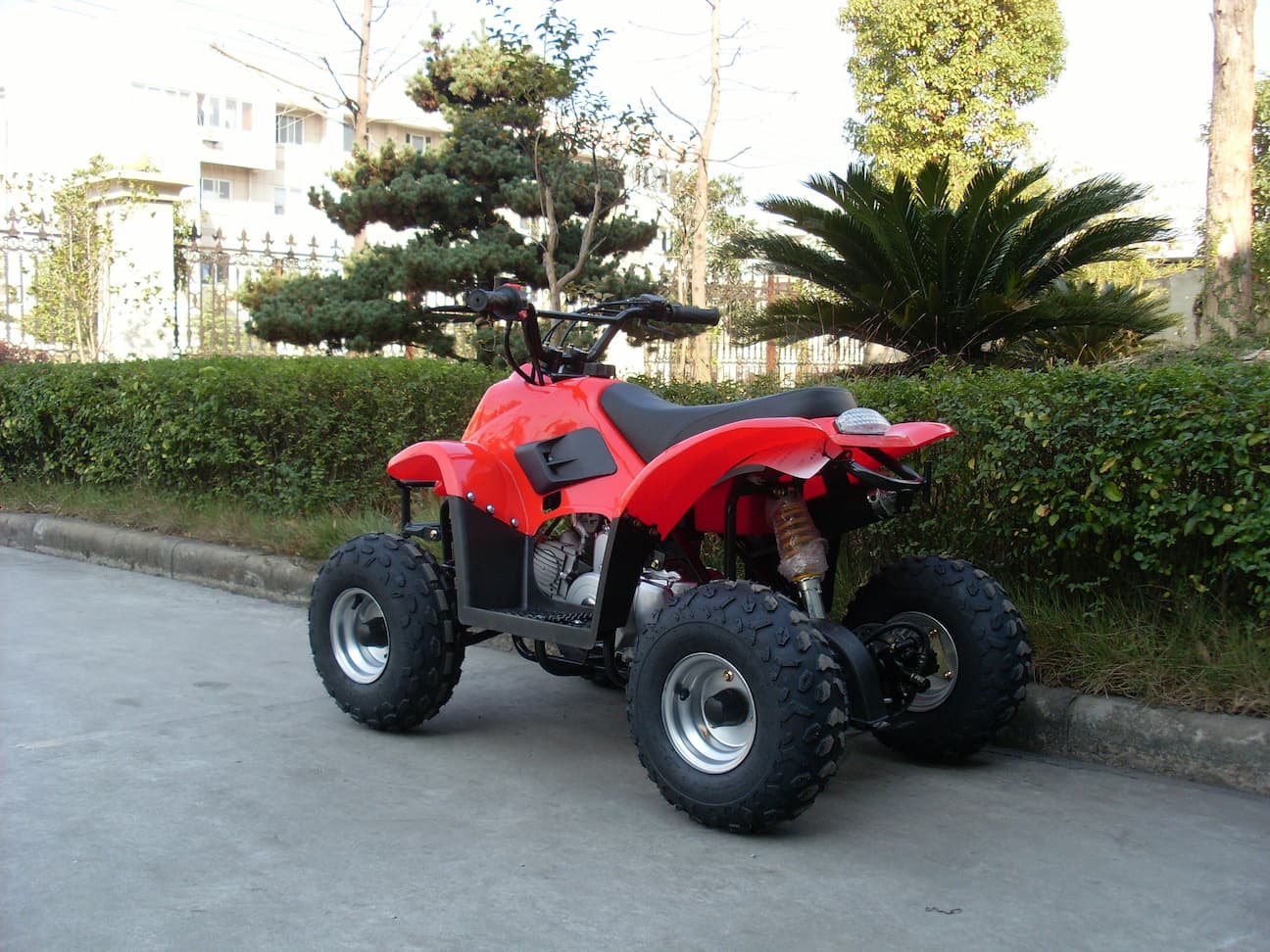

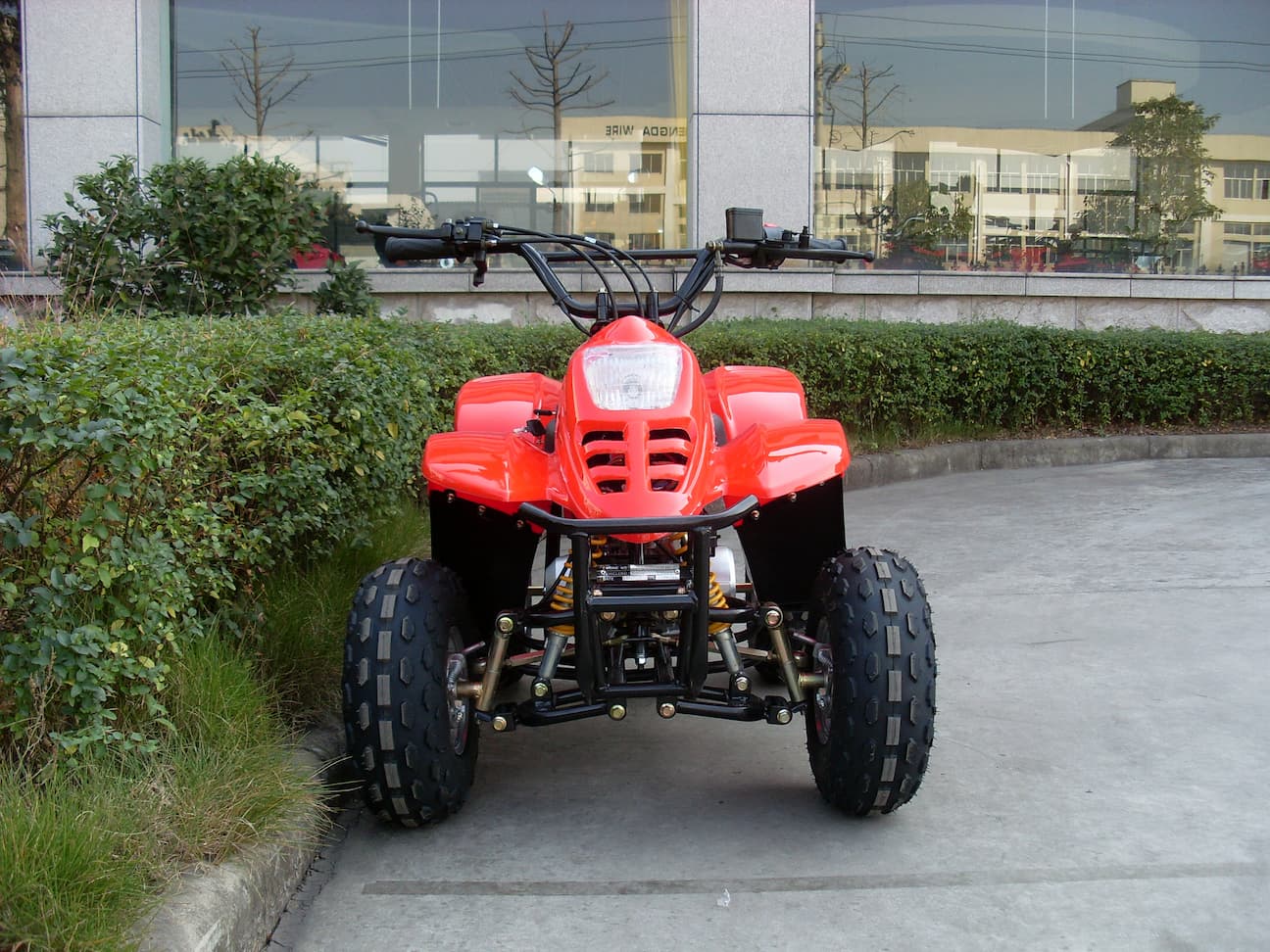

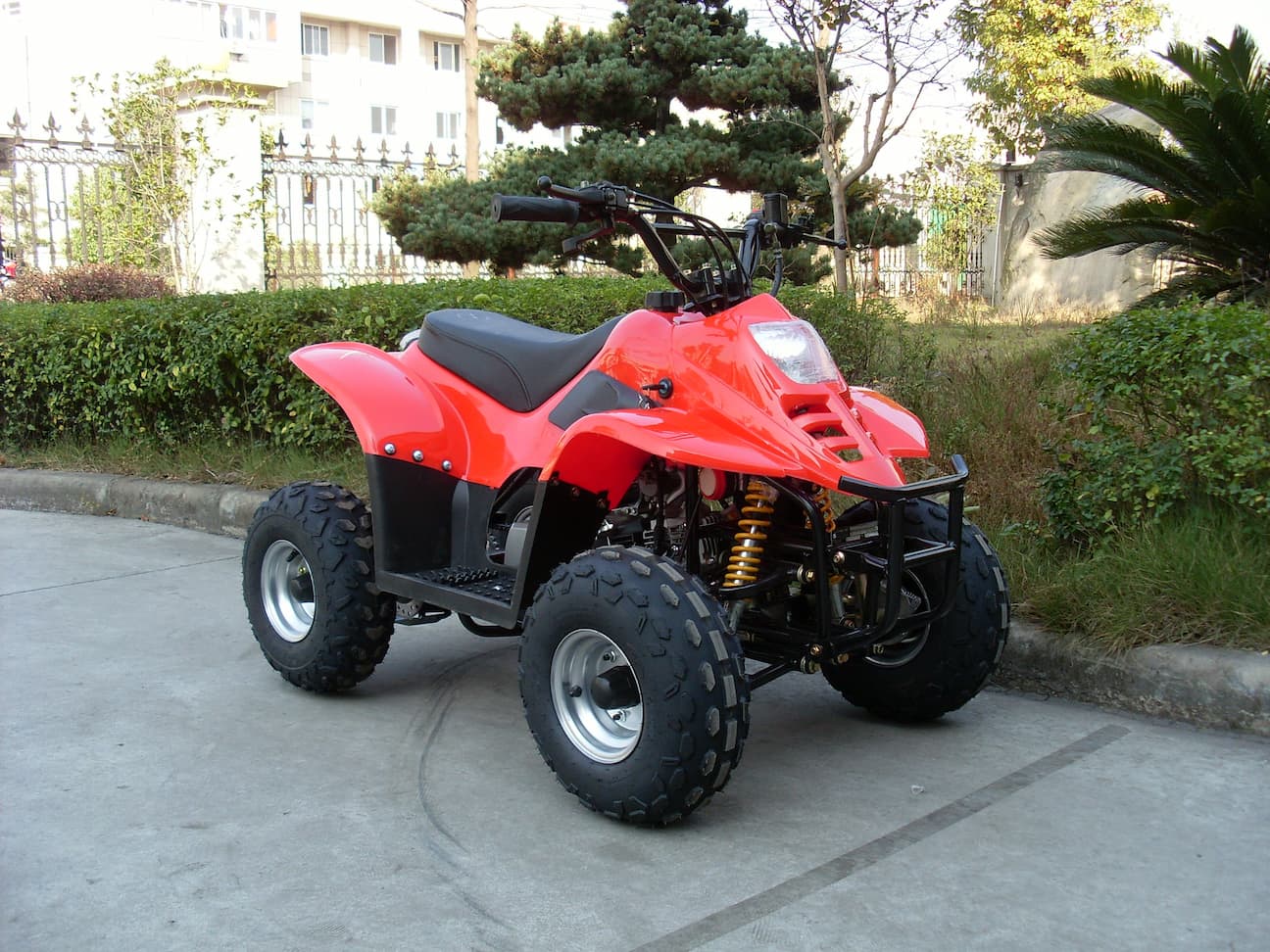

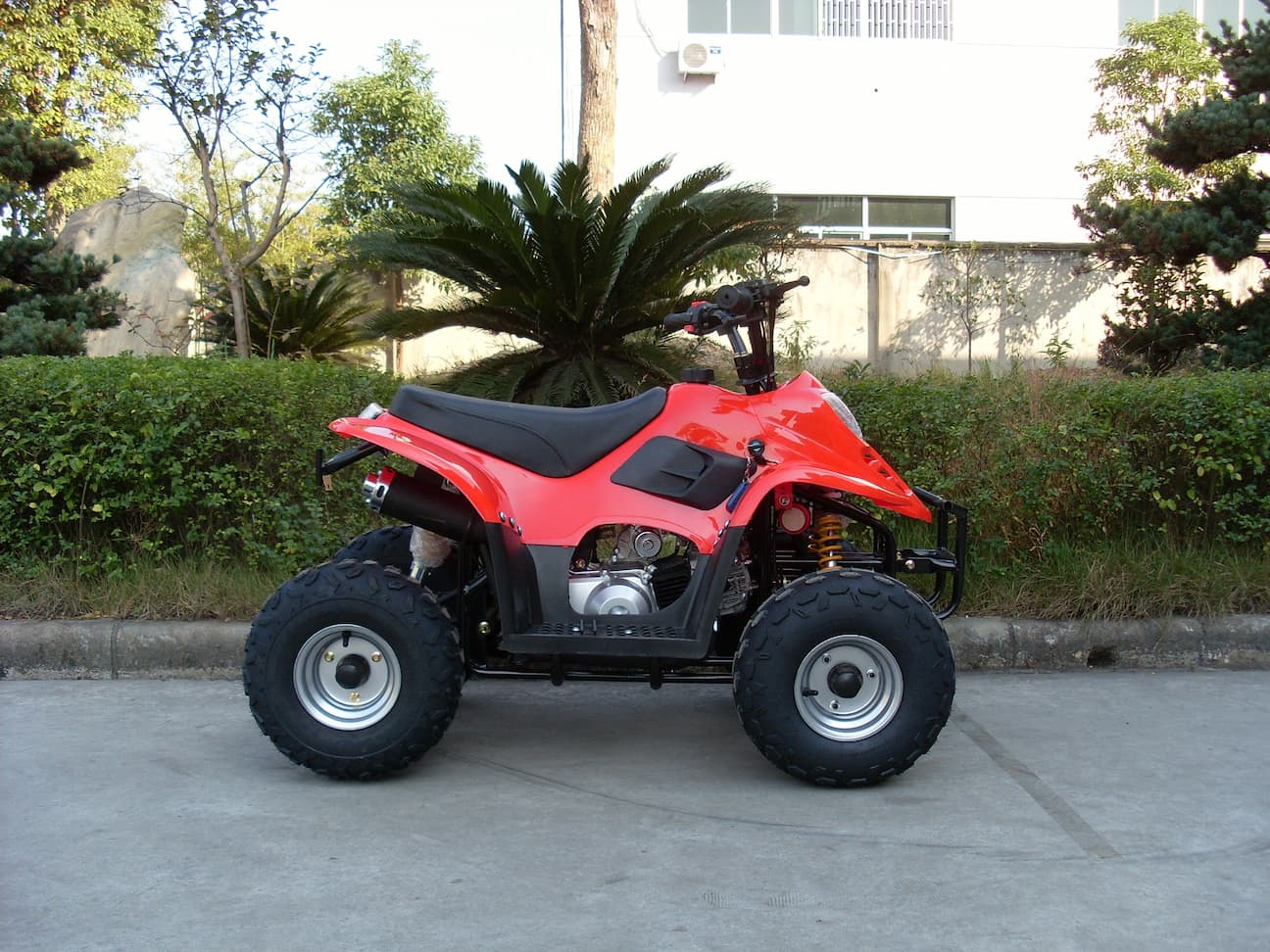

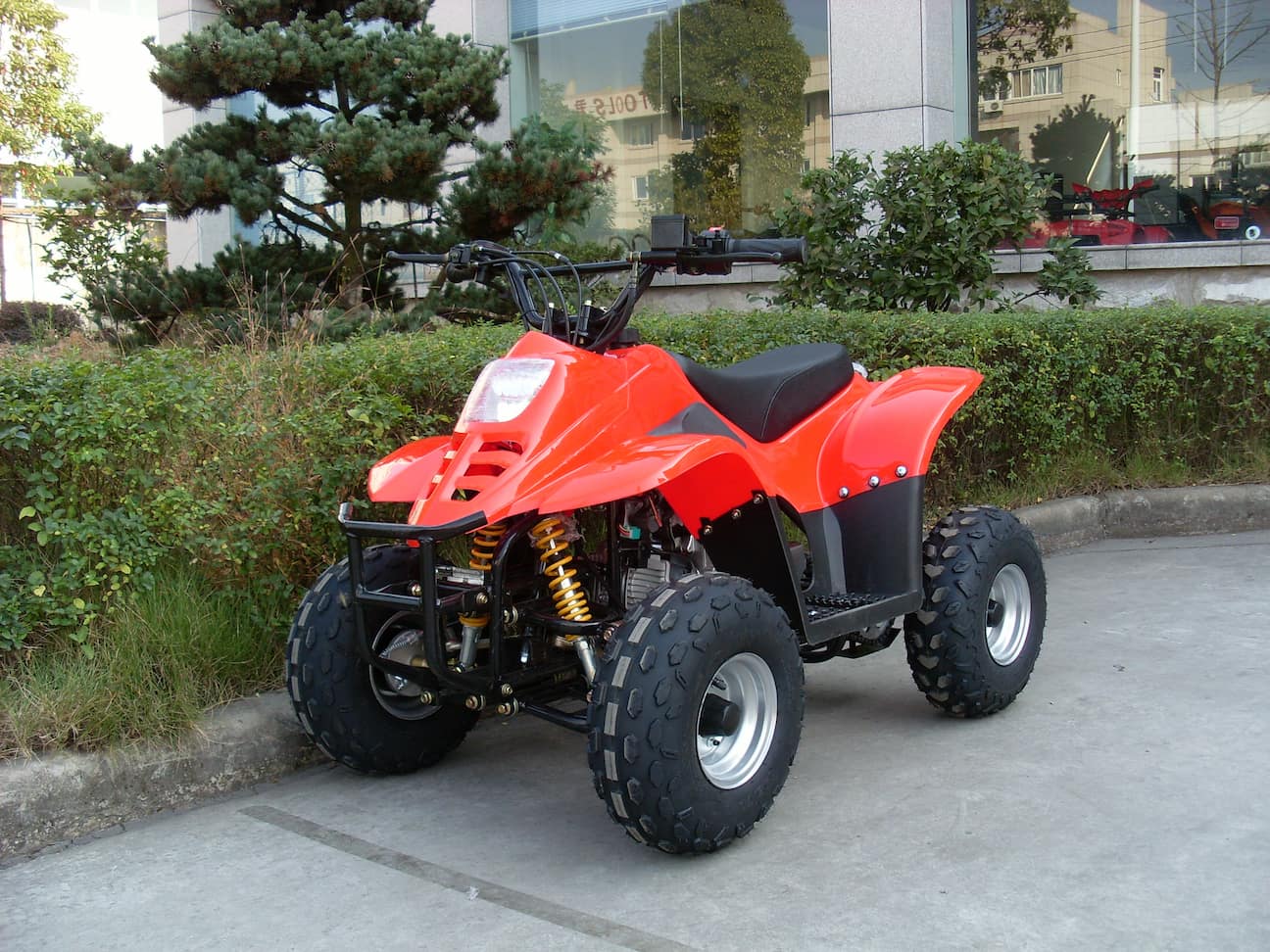

More Pictures:
