IDENTIFICATION
Model No.: JLA-14
Warranty: one year for engine, 6months for other parts
Approval: Model No. in EEC certifcate

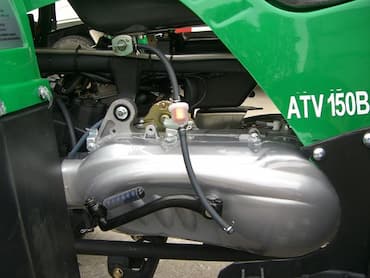

ENGINE
Cylinder: Single
Cooled System: Air
Engine Stroke: 4 Stroke
Bore*Stroke(mm): 57.4×57.8mm
Displacement(ml) : 149.6(150cc)
Max.power(kw/rpm): 7.0kw/7500rpm
Max.torque(n.m/rpm): 8.3N.m/5000rpm
Ignition Type: CDI
TRANSMISSION
Transmission Type:Automatic

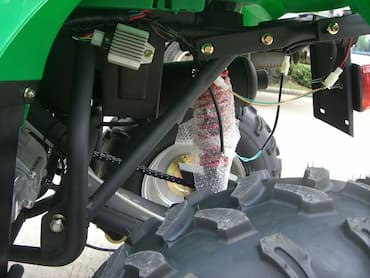

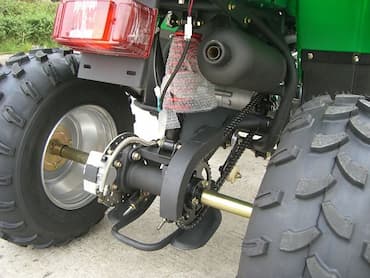

Primary Drive(Rear Wheel): Chain 4x2
Reverse:Yes
Max Speed(km/h): >60
WHEEL
Front wheel: 19X7-8
Rear wheel: 18X9.5-8
SUSPENSION
Front Suspension: Double A-Swing Arm
Rear Suspension : Swing Arm
BRAKE SYSTEM
Front brake: Drum

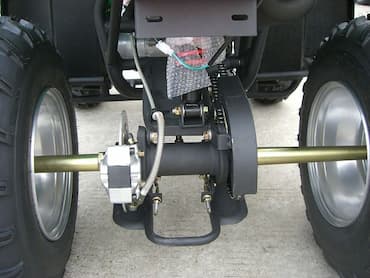

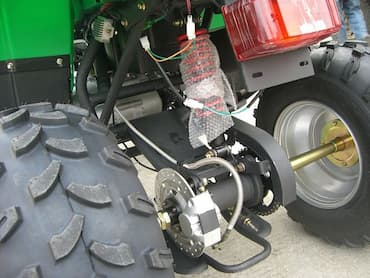

Rear brake: Disc
Braking distance : 8m(30km/h)
TECHINCAL SPECIFICATIONS
Product Dimensions(mm): 1580x880x950 mm
Ground Clearance(mm): 100
Wheelbase(mm): 1000
Mini Turning Radius(mm): 2800mm
gross weight(kgs): 173
net weight(kgs): 158
Fuel Capacity(L): 4
Fuel consumption: 3.8L/100KM
SEAT
Seat Height(mm): 750 7
Number of Seats: 1
COLOR
Standard Color: Red/Yellow/Blue/Green/Black/White
Optional Color: Green camo, Yellow camo, Snow Camo, Metallic, Carbon
LOADING
Packing Size(mm): 1490*840*750 (Steel frame inside, carton outside)
Quantity: 20FT:33PCS, 40HQ:66PCS 20FT:33PCS, 40HQ:66PCS 20FT:33PCS, 40HQ:66PCS

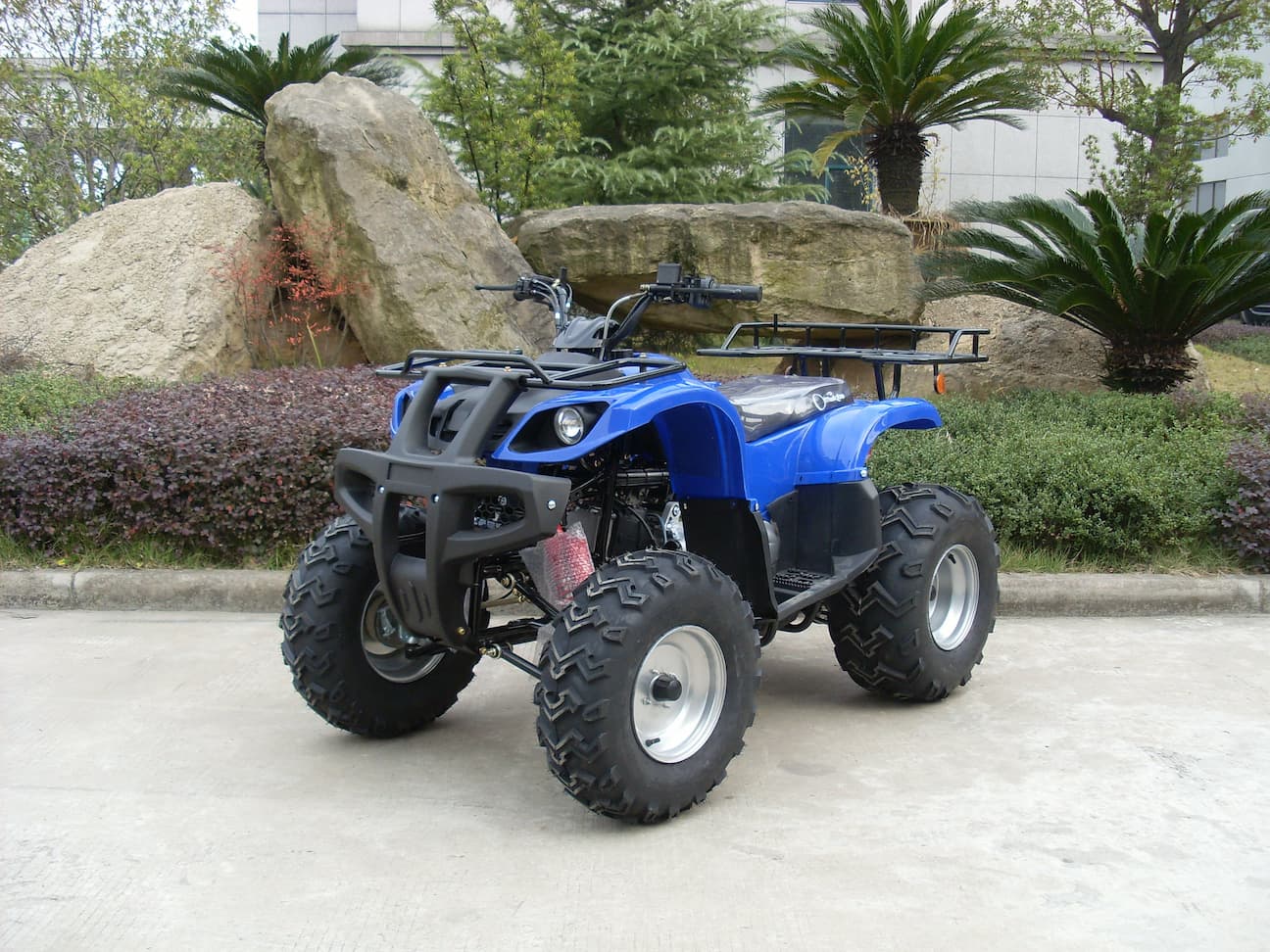

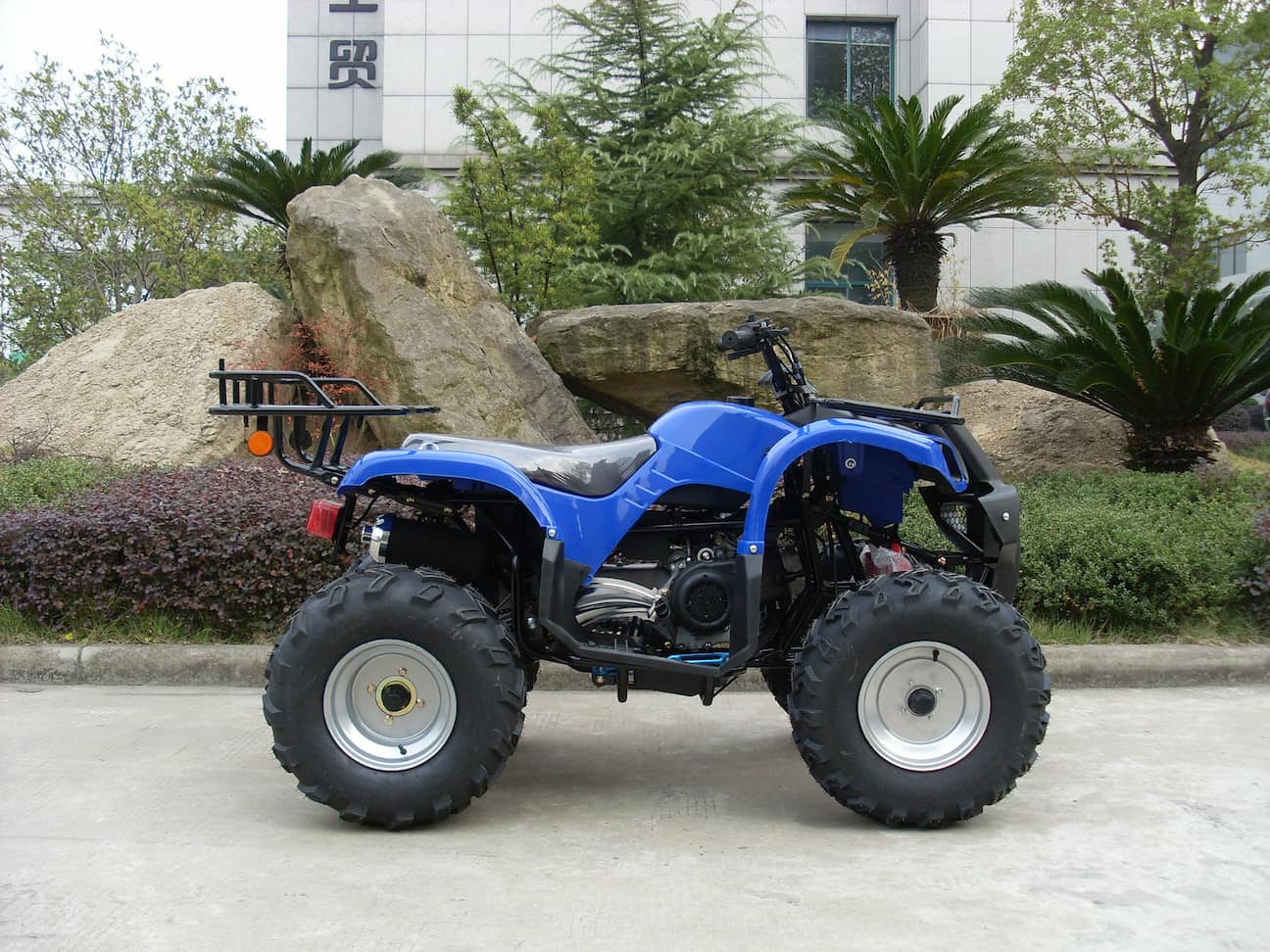

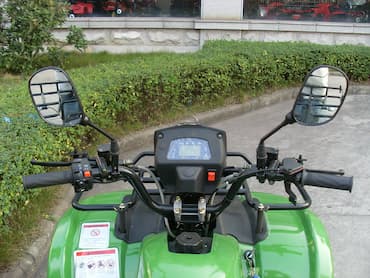

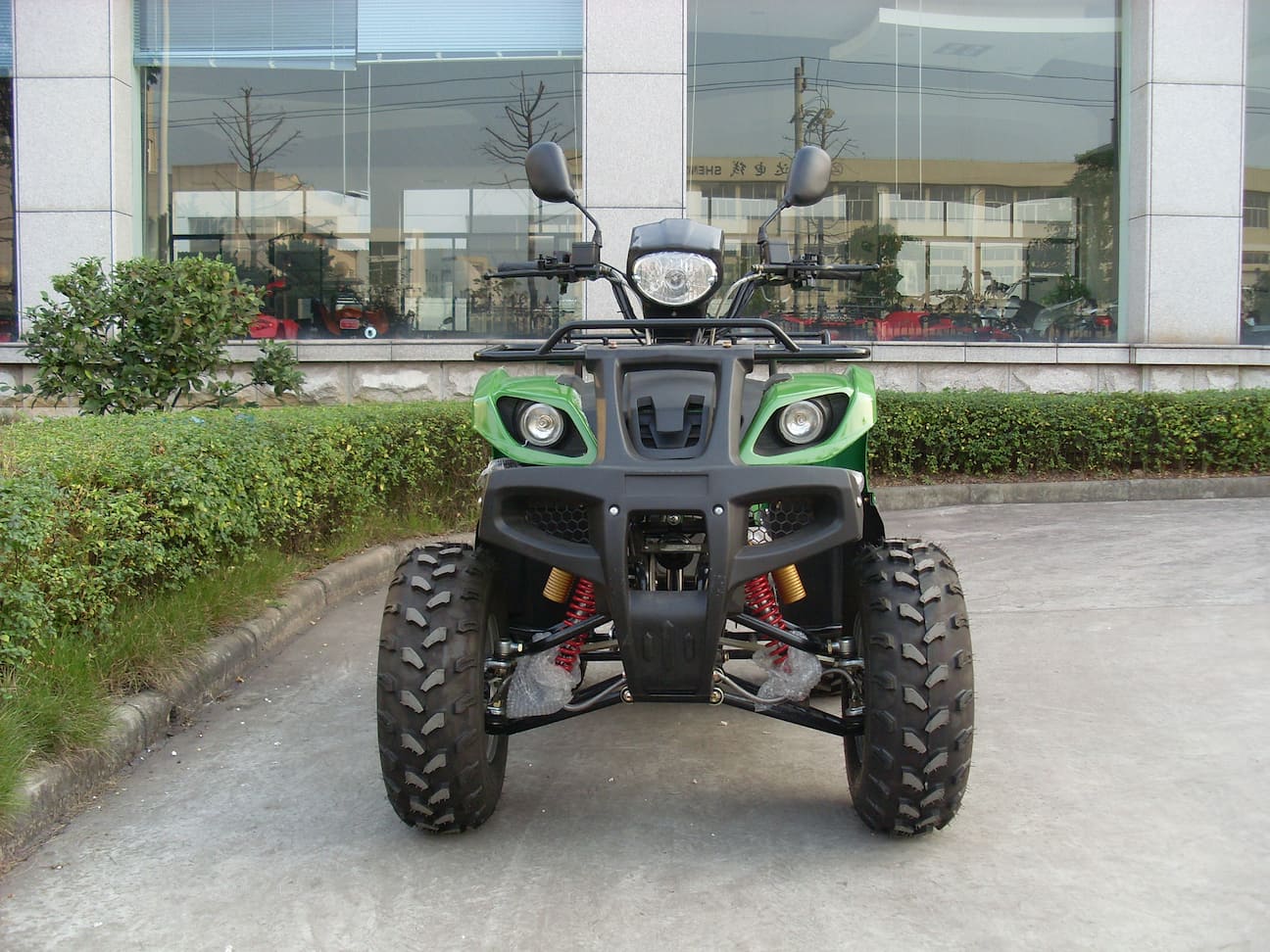

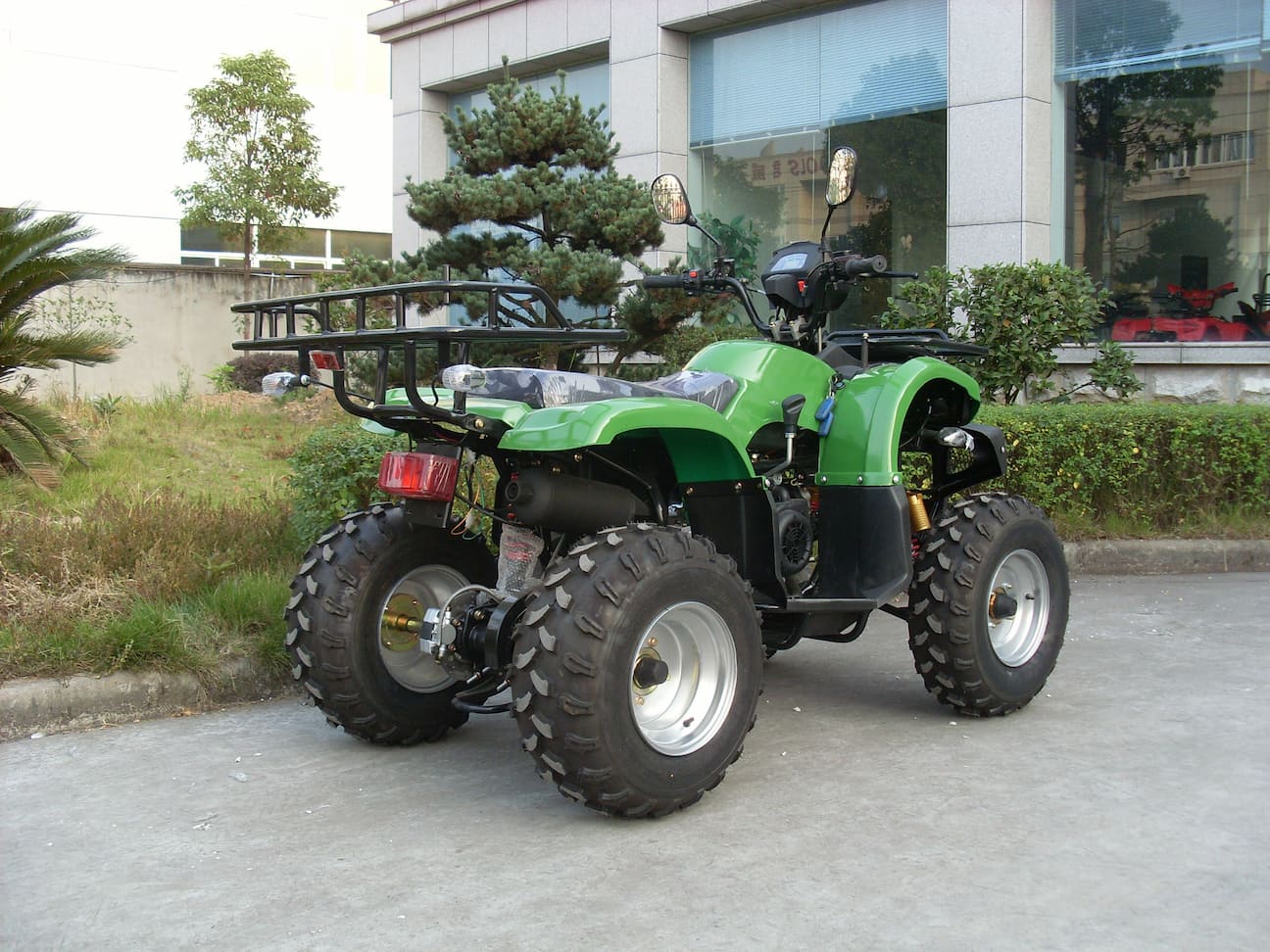

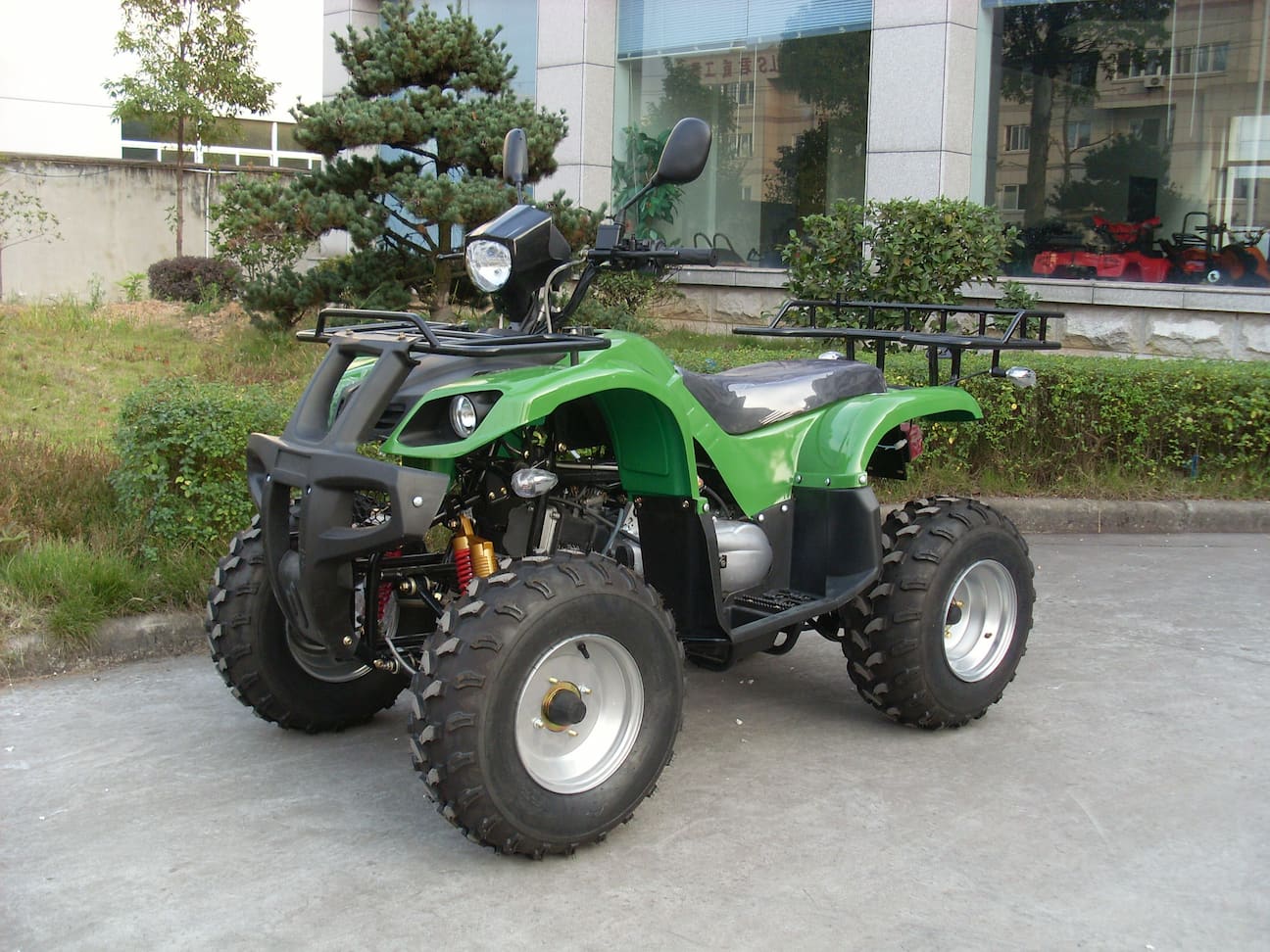

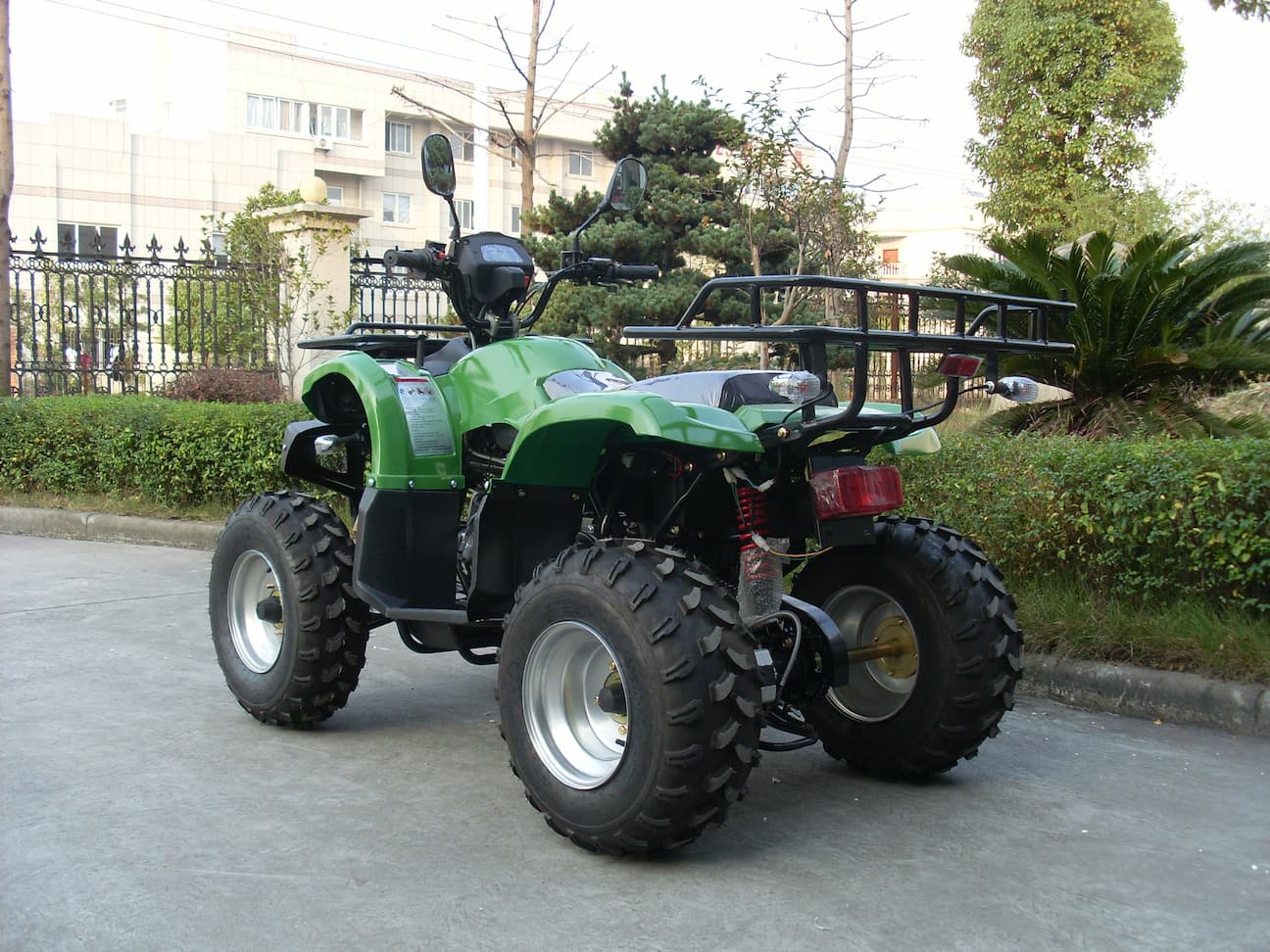

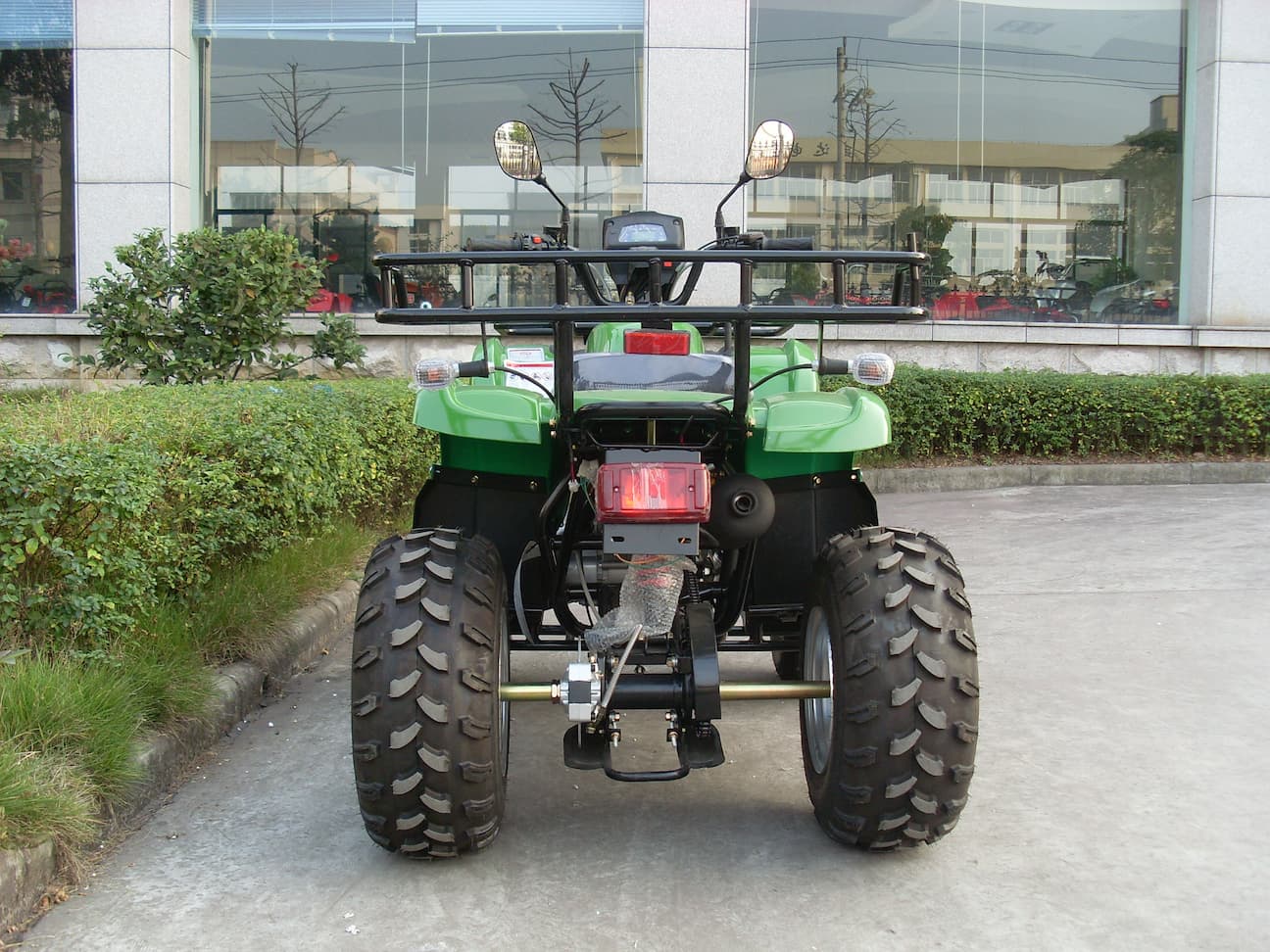

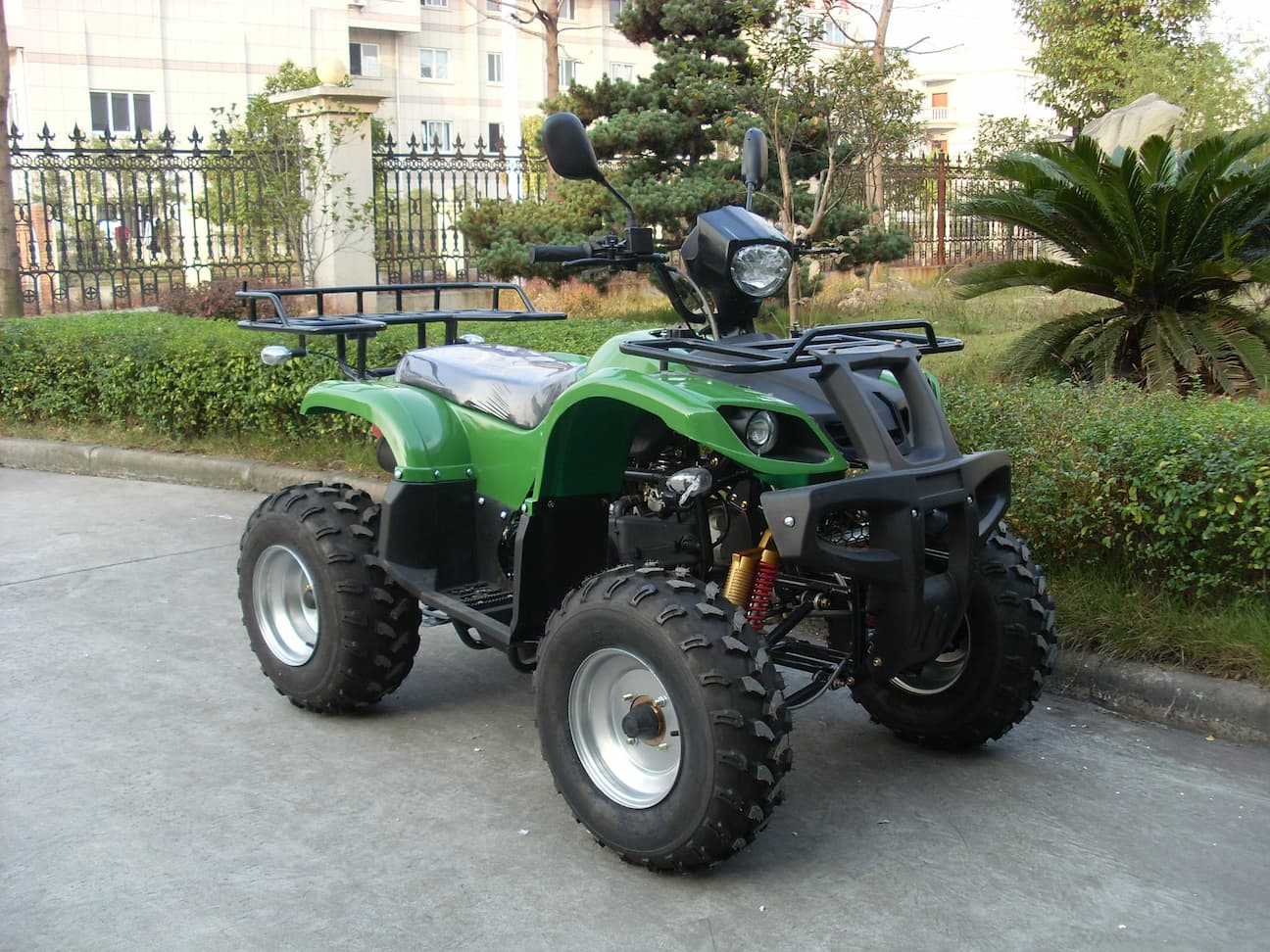

Product Details
|
|
|
|
|
|
|
|
|
|
|
|
Our Advantages
Yongkang Jinling Industry & Trade Co.,Ltd. is a professional manufacturer of various ATVs, pocket bikes, dirt bikes, electric&gas scooters,balanace scooters and mini scooters, with rich OEM/ODM experience. Well-equipped testing facilities and strong technical force also lead to such a complete and scientific quality management system. Our professional design team keeps researching and developing new products to provide the best products in this industry, ensuring our products can meet the ever-changing economic and social needs.
We have been exporting e-bikes to USA, European, South America, etc. All of our customers appreciate our quality and service.
Choose Yongkang Jinling, we can give you more
Standardization Production
Strong Team
Excellent Service
Packing
FAQ
1. What is the minimum order quantity?
The minimum order quantity is 1x20FT.
2. Can I order a sample?
Yes,You will pay 200 USD as sample fee to cover the extra costs.
3. How about quality warranty ?
our factory can offer 6 months for the plastic covers and 12 months for the engine and the vehicle frame.
4. What is your manufacture capacity?
Our factory manufacture capacity 30x40”HQ per month.150-200pcs one day.
5. What is the production and delivery time?
The production and delivery time is 20-30 days.
6. Can I become your factory products brand agent?
We would like to build agent.For this agent we have the sales quantity per year.the sales quantity must be more than 1000 pieces per year.
